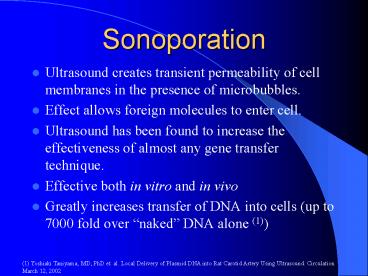

Sonoporation
  • Ultrasound creates transient permeability of cell
    membranes in the presence of microbubbles.
  • Effect allows foreign molecules to enter cell.
  • Ultrasound has been found to increase the
    effectiveness of almost any gene transfer
    technique.
  • Effective both in vitro and in vivo
  • Greatly increases transfer of DNA into cells (up
    to 7000 fold over naked DNA alone (1))

(1) Yoshiaki Taniyama, MD, PhD et. al. Local
Delivery of Plasmid DNA into Rat Carotid Artery
Using Ultrasound. Circulation March 12, 2002
2
Microbubbles
  • The key to transfection using naked DNA and
    ultrasound alone.
  • Enhance effectiveness of gene transfer using
    naked DNA
  • Air or inert gas encapsulated in a microscopic
    protein, lipid, or polymer sphere
  • Commonly used, and FDA approved, to improve
    contrast in diagnostic ultrasound
  • Example Optisontm (Octafluoropropane gas
    encapsulated in a human albumin sphere) is a
    commonly used brand of microbubble, found to be
    very effective when used for gene transfer

3
Microbubble Effects
  • The mechanism is not completely understood
  • Micrographs show bubble size to oscillate under
    ultrasound until disintegration occurs.
  • Recent research suggests a cascade of cavitation
    events initiated by microbubble collapse.

Cheri X. Deng, Fred Seiling, Hua Pan, and Jianmin
Cui. Ultrasound-Induced Membrane Porosity.
Ultrasound in Medicine and Biology 2004 Vol 30
No. 4519-526
James Chomas, Paul Dayton, Donovan May, Kathy
Ferrara. Threshold of fragmentaion for ultrasonic
contrast agents. Journal of Biomedical Optics.
April 2001 6(2)141-150
4
Microbubbles, Continued
  • 1 Mhz ultrasound results in the greatest
    expansion of microbubbles prior to destruction.
  • Cell walls show small pores following application
    of ultrasound in the presence of microbubbles

James Chomas, Paul Dayton, Donovan May, Kathy
Ferrara. Threshold of fragmentation for
ultrasonic contrast agents. Journal of Biomedical
Optics. April 2001 6(2)141-150
5
Lipids and Liposomes
  • Effectiveness enhanced by ultrasound
    irradiation(2)
  • Many types commercially available as transfection
    reagents
  • Increase transfection rates over naked pDNA
    both in vitro and in vivo
  • Liposomes can behave similarly to microbubbles
  • Little research is available on why non-liposomal
    transfection reagents are also enhanced by
    ultrasound.

(2) Shaoling Huang, et al. Combined use of
Ultrasound and Acoustic Cationic Liposomes
Results in Improved Gene Delivery into Smooth
Muscle Cells. American Society of Gene Therapy
Annual Meeting. June 2002.
6
Simplified in vitro protocol
  • Culture cells in appropriate medium
  • Construct or purchase plasmid containing gene of
    interest
  • Replace medium with serum free medium containing
    plasmid DNA and Optisontm or a lipid based
    transfection reagent
  • Apply ultrasound
  • Restore optimal growth medium

7
Simplified in vivo protocol
  • Prepare solution of plasmid DNA containing gene
    of interest and Optisontm or a lipid based
    transfection reagent
  • Inject solution into organism
  • Apply ultrasound to area of tissue or organ to be
    transfected

8
Ultrasound for drug delivery
  • Ultrasound is also an effective method of
    targeted drug delivery.
  • Drugs are encapsulated in Liposomes or
    Microbubbles
  • Application of ultrasound fragments the Liposome
    or Microbubble and drugs are released at the
    target site.

Shao-Ling Huang, David D. McPherson, Robert C.
MacDonald Acoustically Active Liposomes for
Oligonucleotide/Drug Encapsulation Delivery
Agents with Capacity for Ultasound-Triggered
Release. Molecular Therapy, Supplement 1 May 2004
9
Typical Ultrasound Parameters
  • 1 MHz is most commonly used frequency
  • Microbubbles and Liposomes show greatest relative
    expansion at 1MHz
  • Intensity of 2 W/cm2 power output or less for in
    vitro use, higher power may improve results in
    vivo
  • Exposure duration of 1 minute or less for most
    application
  • Intensity, duration and duty cycle vary greatly
    by application

10
Cell Viability
  • Cell damage is far less extensive than with
    electroporation
  • Limiting microbubble concentrations, reduces
    associated cell damage(3)
  • Membrane recovery time in healthy cells is shown
    to be as short as 3 to 10 seconds(4)

(3) Tiell Li, PhD et al. Gene Transfer with
Echo-enhanced Contrast Agents Comparison between
Albunex, Optison and Levovist in Mice-Initial
Results. Radiology November 2003
(4) Cheri X. Deng, Fred Seiling, Hua Pan, and
Jianmin Cui. Ultrasound-Induced Membrane
Porosity. Ultrasound in Medicine and Biology
2004 Vol 30 No. 4519-526
11
The Sonitron 2000
  • Designed for research
  • Dual probes allow multiple probe sizes on single
    unit
  • Power up to 5W/cm2
  • Can be customized to suit individual needs
  • Proven results in labs worldwide!

12
Wide Range of Probes
  • Probe sizes from 0.5mm to 38mm
  • Two probes per unit allows a single Sonitron to
    be used for multiple protocols

13
  • Industry leader in therapeutic ultrasound
  • 1 Year warranty, including probes and cables
  • Hardware and Application support readily
    available
  • Experienced staff to respond to your individual
    needs, including custom devices
