1

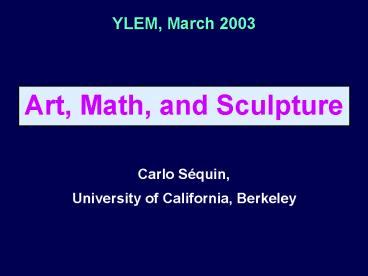

YLEM, March 2003
  • Art, Math, and Sculpture

Carlo Séquin, University of California,
Berkeley
2
I am a Designer
CCD Camera, Bell Labs, 1973 Soda Hall,
Berkeley, 1994
RISC chip, Berkeley, 1981 Octa-Gear,
Berkeley, 2000
3
Focus of Talk
  • The role of the computer in
  • aesthetic optimization,
  • the creative process.

4
Brent Collins
Hyperbolic Hexagon II
5
Leonardo -- Special Issue
On Knot-Spanning Surfaces An Illustrated Essay
on Topological Art With an Artists Statement by
Brent Collins
George K. Francis with Brent Collins
6
Brent Collins Stacked Saddles
7
Scherks 2nd Minimal Surface
Normal biped saddles
Generalization to higher-order saddles(monkey
saddle)
8
Hyperbolic Hexagon by B. Collins
  • 6 saddles in a ring
  • 6 holes passing through symmetry plane at 45º
  • wound up 6-story
    Scherk tower
  • What would happen,
  • if we added more stories ?
  • or introduced a twist before closing the ring ?

9
Closing the Loop
straight or twisted
10
Brent Collins Prototyping Process
Mockup for the "Saddle Trefoil"
Armature for the "Hyperbolic Heptagon"
Time-consuming ! (1-3 weeks)
11
Sculpture Generator I, GUI
12
A Simple Scherk-Collins Toroid
  • Parameters(genome)
  • branches 2
  • stories 1
  • height 5.00
  • flange 1.00
  • thickness 0.10
  • rim_bulge 1.00
  • warp 360.00
  • twist 90
  • azimuth 90
  • textr_tiles 3
  • detail 8

13
A Scherk Tower (on its side)
  • branches 7
  • stories 3
  • height 0.2
  • flange 1.00
  • thickness 0.04
  • rim_bulge 0
  • warp 0
  • twist 0
  • azimuth 0
  • textr_tiles 2
  • detail 6

14
1-story Scherk Tower
  • branches 5
  • stories 1
  • height 1.35
  • flange 1.00
  • thickness 0.04
  • rim_bulge 0
  • warp 58.0
  • twist 37.5
  • azimuth 0
  • textr_tiles 8
  • detail 6

15
180º Arch Half a Scherk Toroid
  • branches 8
  • stories 1
  • height 5
  • flange 1.00
  • thickness 0.06
  • rim_bulge 1.25
  • warp 180
  • twist 0
  • azimuth 0
  • textr_tiles e
  • detail 12

16
V-art
VirtualGlassScherkTowerwith MonkeySaddles(R
adiance 40 hours) Jane Yen
17
How to Obtain a Real Sculpture ?
  • Prepare a set of cross-sectional blue printsat
    equally spaced height intervals,corresponding
    to the board thickness that Collins is using
    for the construction.

18
Collins Fabrication Process
Wood master patternfor sculpture
Layered laminated main shape
Example Vox Solis
19
Slices through Minimal Trefoil
50
10
23
30
45
5
20
27
35
2
15
25
20
Profiled Slice through the Sculpture
  • One thick slicethru Heptoroidfrom which Brent
    can cut boards and assemble a rough
    shape.Traces represent top and bottom,as
    well as cuts at 1/4, 1/2, 3/4of one board.

21
Emergence of the Heptoroid (1)
Assembly of the precut boards
22
Emergence of the Heptoroid (2)
Forming a continuous smooth edge
23
Emergence of the Heptoroid (3)
Smoothing the whole surface
24
The Finished Heptoroid
  • at Fermi Lab Art Gallery (1998).

25
SFF (Solid Free-form Fabrication)
Monkey- Saddle Cinquefoil
26
Fused Deposition Modeling (FDM)
27
Zooming into the FDM Machine
28
Various Scherk-Collins Sculptures
29
Part II
Developing Parameterized Sculpture
Families (Extending a Paradigm)
30
Family of Symmetrical Trefoils
W2
W1
B1 B2 B3
B4
31
Close-up of Some Trefoils
B1 B2
B3
Varying the number of branches, the order of the
saddles.
32
Higher-order Trefoils (4th order saddles)
W1 (Warp)
W2 ?
33
Exploring New Ideas W2
  • Going around the loop twice ...

resulting in an interwoven structure.
34
9-story Intertwined Double Toroid
Bronze investment casting from wax original
made on 3D SystemsThermojet
35
Note
The computer becomesan amplifier /
acceleratorfor the creative process.
36
Another Extension
  • Allow different kinds of stretching

37
Totem_2
38
Cohesion
  • Use more durable materials bronze !

39
Minimal Trefoils -- cast and finished by Steve
Reinmuth
40
Steve Reinmuth
41
Brent Collins Pax Mundi
A new inspiration!
42
Keeping up with Brent ...
  • Sculpture Generator I can only do warped Scherk
    towers,not able to describe a shape like Pax
    Mundi.
  • Need a more general approach !
  • Use the SLIDE modeling environment(developed at
    U.C. Berkeley by J. Smith)to capture the
    paradigm of such a sculpturein a procedural
    form.
  • Express it as a computer program
  • Insert parameters to change salient aspects /
    features of the sculpture
  • First Need to understand what is going on ?

43
Part III
The Creative Step (Capturing a Paradigm)
44
Sculptures by Naum Gabo
  • Pathway on a sphere
  • Edge of surface is like seam of tennis ball
  • ? 2-period Gabo curve.

45
2-period Gabo Curve
  • Approximation with quartic B-splinewith 8
    control points per period,but only 3 DOF are
    used.

46
4-period Gabo Curve
  • Same construction as for a 2-period curve

47
Pax Mundi Revisited
  • Can be seen as Amplitude modulated, 4-period
    Gabo curve

48
SLIDE-UI for Pax Mundi Shapes
49
Via Globi 3 (Stone)
Wilmin Martono
50
Via Globi 5 (Wood)
Wilmin Martono
51
Viae Globi Family (Roads on a Sphere)
L2 L3 L4
L5
52
Extending the Paradigm
  • Try to Expand the Sculpture Family
  • Aim for more highly convoluted paths,
  • maintain high degree of symmetry.
  • Need a better tool to draw on sphere

53
Circle Splines on the Sphere
  • Examples from Jane Yens Editor Program
  • ( another piece of scaffolding)

54
Maloja (FDM part)
  • A rather winding Swiss mountain pass road in the
    upper Engadin.

55
Stelvio
  • An even more convoluted alpine pass in Italy.

56
Altamont
  • Celebrating American multi-lane highways.

57
Lombard
  • A very famous crooked street in San Francisco
  • Note that I switched to a flat ribbon.

58
Another Extension
  • Using different cross sections for the sweep.

59
Part IV
  • How to make a really large sculpture ?
  • Scaling-up problems
  • Production problems
  • Engineering problems
  • Installation problems
  • Maintenance problems
  • Insurance problems
  • ? Need a Commission !

60
The Poor Mans Opportunity Snow-Sculpting!Annua
l Championships in Breckenridge, CO
61
Stan Wagon, Macalester College, St. Paul, MN
  • Leader of Team USA Minnesota

62
Helaman Ferguson
  • Umbilic Torus Costa Surface

63
Breckenridge, 1999
  • Helaman Ferguson Invisible Handshake

64
Robert Longhurst
  • Moebius Band Enneper Surface

65
Breckenridge, 2000
  • Robert Longhurst
  • Rhapsody in White
  • 2nd Place

66
Breckenridge,2001
  • Robert Longhurst
  • White Narcissus

67
Batsheba Grossman
  • Antipot Antichron

68
Breckenridge, 2002
  • Bathsheba Grossman
  • A Twist in Time
  • Honorable Mention
  • Expressive Impact

69
Breckenridge, 2003
  • Brent Collins and Carlo Séquin
  • are invited to join the team
  • and to provide a design.
  • Other Team Members
  • Stan Wagon, Dan Schwalbe, Steve Reinmuth

70
Collins Initial Suggestion Minimal Trefoil
  • Stans Objection Too simple we know we can
    do this.No risk no fun !

71
Monkey Saddle Trefoil
  • from Sculpture Generator I

72
Maquettes
  • 3D-Print FDM

73
Name, Story
  • Snow Flower, Winter Rose, Winter Whirl, Wild
    White Whirl, Webbed Wild Whirl, Whirled Wild
    Web
  • finally the perfect homonym
    Whirled White Web
  • Like this global network, the ridges of our
    sculpture span the outer perimeters of the whole
    globe, and at the same time come close
    together in the central hole. It illustrates how
    the WWW can link together people from all over
    the world.

74
ACCEPTED !
  • Now how do we get this design into a
    10x10x12 block of snow ?

75
Construction Drawings
  • Top View Side View
    Axial View

Remove these prisms first!
76
Day 1
Removing lots of snow
77
Day 1 The Monolith
  • Cut away prisms

78
Day 2 Making a Torus
  • Mark center, circles
    Bulls-eye !

79
(No Transcript)
80
Chipping away
81
(No Transcript)
82
Tools, Templates
83
Making a Torus
  • Use of template Need for a sun shield

84
End of Day 2
  • The Torus

85
Day 3, am Drawing Flanges
86
Day 3, pm Carving the Flanges, Holes
87
End of Day 3 Proper Topology
88
Day 4 Geometry Refinement
89
(No Transcript)
90
End of Day 4 Desired Geometry
91
Day 5, am Surface Refinement
92
House Cleaning
93
Whirled White Web
Ready for inspection, judging
94
(No Transcript)
95
Official Team Photo
96
1240 pm
97
1241 pm
98
1250 pm
99
3 pm
100
The Winners
  • 1st Canada B.C., 2nd USA
    Minnesota, 3rd USA Breckenridge

sacred geometry very intricate very 21st
century !
101
(No Transcript)
102
4 pm
103
British Columbia Winter Comes
104
(No Transcript)
105
Team Breckenridge (3rd Place)
Day 2 Day
3
106
Team Breckenridge A Fishing Tail
107
Mexico City Capilla Posa
108
China The Love of Mother
109
Quebec RèveOlution
110
Manitoba Birth of a Nation
111
USA New York 94 Hour Photo
112
(No Transcript)
