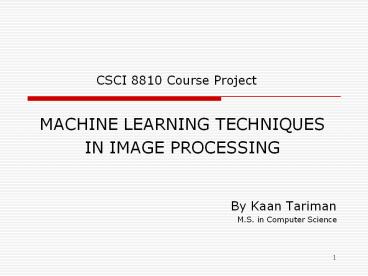

MACHINE LEARNING TECHNIQUES IN IMAGE PROCESSING
CSCI 8810 Course Project

• By Kaan Tariman
• M.S. in Computer Science

2
Outline

• Introduction to Machine Learning
• The example application
• Machine Learning Methods
• Decision Trees
• Artificial Neural Networks
• Instant Based Learning

3
What is Machine Learning

• Machine Learning (ML) is constructing computer
  programs that develop solutions and improve with
  experience
• Solves problems which can not be solved by
  enumerative methods or calculus-based techniques
• Intuition is to model human way of solving some
  problems which require experience
• When the relationships between all system
  variables is completely understood ML is not
  needed

4
A Generic System
Input Variables
Hidden Variables
Output Variables
5
Learning Task

• Face recognition problem Whose face is this in
  the picture?
• Hard to model describing face and its components
• Humans recognize with experience The more we see
  the faster we perceive.

6
The example

• Vision module for Sony Aibo Robots that we have
  developed for Legged Robot Tournament in RoboCup
  2002.
• Output of the module is distance and orientation
  of the target objects
• the ball,
• the players
• the goals
• the beacons - used for localization of the robot.

7
Aibos View
8
Main ML Methods

• Decision Trees
• Artificial Neural Networks (ANN)
• Instant-Based Learning
• Bayesian Methods
• Reinforcement Learning
• Inductive Logic Programming (ILP)
• Genetic Algorithms (GA)
• Support Vector Machines (SVM)

9
Decision Trees

• Approximation of discrete functions by a decision
  tree.
• In the nodes of trees are attributes and in the
  leaves are values of discrete function
• Ex A decision tree for play tennis

10
Algorithm to derive a tree

• Until each leaf node is populated by as
  homogeneous a sample set as possible
• Select a leaf node with an inhomogeneous sample
  set.
• Replace that leaf node by a test node that
  divides the inhomogeneous sample set into
  minimally inhomogeneous subsets, according to an
  entropy calculation.

11
Color Classification

• Data set includes pixel values labeled with
  different colors manually
• The tree classifies a pixel to a color according
  to its Y,U,V values.
• Adaptable for different conditions.

12
How do we construct the data set?

• 1) Open an image taken by the robot

13
How do we construct the data set?

• 2) Label the pixels with colors
• Y,U,V,color entries are created for each pixel
  labeled

14
How do we construct the data set?

• 3) Use the ML method and display results

15
The decision tree output

• The data set is divided into training and
  validation set
• After training the tree is evaluated with
  validation set.
• Training should be done carefully, avoiding bias.

16
Artificial Neural Networks (ANN)

• Made up of interconnected processing elements
  which respond in parallel to a set of input
  signals given to each

17
ANN Algorithm

• Training algorithm adjusts the weights reducing
  the error between the known output values and the
  actual values
• At first, the outputs are arbitrary.
• As cases are reintroduced repeatedly ANN gives
  more right answers.
• Test set is used to stop training.
• ANN is validated with unseen data (validation
  set)

18
ANN output for our example
19
Face Recognition with ANN

• Problem Orientation of face
• Input nodes are pixel values of the image. (32 x
  32)
• Output has 4 nodes (right, left, up, straight)
• 6 hidden nodes

20
Face Recognition with ANN

• Hidden nodes normally does not infer anything, in
  this case we can observe some behavior.

21
Instance Based Learning

• A learn-by-memorizing method K-Nearest Neighbor
• Given a data set Xi, Yi it estimates values of
  Y for X's other than those in the sample.
• The process is to choose the k values of Xi
  nearest the X and average their Y values.
• Here k is a parameter to the estimator. The
  average could be weighted, e.g. with the closest
  neighbor having the most impact on the estimate.

22
KNN facts

• Database of knowledge about known instances is
  required memory complexity
• Lazy learning, no model for the hypothesis
• Ex Color classification
• A voting method is applied in order to output a
  color class for the pixel.

23
Summary

• Machine Learning is an interdisciplinary field
  involving programs that improve by experience
• ML is good for pattern recognition, object
  extraction and color classification etc. problems
  in image processing problem domain.
• 3 methods are considered
• Decision Trees
• Artificial Neural Networks
• Instant Based Learning

24
Thank you!
