Title: TPS54331 3'5 to 28V Input 3A DCDC Converter


1

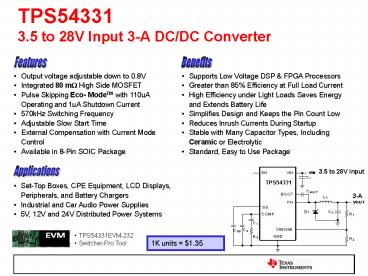

TPS543313.5 to 28V Input 3-A DC/DC Converter
Features
Benefits
  • Output voltage adjustable down to 0.8V
  • Integrated 80 m? High Side MOSFET
  • Pulse Skipping Eco- ModeTM with 110uA Operating
    and 1uA Shutdown Current
  • 570kHz Switching Frequency
  • Adjustable Slow Start Time
  • External Compensation with Current Mode Control
  • Available in 8-Pin SOIC Package
  • Supports Low Voltage DSP FPGA Processors
  • Greater than 85 Efficiency at Full Load Current
  • High Efficiency under Light Loads Saves Energy
    and Extends Battery Life
  • Simplifies Design and Keeps the Pin Count Low
  • Reduces Inrush Currents During Startup
  • Stable with Many Capacitor Types, Including
    Ceramic or Electrolytic
  • Standard, Easy to Use Package

Applications
  • Set-Top Boxes, CPE Equipment, LCD Displays,
  • Peripherals, and Battery Chargers
  • Industrial and Car Audio Power Supplies
  • 5V, 12V and 24V Distributed Power Systems
  • TPS54331EVM-232
  • Switcher-Pro Tool

1K units 1.35
2
TPS54331 Competition
