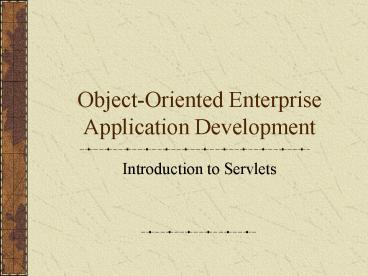

Object-Oriented Enterprise Application Development

1
Object-Oriented Enterprise Application Development

• Introduction to Servlets

2
Topics

• During this class we will examine
• Motivation
• Require packages
• Classes
• Lifecycle

3
Web Applications
4
Development Approaches

• In the past few years, many alternative
  technologies have been presented for web
  application development
• CGI
• Proprietary APIs
• Server-Side JavaScript
• Microsoft ASPs
• Java Servlets

5
CGI(1 of 2)

• In a CGI application, each client request
  executes a program on the server.
• These are typically written in C, C or Perl.
• Could be embedded within a web server and thus
  didn't require any new software.

6
CGI(2 of 2)

• While this satisfies the requirement for dynamic
  content, there are potential problems
• Starting a new process is expensive
• Poorly written code is a significant security
  hazard.
• Difficult to communicate between the CGI program
  and the client.

7
Proprietary APIs

• Many vendors offered proprietary APIs
• Netscape NSAPI
• Microsoft ISAPI
• O'Reilly WSAPI
• Since they're proprietary, you're binding your
  architecture to a particular vendor.

8
Server-Side JavaScript

• This is JavaScript that's placed into precompiled
  HTML pages and then executed on the server.
• Improved performance.
• Improved security.
• Only a few products actually support this
  technique.

9
Microsoft ASP

• This is similar to server-side JavaScript, but
  the code isn't precompiled.
• This technique is tied to the Microsoft IIS
  application server or other products where it's
  an add-on module.

10
Enterprise Java

• As opposed to investing in proprietary
  techniques, many vendors have started backing the
  use of enterprise Java.
• Java has a well-defined API.
• Java has been widely accepted by the industry for
  its portability.
• This will be the focus of this course.

11
Servlet Background
12
Servlets Defined

• Java servlets are precompiled Java programs that
  are executed on a server.
• Servlets are installed in a web container that is
  responsible for locating, loading, and executing
  the servlet when an appropriate request is issued.

13
Essential Benefits

• Because they're written in Java and executed on
  the server, servlets provide
• Efficiency
• Persistence
• Portability
• Robustness
• Extensibility
• Security

14
Efficiency(1 of 2)

• Servlets are loaded and initialized only once
  when the servlet engine receives the first
  request for that servlet.
• Servlet engines automatically multi-thread each
  servlet.
• There is only a single instance of any given
  servlet in memory. Each request for that servlet
  is a new thread that shares the servlet instance.

15
Efficiency(2 of 2)

• Many web servers load balance servlet requests
  across multiple physical servers to improve
  performance.
• This results in better performance and fault
  tolerance.

16
Persistence(1 of 2)

• Servlets can hold data that spans across the
  various requests received by various clients.
• This can improve performance by treating each
  servlet as a singleton.
• This persistent data is lost if the servlet
  engine unloads the servlet class from memory.

17
Persistence(2 of 2)

• This persistence mechanism doesn't provide
  session persistence for each client.
• This means that applications built on the
  familiar "shopping cart" metaphor must use a
  different approach to persist the data for a
  specific user of that application.
• We'll address this technique during the next
  lecture.

18
Portability

• Because the servlets are written in pure Java,
  they can be moved into any environment that
  supports servlets.
• Always make sure you confirm the version of the
  JDK that you used to write your servlets as well
  as the version of the servlet specification.

19
Robustness

• Because servlets are written in Java, they have
  access to the entire JDK.
• This includes all inherent Java capabilities such
  as inheritance, polymorphism, and exception
  handling.

20
Extensibility

• Like all other classes, we can design servlets
  that are base classes that provide basic
  functionality.
• We can then inherit from these base servlets to
  provide additional functionality.
• This allows the use of relevant design patterns
  such as template method or command.

21
Security

• Because servlets are executed on the server, the
  client never gains access to the code.
• Servlets can also take advantage of the security
  manager and cryptography classes.
• There is also code security a servlet that
  terminates abnormally usually won't crash the
  servlet engine.

22
Servlet Lifecycle
23
Servlet Lifecycle(1 of 4)

• All servlets follow the same lifecycle.
• The init() method is called when the servlet
  class is first loaded by the servlet engine.
• The service() method is called each time the
  servlet is requested by a client.
• The destroy() method is called just before the
  servlet engine unloads the servlet class from
  memory.

24
Servlet Lifecycle(2 of 4)

• The init() method is where a servlet's life
  begins.
• This method is only called when the servlet class
  is loaded by the servlet engine.
• If you override this method be sure to call the
  parent class' init() method.
• This makes the init() method useful for doing
  one-time servlet configuration.

25
Servlet Lifecycle(3 of 4)

• The service() method is where a servlet spends
  most of its life.
• This method is invoked one (1) time for each
  client request made to the servlet.
• This method typically acts as a dispatcher by
  interrogating the client's request and acting on
  the data it finds there.

26
Servlet Lifecycle(4 of 4)

• The destroy() method is where a servlet's life
  ends.
• This method is only called when the servlet class
  is unloaded by the servlet engine.
• If you override this method be sure to call the
  parent class' destroy() method.
• This makes the destroy() method useful for doing
  one-time servlet cleanup.

27
Servlets Java
28
Required Packages(1 of 2)

• Servlets are included in J2EE or in the J2SDK as
  an additional download.
• The are two (2) packages required for servlets
• javax.servlet.
• javax.servlet.http.

29
Required Packages(2 of 2)

• The javax.servlet package provides the basic
  interfaces that must be implemented and extended
  by all servlets.
• The javax.servlet.http package provides the key
  classes used to construct servlet-based
  applications using the HTTP protocol.

30
Servlets

• At the heart of each servlet is the Servlet
  interface containing the following methods
• destroy
• getServletConfig
• getServletInfo
• init
• service

31
Generic Servlets

• For non-HTTP based servlets, we inherit from the
  GenericServlet class.
• GenericServlets provide default implementations
  for the init() and destroy() methods. However,
  servlets inherited from this class must implement
  the service() method.

32
Generic Requests

• When a request is issued to the servlet, we must
  be able to process that request.
• This may require the parsing of arguments or
  other complex actions specific to our
  implementation.
• In the generic case this means that we need to
  construct a class that implements the
  ServletRequest interface.

33
Generic Responses

• Once the servlet has completed its work, it needs
  to send any results back to the client who made
  the original request.
• In the generic case this means that we need to
  construct a class that implements the
  ServletResponse interface.

34
Generic Dispatchers

• Sometimes we may want to delegate a request made
  to one servlet to an entirely different servlet.
• This is accomplished using a class that
  implements the RequestDispatcher interface.

35
HTTP Servlets

• For HTTP based servlets, we inherit from the
  HttpServlet class.
• This class provides a default service() method
  that we won't usually override.
• This method knows how to parse requests made
  using the HTTP protocol.

36
Sample Code HelloWorld(1 of 2)

1. import java.io.
2. import javax.servlet.
3. import javax.servlet.http.
4. public class HelloWorld extends HttpServlet
5. public void doGet(HttpServletRequest rqst,
   HttpServletResponse resp) throws
   IOException, ServletException
6. resp.setContentType("text/html")
7. PrintWriter out new PrintWriter(
   resp.getOutputStream() )

37
Sample Code HelloWorld (2 of 2)

1. out.println("ltHTMLgt")
2. out.println("ltHEADgt")
3. out.println("ltTITLEgt")
4. out.println("HelloWorld")
5. out.println("lt/TITLEgt")
6. out.println("lt/HEADgt")
7. out.println("ltBODYgt")
8. out.println("ltPgtHello, World!lt/Pgt")
9. out.println("lt/BODYgt")
10. out.println("lt/HTMLgt")
11. out.close()

38
HTTP Servlet Anatomy(1 of 2)

• The HelloWorld servlet illustrates some of the
  key servlet elements.
• The servlet extends the HttpServlet class.
• The doGet() method accepts two (2) arguments and
  throws two (2) exceptions.

39
HTTP Servlet Anatomy(2 of 2)

• But how is doGet() invoked?
• The answer lies in the default implementation of
  the service() method within the HttpServlet
  class.
• When a GET request is received, the service()
  method automatically invokes the doGet() method.

40
Initialization Parameters
41
Justification

• Sometimes we want to initialize a servlet when
  it's first loaded by the servlet engine.
• For instance, we might want to load some
  configuration settings before allowing processing
  to continue.
• This can be useful for testing when you don't
  want to configure a web page to initiate the test.

42
Technique

• We can embed such values in the application's
  web.xml file.
• We access these values within the servlet's
  init() method when it is first loaded.
• To access these initialization parameters we use
  the getInitParameter() method on the
  ServletConfig reference passed to the init()
  method.

43
Sample Code Message(1 of 2)

1. import java.io.
2. import javax.servlet.
3. import javax.servlet.http.
4. public class Message extends HttpServlet
5. private String msg null
6. public void init( ServletConfig cfg ) throws
   ServletException
7. super.init( cfg )
8. msg cfg.getInitParameter("msg")
9. if ( msg null)
10. msg "no.message.specified"

44
Sample Code Message(2 of 2)

• resp.setContentType("text/html")
• PrintWriter out new PrintWriter(
  resp.getOutputStream() )
• out.println("ltHTMLgtltHEADgtltTITLEgt")
• out.println("Message")
• out.println("lt/TITLEgtlt/HEADgt")
• out.println("ltBODYgt")
• out.println("ltPgt" msg "lt/Pgt")
• out.println("lt/BODYgtlt/HTMLgt")
• out.close()

45
Servlet Pitfalls
46
Local Data Members(1 of 3)

• In the Message servlet, I declared a local data
  member called msg.
• With regular classes, this data member would be
  specific to each object.
• For servlets, this data member is shared across
  all requests made to the Message servlet.

47
Local Data Members(2 of 3)

• This means that we can't use local data members
  to store user- or session-specific data.
• Each new access to that data may result in the
  value being changed. This change will affect all
  users of that servlet.
• However, such data members are useful if the
  value in question is meant to be a constant.

48
Local Data Members(3 of 3)

• To pass the various data members between methods
  within the servlet, we are forced to adopt the
  approach of using an aggregate class.
• This could be something as simple as using a Java
  Collection class.
• We could also devise our own custom class.

49
Review

• During this class we have discussed
• Motivation
• Require packages
• Classes
• Lifecycle

50
Resources

• Developing Java ServletsJames Goodwill, Sam's
  Publishing, 1999.ISBN 0-672-31600-5
• Core Servlets and JavaServer PagesMarty Hall,
  Prentice-Hall, Inc., 2000.ISBN 0-13-089340-4
• Java 2 Platform, Enterprise EditionB. Shannon,
  et al., Addison-Wesley, 2000.ISBN 0-201-70456-0

51
Coming Attractions

• Next week we'll look at servlets in greater depth
  including how to invoke them from an HTML page
  and how to implement the "shopping cart"
  metaphor.
• Please read Chapters 3 9 in your text.
