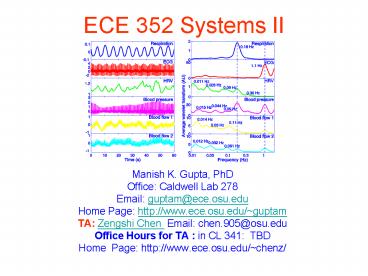

ECE 352 Systems II

1
ECE 352 Systems II

• Manish K. Gupta, PhD
• Office Caldwell Lab 278
• Email guptam_at_ece.osu.edu
• Home Page http//www.ece.osu.edu/guptam
• TA Zengshi Chen Email chen.905_at_osu.edu
• Office Hours for TA in CL 341  TBD
• Home Page http//www.ece.osu.edu/chenz/

2
Acknowledgements

• Various graphics used here has been taken from
  public resources instead of redrawing it. Thanks
  to those who have created it.
• Thanks to Brian L. Evans and Mr. Dogu Arifler
  (some of their slides are used here)
• Thanks to Randy Moses and Bradley Clymer

3
Course Web Page http//www.ece.osu.edu/guptam/p
ublic_html/home/courses/ece352/index.html
4
Tentative Outline

• Frequency Response and Sampling Review 2
  Chapter 5
• Laplace Transforms 6 Chapter 8
• Transfer functions, stability and step
  responses 3 Chapter 9
• Z-Transforms 5 Chapter 11
• Transfer functions, stability and step responses
  (DT) 3 Chapter 11
• State variable descriptions 5 Chapter
  13
• Applications to Communications, Control and
  Signal Processing 4
• selected topics from Chapters 6, 10, and 12
• A more detailed tentative time line is at
• http//www.ece.osu.edu/guptam/public_html/home/co
  urses/ece352/timeline.pdf

5
References Other Linear Systems Texts

• Haykin and Van Veen, Signals and Systems, Wiley,
  1999.
• Oppenheim and Willsky, Signals and Systems,
  Prentice-Hall, 1997.
• Lindner, Introduction to Signals and Systems,
  McGraw-Hill, 1999.
• Phillips and Paar, Signals, Systems, and
  Transforms, 2nd ed.,Prentice-Hall, 1999.
• Study Guides
• Hsu, Schaum's Outline of Theory and Problems of
  Signals and Systems, McGraw-Hill, 1995.

6
References on Matlab

• The Mathworks, Inc., The Student Edition of
  Matlab, Prentice-Hall.
• Biran and Breiner, Matlab for Engineers
  Addison-Wesley, 1995.
• This is a good elementary introduction to Matlab.

• Hanselman and Littlefield, Mastering MATLAB 6 A
  Comprehensive Tutorial and Reference, Prentice
  Hall, 2001.
• This is an excellent reference for both beginners
  and advanced users, with helpful hints on how to
  do many elemenatry and advanced operations in
  Matlab.

7
Other Tentative Plans

• Grading The tentative grading schedule is as
  follows
• Midterm 1 25
• Midterm 2  25
• Homework and /Projects 15
• Final 35
• Homework and / OR Projects Homework will be
  assigned regularly in class (Type I II)
• Homework is considered an integral part of this
  course, and you are expected to work all homework
  assignments. Homework will include computer
  assignments that use Matlab.
• Type I home works you have to submit in time.
  Late homework or projects will receive a grade of
  zero.
• Type II home work (class home work No submission
  ? )
• Attendance You are responsible for all
  assignments, changes of assignments,
  announcements, and other course-related events
  which occur in class.

8

• Please Complete First Day Survey and
• Enjoy the class !
• Any Questions ?

9
What is Signal ?
10
What is System ?
11
Audio CD Samples at 44.1 kHz

• Human hearing is from about 20 Hz to 20 kHz
• Sampling theorem (We will cover this later)
  sample analog signal at a rate of more than twice
  the highest frequency in the analog signal
• Apply a filter to pass frequencies up to 20 kHz
  (called a lowpass filter) and reject high
  frequencies, e.g. a coffee filter passes water
  through but not coffee grounds
• Lowpass filter needs 10 of cutoff frequency to
  roll off to zero (filter can reject frequencies
  above 22 kHz)
• Sampling at 44.1 kHz captures analog frequencies
  of up to but not including 22.05 kHz.

12
Coverage

• Analysis of linear subsystems within control,
  communication, and signal processing systems
• Examples of electronic control systems?
• Antilock brakes
• Engine control
• Chemical processing plant
• Examples of signal processing systems?

13
Signal Processing Systems

• Speech synthesis and speech recognition
• Audio CDs
• Audio compression (MP3, AC3)
• Image compression (JPEG, JPEG 2000)
• Optical character recognition
• Video CDs (MPEG 1)
• DVD, digital cable, and HDTV (MPEG 2)
• Wireless video (MPEG 4/H.263)
• Examples of communication systems?

14
Communication Systems

• Voiceband modems (56k)
• Digital subscriber line (DSL) modems
• ISDN 144 kilobits per second (kbps)
• Business/symmetric HDSL and HDSL2
• Home/asymmetric ADSL and VDSL
• Cable modems
• Cell phones
• First generation (1G) AMPS
• Second generation (2G) GSM, IS-95 (CDMA)
• Third generation (3G) cdma2000, WCDMA

Analog
Digital
15
Wireline Communications
Internet
DSLAM
Central Office
Customer Premises
ADSL modem
ADSL modem
PSTN
Voice Switch
Lowpass Filter
Lowpass Filter

• HDSL High bitrate 1.544 Mbps in both directions
• ADSL Asymmetric 1-10 Mbps down, 0.5-1 Mbps up
• VDSL Very high bitrate, 22 Mbps down, 3 Mbps up

16
Wireless Communications

• Time-frequency (Fourier) analysis
• Digital communication increases SNR/capacity
• Antenna array adds further increase in SNR
  capacity by using spatial diversity
• 2.5G and 3G systems transmit voice data

Picture by Prof. Murat Torlak, UT Dallas
17
Networking

• Internet
• Video-on-demand
• Sonet
• Asynchronous Transfer Mode (ATM)
• Broadband Integrated Services Network (ISDN)
• Gigabit Ethernet
• 10 Gigabit Ethernet

Picture by Prof. Jean Walrand, UC Berkeley
18
Signals

• Continuous-time signals are functions of a real
  argument
• x(t) where t can take any real value
• x(t) may be 0 for a given range of values of t
• Discrete-time signals are functions of an
  argument that takes values from a discrete set
• xn where n ? ...-3,-2,-1,0,1,2,3...
• We sometimes use index instead of time when
  discussing discrete-time signals
• Values for x may be real or complex

19
Analog vs. Digital

• The amplitude of an analog signal can take any
  real or complex value at each time/sample
• Amplitude of a digital signal takes values from a
  discrete set

1
-1
20
Systems

• A system is a transformation from one signal
  (called the input) to another signal (called the
  output or the response).
• Continuous-time systems with input signal x and
  output signal y (a.k.a. the response)
• y(t) x(t) x(t-1)
• y(t) x2(t)
• Discrete-time system examples
• yn xn xn-1
• yn x2n

21
Linearity

• Linear systems
• Output is linear transformation of input
• Linear transformation T satisfies both
• Homogeneity
• Tk x(t) k Tx(t)
• k is a scalar constant and x(t) is an input
• Additivity
• Tx1(t) x2(t) Tx1(t) Tx2(t)
• x1(t) and x2(t) are two inputs
• x1(t) x2(t) is a superposition (addition) of
  inputs

y(t)
x(t)
22
Time-Invariance

• A shift in the input produces a shift in the
  output by the same amount
• If Tx(t) y(t), then Tx(t -t) y(t -t) for
  all real-valued time shifts t
• Is the following system time-invariant?
• y(t) x(t) x(t -1)

23
Causality

• Output depends only on the current and past
  inputs and past outputs
• y(t) y(t -1) x(t) 2 x(t -1) is causal
• y(t) y(t 1) x(t 1) - 2 x(t -100) is NOT
  causal
• For systems that involve functions of time (e.g
  audio signals), we must use causal systems if we
  must process signals in real-time
• For systems that involve functions of spatial
  coordinates (images), this is not of concern when
  entire image is available for processing

24

• Time domain analysis
• Signals and systems in continuous and discrete
  time
• Convolution finding system response in time
  domain
• Generalized frequency domain analysis
• Laplace and z transforms of signals
• Transfer functions of linear time-invariant
  systems
• Tests for system stability
• Frequency domain analysis
• Fourier series
• Fourier transform of continuous-time signals
• Frequency responses of systems

25
(No Transcript)
26
???
27
Mars Spirit Rover

• Transmits pictures
• At 11 kbits/sec (1/3 telephone modem rate)
• Across 300 million miles (485 million km)
• Using a 140 watt transmitter
• HOW? Image coding (signal processing) and digital
  communications
• Navigation
• Lands within 5 miles after traveling 300 million
  miles
• 3mm error on a trip from Columbus to Cleveland
• 50 minute round-trip communication delay
• HOW? feedback control

28
Systems Applications

• Signal processing
• How do I encode images in the fewest bits
  possible, and so that bit errors dont kill image
  quality?
• Communications
• How do I reliability (few bit errors) transmit
  bits over 300 million miles with 140 watts of
  power?
• Control systems
• How do I design feedback systems to provide
  robustness to uncertainties?

29
Feedback Control
y(t) actual track
r(t) desired track
Propulsion and steering system
30
Feedback Control
y(t) actual track
r(t) desired track
Propulsion and steering system


-
Steering correction system
31
ECE352 Goals

• You will learn to work with signals and systems
  in the time and frequency domains.
• You will work with continuous-time and
  discrete-time signals and systems, and know how
  they relate.
• You will learn mathematical techniques to analyze
  and design signals and systems.
• You will learn how to apply these techniques to
  problems in ECE fields.

32
y(t)
x(t)
D/A
A/D
33
First Day Class Home Work No Submission

• Review ECE 351
• Read Pages 358-363 (Chapter 8)
• Play with Matlab !

34
Fourier Transform
35
Laplace Transform
