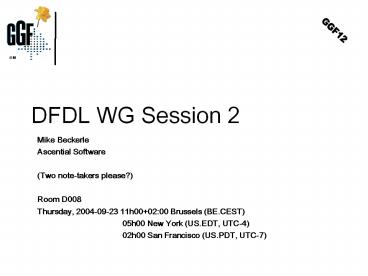

DFDL WG Session 2

• Mike Beckerle
• Ascential Software
• (Two note-takers please?)
• Room D008
• Thursday, 2004-09-23 11h000200 Brussels
  (BE.CEST)
• 05h00 New York
  (US.EDT, UTC-4)
• 02h00 San
  Francisco (US.PDT, UTC-7)

2
Abstract

• Detailed WG meeting to review particular
  examples.
• This meeting will assume familiarity with the
  ongoing work of the WG.

3
DFDL-WG Session 2 Current Working Issues

• Agenda
• Charter revision discussion
• IBM WebSphere Business Integration Broker
  Presentation
• Steve Hanson smh_at_uk.ibm.com
• Review current examples
• Discussion
• Identify missing examples
• .

4
Proposed Revisions to DFDL-WG Charter

• Documents
• Primer - draft (done for GGF11)
• Spec - 3 primary sections
• Language
• Transforms and their parameters
• XML-extensions
• Language Bindings/APIs
• Schedule
• Primer - update by GGF13 (officlal draft)
• Spec - internal WG document by GGF13, updated for
  GGF14, official draft for GGF15
• focus for GGF13 disucssion on language
• focus for GGF14 on transfomrms
• GGF15 is the whole spec.
• Language Bindings/API - internal draft by GGF14,
  target draft for GGF16.
• focus for GGF15 discussion

5
Describing non-XML data using XML Schema in IBM
WebSphere Business Integration Brokers

• Steve Hanson
• WebSphere Business Integration Brokers,
• IBM Hursley, England
• Internet smh_at_uk.ibm.com
• Phone (44)/(0) 1962-815848

6
Examples (so far)

• BasicMathInExpressions.xsd
• BasicMathInRepresentations.xsd
• Choice.xsd
• DefaultValuePropagation.xsd
• DefaultedInput.xsd
• IncludeTransform.xsd
• IncludeType.xsd NewDFDLType.xsd
• MultiLayer.xsd
• MultiStreams.xsd
• NewDFDLTransform.xsd
• NewExternalDFDLTransform.xsd
• NewMixedDFDLTransform.xsd
• Reference.xsd
• StaticInformation.xsd
• ValidatedInput.xsd

7
Examples

• (not powerpoint)

8
END
9
Issues

• Stored length, references in general
• Choice/unions
• Expression language for discrimination
• Layered translations
• compression, encryption
• IBM data streams (F, FB, VB, VBS)
• Modularity
• How to plug in new transformations?
• Composition properties

10
Use Cases
Issue Coverage Issue Coverage Issue Coverage Issue Coverage
Stored-length/ references Choice Layered Translations Modularity
Variable length int vector X
Cobol redefines X X
Matrix w/dynamic size X X
Clever string X X X
Comma-separated values ? ?
11
Stored Length References

• Variable-length int vector
• Prefix is 4-byte integer length gt 0
• Content follows
• Length field contains
• Number of elements in the vector?
• Number of bytes in the vectors rep?
• General issue how can the value of one field be
  used in the format description of another field

12
Stored Length

• 01  PATIENT-TREATMENTS.
•        05  PATIENT-NAME                PIC X(30).
•        05  NUMBER-OF-TREATMENTS        PIC 99
  COMP-3.
•        05  TREATMENT-HISTORY OCCURS 0 TO 50 TIMES
•               DEPENDING ON NUMBER-OF-TREATMENTS.
•            10  TREATING-PHYSICIAN       PIC
  X(30).
•            10  TREATMENT-CODE           PIC 99.

13
Stored Length

• ltcomplexType name'PATIENT-TREATMENTS-type'gt
• ltannotationgtltappinfogt
• ltdfdlbyteOrder value"bigEndian"/gt
• ltdfdldecimalFormatType value"text"/gt
• ltdfdlcharset value"ebcdic-cp-us"/gt
• lt/appinfogtlt/annotationgt
• ltsequencegt
• ltelement name'PATIENT-NAME'
  type'string'
• minLength'30' maxLength"30"/gt
• ltelement name'NUMBER-OF-TREATMENTS'
  type'decimal' totalDigits'2'gt
• ltannotationgtltappinfogt
• ltdfdlrepType value"binary"/gt
• ltdfdldecimalFormatType
  value"packed"/gt
• lt/appinfogtlt/annotationgt
• lt/elementgt
• ltelement name'TREATMENT-HISTORY' gt
• .....next slide
• lt/elementgt
• lt/sequencegt

14
Stored Length References

• ltelement name'TREATMENT-HISTORY'
  minOccurs'0' maxOccurs'50'gt
• ltannotationgtltappinfogt
• ltdfdlstoredLength
  value'../NUMBER-OF-TREATMENTS'/gt
• ltdfdlstoredLengthUnitType
  value'logicalItems'/gt
• lt/appinfogtlt/annotationgt
• ltsequencegt
• ltelement name'TREATING-PHYSICIAN'
  type'string
• minLength'30
  maxLength30/gt
• ltelement name'TREATMENT-CODE'
  type'decimal' totalDigits'2'/gt
• lt/sequencegt
• lt/elementgt

15
Choice

• Calculation required to determine which of
  several formats applies.
• A.k.a., union, tagged union, discriminated
  unions, variants, tagged variants
• Cobol redefines
• Changing data formats as new versions of data
  standards come out.
• EDI (ANSI X12) formats

16
Use Case Cobol Redefines

• 01 AS-CPST-REC.
• // Header portion. Position 1-42 are common
  to all variants.
• 06 AS-CPCOM.
• 09 AS-COM-STORE-TYPE PIC X.
• 09 AS-COM-STORE-NO PIC 9(05).
• 09 AS-COM-TRAN-ID
  PIC X(04).
• 88 TRAN-COUPON
  VALUE 'CP80'.
• 88 TRAN-REVENUE
  VALUE 'IC40'
•
  'RA40'.
• 88 TRAN-SALES
  VALUE 'IC40'.
• 88 TRAN-DELIVER
  VALUE 'IC44'.
• 88 TRAN-RENTS
  VALUE 'RA40'
•
  'RA42'.
• 88 TRAN-RENT-RETURN
  VALUE 'RA41'.
• 09 AS-COM-QUANTITY PIC
  S9(05).
• 09 AS-COM-PART-NO PIC
  9(06).
• // Variant portion. Position 43-95 differ
  depending on AS-COM-TRAN-ID

17
Use Case Cobol Redefines

• // Txn-type RA4 Rental
• 06 AS-CPREN REDEFINES AS-CPVAR.
• 09 REN-REVENUE PIC
  S9(07)V9(02).
• 09 FILLER PIC
  X(01).
• 09 REN-LOS PIC
  S9(03).
• 09 REN-EXT-VIEW-FEE PIC
  S9(07)V9(02).
• 09 REN-QOH PIC
  S9(05).
• 09 REN-RENT-CODE PIC
  X(01).
• 09 REN-COPY-NO PIC
  9(03).
• 09 REN-CUST-NO PIC
  X(11).
• 09 REN-CRD-TYPE PIC
  X(03).
• // Txn-type IC4 Sales
• 06 AS-CPSLS REDEFINES AS-CPVAR.
• 09 SLS-COST PIC
  S9(04)V9(02).
• 09 SLS-REVENUE PIC
  S9(07)V9(02).
• 09 SLS-QOH PIC
  S9(05).
• 09 SLS-CUST-NO PIC
  X(11).
• 09 SLS-CRD-TYPE PIC
  X(03).
• // Txn-type CP8 Coupon

18
Use Case Cobol Redefines

• ltcomplexType name"AS-CPST-REC"gt
• ltsequencegt
• ltelement name"AS-CPCOM"gtltsequencegt
• ltannotationgt
• // Header portion. Position 1-42 are
  common to all variants.
• lt/annotationgt
• ltannotationgtltappinfogt
• ltcharset value"ebcdic-cp-us"/gt
• ltrepType value"binary"/gt
• ltbyteOrder value"bigEndian"/gt
• ltdecimalType value"text"/gt
• lt/appinfogtlt/annotationgt
• ltelement name"AS-COM-STORE-TYPE"
  type"string" fixLength"1"/gt
• ltelement name"AS-COM-STORE-NO"
  type"decimal" unsigned"true" totalDigits"5"/gt
• ltelement name"AS-COM-TRAN-ID"
  type"string" fixLength"4"/gt
• ltannotation name"tran-id-definitions"gt
• 88 TRAN-COUPON
  VALUE 'CP80'.
• 88 TRAN-REVENUE
  VALUE 'IC40' 'RA40'.
• 88 TRAN-SALES
  VALUE 'IC40'.

19
Use Case Cobol Redefines

• ltelement name"AS-CPVAR"gt
• ltannotationgt
• // Variant portion. Position 43-95
  differs depending on AS-COM-TRAN-ID
• lt/annotationgt
• ltchoicegt
• ltannotationgtltappinfogt
• ltchoiceTagValueCalc
• value" let code
  substring(../AS-CPCOM/AS-COM-TRAN-ID,0,3)
• let tag if (code
  "RA4") then "AS-CPREN"
• else if
  (code "IC4") then "AS-CPSLS"
• else if
  (code "CP8") then "AS-CPCP"
• else throw
  invalidDataFormat(code)
• ./choiceTag tag
• " /gt
• ltchoiceTagRepCalc
• value" let tagRep if
  (./choiceTag "AS-CPRENl") then "RA40"
• else if
  (./choiceTag "AS-CPSLS") then "IC40"
• else if
  (./choiceTag "AS-CPCP") then "CP80"
• else throw
  inconsistentDef(./choiceTag)

20
Use Case Cobol Redefines

• ltelement name"AS-CPREN"gtltsequencegt
• ltannotationgt
• // Txn-type RA4 Rental
• lt/annotationgt
• ltelement name"REN-REVENUE" type"decimal"
  totalDigits"9" fractionDigits"2"/gt
• ltelement type"string" fixLength"1"/gt
• ltelement name"REN-LOS" type"decimal"
  totalDigits"3"/gt
• ltelement name"REN-EXT-VIEW-FEE"
  type"decimal" totalDigits"9" fractionDigits"2"/
  gt
• ltelement name"REN-QOH" type"decimal"
  totalDigits"5"/gt
• ltelement name"REN-RENT-CODE" type"string"
  fixLength"1"/gt
• ltelement name"REN-COPY-NO" type"decimal"
  unsigned"true" totalDigits"3"/gt
• ltelement name"REN-CUST-NO" type"string"
  fixLength"11"/gt
• ltelement name"REN-CRD-TYPE" type"string"
  fixLength"3"/gt
• lt/sequencegtlt/elementgt
• ltelement name"AS-CPSLS"gtltsequencegt
• ltannotationgt
• // Txn-type IC4 Sales
• lt/annotationgt

21
Expressions/References

• Expression language
• ./x/y/z references the data value at runtime
• ./x/y references run-time properties of the
  data values
• E.g., choiceTag to set the active alternative
• E.g., length to set a variable length for a
  string
• E.g., arrayLength ditto for array

22
Run-time properties
Conceptual model of Run Time Attributes available
from
DFDL expression-language syntax
FloatingPoint
AllTypes
SimpleType
Number
-isNullboolean
-arrayLengthlong
-arrayLengthslong
Decimal
Numeric
-selfIndexlong
-selfIndiceslong
-lengthlong
-isValidboolean
Integer
String
Duration
-lengthlong
DateTime
-yearsint
Date
-monthsint
Choice
-eraint
-daysint
-yearint
-eraint
-hoursint
-choiceTagint
-monthint
-yearint
Time
-secondsint
-dayint
-monthint
-microsecondsint
-hourint
-weekint
-hourint
-minuteint
-dayint
-minuteint
-secondint
-secondint
-microsecondint
-microsecondint
23
Layered Translations

• Use case Matrix with dynamic size in text file
• blank lines are ignored
• C-style comments are ignored (equiv. to
  whitespace)
• First line contains xdim ydim (whitespace
  separated)
• Subsequent lines are rows of the 2-d matrix.
• There must be exactly ydim rows
• each containing xdim numbers
• Within each row the values are whitespace
  separated.
• The charset is UTF-8
• Requires that we express preprocessing of the
  input data to handle the C-style comments and
  blank lines
• The preprocessing is not part of the structure of
  the data

24
Layered TranslationsMatrix w/Dynamic Size Example

• / obsv3 ??? 2003?08?27? ?? /
• / gbxx2. 140221 ???? 8 ?
• /
• 3 2
• / ?????????????? /
• 1 2 3 //
• 4 5 /????/ 6
• / ??????? /

25
Layered TranslationsMatrix w/Dynamic Size Example

• ltdimsgt
• ltxdimgt3lt/xdimgt
• ltydimgt2lt/ydimgt
• lt/dimsgt
• ltydatagt
• ltxdatagt1lt/xdatagt
• ltxdatagt2lt/xdatagt
• ltxdatagt3lt/xdatagt
• lt/ydatagt
• ltydatagt
• ltxdatagt4lt/xdatagt
• ltxdatagt5lt/xdatagt
• ltxdatagt6lt/xdatagt
• lt/ydatagt

26
Layered TranslationsMatrix w/Dynamic Size Example

• ltelement name"example2"gt
• ltsequencegt
• ltelement name"dims"gt
• ltsequencegt
• ltelement name"xdim" type"int"/gt
• ltelement name"ydim" type"int"/gt
• lt/sequencegt
• lt/elementgt
• lt! XSD/XML Issues XSD has no 2-d array. Also
  there is no way to constrain minOccurs or
  maxOccurs based on the value of other elements of
  the XML --gt
• ltelement nameydata minOccurs0
  maxOccursunboundedgt
• ltsequencegt
• ltelement namexdata typedouble
• minOccurs0 maxOccursunbounded
  /gt
• lt/sequencegt
• lt/elementgt
• lt/sequencegt
• lt/elementgt

27
Layered TranslationsMatrix w/Dynamic Size Example

• Underlying transformations
• Bits to bytes
• Bytes to Characters (UTF-8 encoding)
• Removal of blank lines
• Removal of C-style comments

28
Layered TranslationsMatrix w/Dynamic Size Example

• The data now looks like
• 3 2
• 1 2 3
• 4 5 6
• Let b blank, nnewline. The data really is this
  string of characters
• 3b2n1b2b3bbn4b5bbb6n

29
ReferencesMatrix w/Dynamic Size Example

• DFDL wants to make invalid mistakes like
• 3 2
• 1 2
• 3 4 5 6
• (line structure doesnt match dimensions) or
• 3 2
• 1 2 3
• 4 5 6
• 7 8 9
• (too many rows)

30
ReferencesMatrix w/Dynamic Size Example

• ltelement name"example2"gt
• ltsequencegt
• ltelement name"dims"gt
• ltsequencegt
• ltannotationgtltappinfogt
• ltdfdlterminator value"\pwhitespace\p
  Line_Separator"/gt
• ltdfdlseparator value"\pwhitespace"/gt
• lt/appinfogtlt/annotationgt
• ltelement name"xdim" type"int"/gt
• ltelement name"ydim" type"int"/gt
• lt/sequencegt
• lt/elementgt
• ltelement nameydata minOccurs0
  maxOccursunboundedgt
• ltannotationgtltappinfogt
• ltdfdlseparator value"\pwhitespace\pLin
  e_Separator"/gt
• lt/appinfogtlt/annotationgt
• ltsequencegt
• ltelement namexdata typedouble
• minOccurs0 maxOccursunbounded
  gt

31
ReferencesMatrix w/Dynamic Size Example

• ltelement name"example2"gt
• ltsequencegt
• ltelement name"dims"gt
• ltsequencegt
• ltannotationgt lt/annotationgt
• ltelement name"xdim" type"int"/gt
• ltelement name"ydim" type"int"/gt
• lt/sequencegt
• lt/elementgt
• ltelement nameydata minOccurs0
  maxOccursunboundedgt
• ltannotationgtltappinfogt
• ltdfdlseparator value"\pwhitespace\pLin
  e_Separator"/gt
• ltdfdlvalidation expr" ./arrayLength
  ../dims/ydim "/gt
• lt/appinfogtlt/annotationgt
• ltsequencegt
• ltelement namexdata typedouble
• minOccurs0 maxOccursunbounded
  gt

32
Layered TranslationsMatrix w/Dynamic Size Example

• Now add in the layered transformations of the
  streams.
• ltannotationgtltappinfogt
• ltcontainer name"charStream" type"string"gt
• ltrep charset"UTF-8"
• container"byteStream"gt lt!-- a built in
  container --gt
• ltvalueCalc exp" bytesToChars() "/gt
• lt/repgt
• lt/containergt
• ltcontainer name"noCommentsStream" type"string"gt
• ltrep container"charStream"gt
• ltvalueCalc exp"replaceString( '...a regexp
  for comments...', ' ')"/gt
• lt/repgt
• lt/containergt
• ltcontainer name"noBlankLinesStream"
  type"string"gt
• ltrep container"noCommentsStream"gt
• ltvalueCalc exp" replaceString( '..a regexp
  for blanklines..',' ')"/gt

33
Modularity

• Consider this example
• ltxssimpleType name"binaryInt"gt
• ltxsrestriction base"xsint"gt
• ltxsannotationgtltxsappinfogt
• ltcompositeMappinggt
• ltmapping name"data-bytes"/gt
• ltmapping name"bytes-int"/gt
• lt/compositeMappinggt
• lt/xsappinfogtlt/xsannotationgt
• lt/xsrestrictiongt
• lt/xssimpleTypegt
• This connects the definition of binaryInt all the
  way back to how bits are turned into bytes
• This over-specification limits reusability

34
Modularity

• Issue Why should binaryInt care about where the
  bytes come from?
• They could come from a binary file
• They could come from conversion of uuencoded text
  back into binary data
• They could come from decompression.
• DFDL defined types want to be parameterized by
  where they get their underlying data

35
DFDL-WG Session 2 Multilayered descriptions and
references

• This session focuses on issues and potential
  problems with the current approach
• Representations of multilayered descriptions
• Descriptions of compressions, encryption etc
• Discussion of conditional types
• how to represent unions, clever string etc.
