Title: TDC561 Network Programming

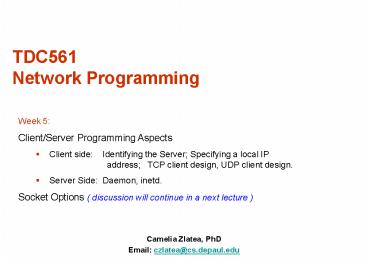

1
TDC561 Network Programming
  • Week 5
  • Client/Server Programming Aspects
  • Client side Identifying the Server
    Specifying a local IP
    address TCP client design, UDP client design.
  • Server Side Daemon, inetd.
  • Socket Options ( discussion will continue in a
    next lecture )
  • Camelia Zlatea, PhD
  • Email czlatea_at_cs.depaul.edu

2
References
  • Douglas Comer, David Stevens, Internetworking
    with TCP/IP Client-Server Programming, Volume
    III (BSD Unix and ANSI C), 2nd edition, 1996
    (ISBN 0-13-260969-X)
  • Chap. 6, 14 (partial)
  • W. Richard Stevens, Network Programming
    Networking API Sockets and XTI, Volume 1, 2nd
    edition, 1998 (ISBN 0-13-490012-X)
  • Chap. 7,11,12, 21,22

3
Aspects of Client/Server Programming
  • Client-side aspects
  • Identifying the Server.
  • Looking up an IP address.
  • Looking up a well known port name.
  • Specifying a local IP address.
  • TCP client design.
  • UDP client design.
  • Server-side aspects
  • daemons
  • inetd

4
Identifying the Server
  • Need an IP address, protocol and port.
  • often use host names instead of IP addresses.
  • usually the protocol (UDP vs. TCP) is not
    specified by the user.
  • often the port is not specified by the user.
  • Options
  • hard-coded into the client program.
  • require that the user identify the server.
  • read from a configuration file.
  • use a separate network service to lookup the
    identity of the server.

5
Byte Ordering
  • Different computer architectures use different
    byte ordering to represent/store multi-byte
    values (such as 16-bit/32-bit integers)
  • 16 bit integer

Little-Endian (Intel)
Big-Endian (RISC-Sparc)
Low Byte
High Byte
Address A
High Byte
Low Byte
Address A1
6
Byte Order and Networking
  • Suppose a Big Endian machine sends a 16 bit
    integer with the value 2
  • A Little Endian machine will understand the
    number as 512
  • How do two machines with different byte-orders
    communicate?
  • Using network byte-order
  • Network byte-order big-endian order

0000000000000010
0000001000000000
7
Network Byte Order
  • Conversion of application-level data is left up
    to the presentation layer.
  • Lower level layers communicate using a fixed byte
    order called network byte order for all control
    data.
  • TCP/IP mandates that big-endian byte ordering be
    used for transmitting protocol information
  • All values stored in a sockaddr_in must be in
    network byte order.
  • sin_port a TCP/IP port number.
  • sin_addr an IP address.

8
Network Byte Order Functions
  • Several functions are provided to allow
    conversion between host and network byte
    ordering,
  • Conversion macros (ltnetinet/in.hgt)
  • to translate 32-bit numbers (i.e. IP addresses)
  • unsigned long htonl(unsigned long hostlong)
  • unsigned long ntohl(unsigned long netlong)
  • to translate 16-bit numbers (i.e. Port numbers)
  • unsigned short htons(unsigned short hostshort)
  • unsigned short ntohs(unsigned short netshort)

9
Services and Ports
  • Identifying of the server
  • Many services are available via well known
    addresses (names).
  • There is a mapping of service names to port
    numbers
  • struct servent getservbyname(
  • char service, char protocol )
  • servent-gts_port
  • is the port number in network byte order.
  • Specifying a Local Address
  • When a client creates and binds a socket it must
    specify a local port and an IP address.
  • A client ask the kernel to assign the local IP
    address
  • haddr-gtsin_addr.s_addr htonl(INADDR_ANY)
  • Typically a randomly port available is assigned
    with haddr-gtport htons(0)

10
Example Identifying the Server
  • Option read from a configuration file.
  • / Initialize the server structure /
  • server.sin_addr.s_addr INADDR_ANY
  • server.sin_family AF_INET
  • /
  • Get the service port associated with this
    process
  • usually in some /etc/ config file such as
    /etc/services /
  • servent_p getservbyname ( PMSERVICE, tcp )
  • server.sin_port servent_p-gts_port

11
DNS library functions gethostbyname
  • include ltnetdb.hgt
  • struct hostent gethostbyname(
  • const char hostname)

struct hostent char h_name char
h_aliases int h_addrtype int
h_length char h_addr_list
12
hostent
Official Name
  • h_name
  • h_aliases
  • h_addrtype
  • h_length
  • h_addr_list

alias 1
alias 2
null
h_addr_list0
(IP address 1)
h_addr_list1
(IP address 2)
null
All the IP addresses returned via the hostent
are in network byte order
define h_addr h_addr_list0
13
DNS library functions gethostbyname
  • On error gethostbyname return null.
  • gethostbyname sets the global variable h_errno to
    indicate the exact error
  • HOST_NOT_FOUND
  • TRY_AGAIN
  • NO_RECOVERY
  • NO_DATA
  • NO_ADDRESS

14
Getting host IP address
  • char h_addr_list
  • h gethostbyname(hawk.depaul.edu")
  • memcpy(sockaddr.sin_addr,
  • h-gth_addr_list0,
  • sizeof(struct in_addr))

15
DNS library functions gethostbyaddr
  • struct hostent gethostbyaddr(
  • const char addr
  • size_t len,
  • int family)

16
Other DNS library functions
  • Shell Command uname n
  • get hostname of local host
  • uname a prints all info local host
  • getservbyname
  • get port number for a named service
  • getservbyaddr
  • get name for service associated with a port number

17
Name/Address Conversion
  • Protocol dependent DNS library functions
  • gethostbyname
  • gethostbyaddr
  • Posix protocol independent functions
  • getaddrinfo()
  • getnameinfo()
  • getaddrinfo()and getnameinfo() functions provide
    name/address conversions as part of the sockets
    library.
  • designed to support writing code that can run on
    many protocols (IPv4, IPv6)

18
POSIX getaddrinfo()
  • int getaddrinfo(
  • const char hostname,
  • const char service,
  • const struct addrinfo hints,
  • struct addrinfo result)
  • hostname is a hostname or an address string
    (dotted decimal string for IP).
  • service is a service name or a decimal port
    number string.
  • getaddrinfo()
  • provides the combined functionality of
    gethostbyname() and getservbyname()

19
POSIX getaddrinfo()
  • result is returned with the address of a pointer
    to an addrinfo structure that is the head of a
    linked list.
  • struct addrinfo
  • int ai_flags
  • int ai_family
  • int ai_socktype
  • int ai_protocol
  • size_t ai_addrlen
  • char canonname
  • struct sockaddr ai_addr
  • struct addrinfo ai_next

used by socket()
used by bind() connect() sendto()
20
POSIX getnameinfo()
  • int getnameinfo(
  • const struct sockaddr sockaddr,
  • socklen_t addrlen
  • char host,
  • size_t hostlen,
  • char serv,
  • size_t servlen,
  • int flags)
  • getnameinfo() looks up a hostname and a
    service name given a sockaddr

21
TCP Client Design
  • Identify and establish server address (IP and
    port).
  • Allocate a socket.
  • Request OS to use any valid local port and IP
    address
  • Call connect()
  • Communicate with server (read,write).
  • Close the connection.

22
Stream Socket Transaction (TCP Connection)
23
Closing a TCP socket
  • Many TCP based application protocols support
    multiple requests and/or variable length requests
    over a single TCP connection.
  • How does the server known when the client is
    done ?
  • When it is safe to close the socket?

24
Partial Close
  • One solution is for the client to shut down only
    its writing end of the socket.
  • The shutdown() system call provides this
    function.
  • shutdown( int s, int direction)
  • direction can be 0 to close the reading end or 1
    to close the writing end.
  • shutdown sends info to the other process

25
TCP Sockets Programming
  • Typical issues
  • reads dont correspond to writes.
  • synchronization (including close())
  • TCP Reads
  • Each call to read() on a TCP socket returns any
    available data (up to a maximum).
  • TCP buffers data at both ends of the connection.

26
UDP Client Design
  • Identify and establish the server address (IP and
    port).
  • Allocate a socket.
  • Request OS to use any valid local port and IP
    address
  • Communicate with server (send, recv)
  • Close the socket.

27
Datagram Socket Transaction (UDP Connection)
Server
Client
socket()
socket()
bind()
sendto()
data
recvfrom()
data
sendto()
recvfrom()
close()
28
Datagram Sockets
  • Connectionless sockets, i.e., C/S addresses are
    passed along with each message sent from one
    process to another
  • Peer-to-Peer Communication
  • Provides an interface to the UDP datagram
    services
  • Handles network transmission as independent
    packets
  • Provides no guarantees, although it does include
    a checksum
  • Does not detect duplicates
  • Does not determine sequence
  • ie information can be lost, wrong order or
    duplicated

29
Daemons
  • Most servers run as a daemon process
  • Typical UNIX daemons
  • Web server (httpd)
  • Mail server (sendmail)
  • SuperServer (inetd)
  • System logging (syslogd)
  • Print server (lpd)
  • router process (routed, gated)

30
Daemon Process
  • A daemon is a process that
  • runs in the background
  • not associated with any terminal
  • output doesn't end up in another session.
  • ignore SIGINT (such as terminal generated signals
    - C
  • since is not associated with any terminal uses
  • file system
  • central logging facility
  • daemons should close all unnecessary descriptors
  • often including stdin, stdout, stderr.
  • daemons often change working directory.
  • A background process
  • Parent process fork() and then the parent exit().
  • A way to disassociate a process from a terminal.
  • Call setsid() and then fork() again.

31
Daemon Process Init Example
  • include ltsys/types.hgt
  • include ltsys/stat.hgt
  • include ltfcntl.hgt
  • int
  • daemon_init(void)
  • pid_t pid
  • if ( (pid fork()) lt 0)
  • return(-1)
  • else if (pid ! 0)
  • exit(0) / parent is gone /
  • / child continues /
  • setsid() / become session leader /
  • system(cd /") / change working directory /
  • umask(0) / clear our file mode creation mask
    /

32
Performance issues with daemons processes
  • CPU utilization
  • There can be many servers running as daemons -and
    idle most of the time.
  • Memory utilization
  • Most daemons/servers are suspended most of the
    time, but still occupy space in the process
    table.
  • A solution Superserver or
  • inetd (Internet services daemon )

33
inetd
  • the SuperServer is named inetd.
  • inetd daemon creates multiple sockets and waits
    for (multiple) incoming requests.
  • inetd typically uses select to watch multiple
    sockets for input.
  • when a request arrives, inetd will fork and the
    child process handles the client.
  • inetd child process closes all unnecessary
    sockets.
  • inetd child dups the client socket to
    descriptors 0,1 and 2 (stdin, stdout, stderr).
  • inetd child execs the real server program, which
    handles the request and exits.

34
inetd based servers
  • Servers that are started by inetd assume that the
    socket holding the request is already established
    (descriptors 0,1 or 2).
  • TCP servers started by inetd dont call accept,
    so they must call getpeername if they need to
    know the address of the client.
  • inetd reads a configuration file that lists all
    the services it should handle.
  • /etc/inetd.conf
  • inetd creates a socket for each listed service,
    and adds the socket to a fd_set given to
    select().

35
getpeername
  • include ltsys/types.hgt
  • include ltsys/socket.hgt

  • int getpeername(int s,
  • struct sockaddr name,
  • socklen_t namelen)
  • getpeername() returns the name of the peer
    connected to socket s.


36
inetd service specification
  • For each service, inetd needs to know
  • the socket type and transport protocol
  • wait/nowait flag.
  • login name the process should run as.
  • pathname of real server program.
  • command line arguments to server program.
  • Servers that are expected to deal with frequent
    requests are typically not run from inetd
  • mail, web, NFS.

37
Example /etc/inetd.conf
  • Syntax for socket-based Internet services
  • ltservice_namegt ltsocket_typegt ltprotogt ltflagsgt
    ltusergt ltserver_pathnamegt ltargsgt

  • comments start with
  • echo stream tcp nowait root internal
  • echo dgram udp wait root internal
  • chargen stream tcp nowait root internal
  • chargen dgram udp wait root internal
  • ftp stream tcp nowait root
    /usr/sbin/ftpd ftpd -l
  • telnet stream tcp nowait root
    /usr/sbin/telnetd telnetd
  • finger stream tcp nowait root
    /usr/sbin/fingerd fingerd
  • Authentication
  • auth stream tcp nowait nobody
    /usr/sbin/in.identd in.identd -l -e -o
  • TFTP
  • tftp dgram udp wait root /usr/sbin/tftpd
    tftpd -s /tftpboot

38
wait/nowait
  • WAIT specifies that inetd should not look for new
    clients for the service until the child (the real
    server) has terminated.
  • TCP servers usually specify nowait - this means
    inetd can start multiple copies of the TCP server
    program - providing concurrency
  • Most UDP services run with inetd told to wait
    until the child server has died.

39
Topic
  • Socket Options (discussion will continue in a
    next lecture)

40
Socket Options
  • Various attributes that are used to determine the
    behavior of sockets.
  • Setting options tells the OS/Protocol Stack the
    behavior we want.
  • Support for generic options (apply to all
    sockets) and protocol specific options.

41
Option types
  • Many socket options are Boolean flags indicating
    whether some feature is enabled (1) or disabled
    (0).
  • Other options are associated with more complex
    types including int, timeval, in_addr, sockaddr,
    etc.

42
Read-Only Socket Options
  • Some options are readable only (we cant set the
    value).

43
Setting and Getting option values
  • include ltsys/socket.hgt
  • getsockopt() gets the current value of a socket
    option.
  • setsockopt() is used to set the value of a socket
    option.

44
getsockopt()
  • int getsockopt( int sockfd,
  • int level,
  • int optname,
  • void opval,
  • socklen_t optlen)
  • level specifies whether the option is a general
    option or a protocol specific option (what level
    of code should interpret the option).

45
setsockopt()
  • int setsockopt( int sockfd,
  • int level,
  • int optname,
  • const void opval,
  • socklen_t optlen)

46
General Options
  • Protocol independent options.
  • Handled by the generic socket system code.
  • Some general options are supported only by
    specific types of sockets (SOCK_DGRAM,
    SOCK_STREAM).

47
Some Generic Options
  • SO_BROADCAST
  • SO_DONTROUTE
  • SO_ERROR
  • SO_KEEPALIVE
  • SO_LINGER
  • SO_RCVBUF,SO_SNDBUF
  • SO_REUSEADDR

48
SO_BROADCAST
  • Boolean option enables/disables sending of
    broadcast messages.
  • Underlying data layer must support broadcasting
  • Applies only to SOCK_DGRAM sockets.
  • Prevents applications from inadvertently sending
    broadcasts (OS looks for this flag when broadcast
    address is specified).

49
SO_DONTROUTE
  • Boolean option enables bypassing of normal
    routing.
  • Used by routing daemons.

50
SO_ERROR
  • Integer value option.
  • The value is an error indicator value (similar
    to errno).
  • Readable only
  • Reading (by calling getsockopt()) clears any
    pending error.

51
SO_KEEPALIVE
  • Boolean option enabled means that STREAM sockets
    should send a probe to peer if no data flow for a
    long time.
  • Used by TCP - allows a process to determine
    whether peer process/host has crashed.
  • Consider what would happen to an open telnet
    connection without keepalive.

52
SO_LINGER
  • Value is of type
  • struct linger
  • int l_onoff / 0 off /
  • int l_linger / time in seconds /
  • Used to control whether and how long a call to
    close will wait for pending ACKS.
  • connection-oriented sockets only.

53
SO_LINGER usage
  • By default, calling close() on a TCP socket will
    return immediately.
  • The closing process has no way of knowing whether
    or not the peer received all data.
  • Setting SO_LINGER means the closing process can
    determine that the peer machine has received the
    data (but not that the data has been read() !).

54
shutdown() vs SO_LINGER
  • How you can use shutdown() to find out when the
    peer process has read all the sent data see
    R.Stevens, 7.5

55
TCP Connection Termination
Server
Client
FIN SNX
1
write close close returns
Data queued By TCP
ACKX1
2
Application Reads queued data and FIN close
...
FIN SNY
3
ACKY1
4
56
TCP Connection Termination close w/ SO_LINGER
Server
Client
FIN SNX
1
write close close returns
Data queued By TCP
ACKX1
2
App. Reads queued data and FIN close
...
FIN SNY
3
ACKY1
4
57
TCP Connection Termination w/ shutdown
Server
Client
FIN SNX
1
write shutdown WRITE read blocks read
returns 0
Data queued By TCP
ACKX1
2
App. Reads queued data and FIN close
...
FIN SNY
3
ACKY1
4
58
SO_RCVBUF and SO_SNDBUF
  • Integer values options - change the receive and
    send buffer sizes.
  • Can be used with STREAM and DGRAM sockets.
  • With TCP, this option effects the window size
    used for flow control - must be established
    before connection is made.

59
SO_REUSEADDR
  • Boolean option enables binding to an address
    (port) that is already in use.
  • Used by servers that are transient - allows
    binding a passive socket to a port currently in
    use (with active sockets) by other processes.
    (see example from lecture 4 Performance
    Management server)
  • Can be used to establish separate servers for the
    same service on different interfaces (or
    different IP addresses on the same interface).
  • Virtual Web Servers can work this way.

60
IP Options (IPv4)
  • IP_HDRINCL used on raw IP sockets when we want
    to build the IP header ourselves.
  • IP_TOS allows us to set the Type-of-service
    field in an IP header.
  • IP_TTL allows us to set the Time-to-live field
    in an IP header.

61
TCP socket options
  • TCP_KEEPALIVE set the idle time used when
    SO_KEEPALIVE is enabled.
  • TCP_MAXSEG set the maximum segment size sent by
    a TCP socket.

62
TCP socket options
  • TCP_NODELAY can disable TCPs Nagle algorithm
    that delays sending small packets if there is
    unACKd data pending.
  • TCP_NODELAY also disables delayed ACKS (TCP ACKs
    are cumulative).
Write a Comment
User Comments (0)
About PowerShow.com
