Self Organization: Competitive Learning

1

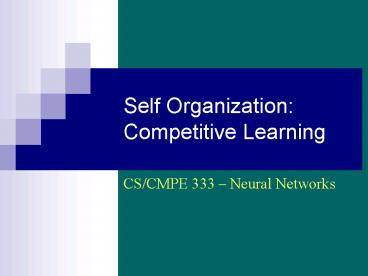

Self Organization Competitive Learning

• CS/CMPE 333 Neural Networks

2
Introduction

• Competition for limited resources is a way of
  diversifying and optimizing a distributed system
• E.g. a sports tournament, evolution theory
• Local competition leads to optimization at local
  and global levels without the need for global
  control to assign system resources
• Neurons compete among themselves to decide the
  one (winner-takes-all) or ones that are activated
• Through competitive learning the output neurons
  form a topological map unto the input neurons
• Sefl-organizing feature maps, where the networks
  learns the input and output maps in a geometrical
  sense

3
Competition

• Competition is intrinsically a nonlinear
  operation
• Two types of competition
• Hard competition means that only one neuron wins
  the resources
• Soft competition means that there is a clear
  winner, but its neighbors also share a small
  percentage of the system resources

4
Winner-Takes-All Network

• Inputs xi (i 1, p) output is
• yi 1 if neuron i wins the competition
• yi 0 otherwise
• The winning criterion can be any rule, as long as
  one clear winner is found (e.g. largest output,
  smallest output)
• The winner-takes-all network has one layer with p
  neurons, self-excitatory connections, and lateral
  inhibitory connections to all other neurons
• When a input is applied, the network evolves
  until the output of the winning neuron tends to 1
  while the outputs of the other neurons tends to 0
• Winner-takes-all network acts as a selector

5
Instar Network (1)
p
p

• Instar network is made up of McCulloch-Pitts
  neurons
• Instar neuron is able to recognize a single
  vector pattern based on a modified Hebbian rule
  that automatically accomplishes weight
  normalization for normalized inputs

6
Instar Network (2)

• Learning rule
• wji(n 1) wji(n) ?yj(n)xi(n) wji(n)
• y is the hard-limiter output of either 0 or 1
• The rule modifies the weights for neuron j if
  neuron j is active (wins). Otherwise, the weights
  remain unchanged.
• This rule is similar to Ojas rule, except that
  the weights are not multiplied by the output

7
Instar Network (3)

• The effect of the instar rule is to move the
  weight closer to the input in a straight line
  proportional to ?
• A trained instar neuron provides a response of 1
  for data samples located near the training
  pattern (the bias controls the size of the
  neighborhood)

8
Competitive Rule for Winner-Takes-All Network

• The hard-limiter in the instar network acts as a
  gate that controls the update of weights
• If a winner-takes-all network is used, the gating
  mechanism is not needed, as the winning neuron is
  decided separately
• Update rule
• wji(n 1) wji(n) ?xi(n) wji(n)
• j winning neuron

9
Criterion for Competition (1)

• What criterion should be used to determine the
  winning neuron? The criterion should have some
  geometrical relevance
• Inner product
• A neuron wins if the input is closest to the
  neuron (i.e. its weights)
• However, this only works when the input is
  normalized
• Winning neuron is the one with the largest inner
  product

10
(No Transcript)
11
Criterion for Competition (2)

• Euclidean distance
• x w Si (xi wi)21/2
• Winning neuron is the one with the smallest
  Euclidean distance
• Less efficient than inner product
• L1 norm or Manhattan distance
• x w Si (xi wi)
• Winning neuron is the one with the smallest L1
  norm

12
Clustering

• The competitive rule allows a single-layer linear
  network to group and represent data samples that
  lie in a neighborhood of the input space
• Each neighborhood is represented by a single
  output neuron
• The weights of the neuron represent the center of
  the cluster
• Thus, a single-layer linear competitive network
  performs clustering
• Clustering is a divide and conquer process
  where an input space is divided into groups of
  proximal patterns
• Vector quantization an example of clustering

13
k-Means Clustering Algorithm (1)

• Classical algorithm for data clustering
• Cluster data vectors xi (i 1, N) into k cluster
  Ci (i 1, k) such that the distance between the
  vectors and their respective cluster centers ti
  (i 1, k) is minimized
• Algorithm
• Randomly assign vectors to class Ci
• Find center of each cluster Ci
• ti (1/Ni) Sn?Ci xn
• Reassign the vectors to their nearest cluster,
  i.e., assign vector i to cluster k if xi
  tk2 is minimum for all k
• Repeat the last two steps until no changes occur

14
k-Means Clustering Algorithm (2)

• Performance measure or function
• J Si1 kSn?Ci xn ti2
• This measure is minimized in the k-means
  algorithm
• Estimating J with its instantaneous value, then
  taking derivative wrt ti
• dJ(n)/ dti -?x(n) ti(n)
• and, the change becomes (to minimize J)
• ?ti(n) ?x(n) ti(n)
• This is identical to the competitive update rule,
  when ti is replaced by wi
• Thus, the single-layer linear competitive network
  performs k-means clustering of the input data

15
k-Means Clustering - Example

• Cluster 0, 1, 3, 6, 8. 9, 10, 11 into 2 groups.
  N 8, k 2
• C1 0, 1, 3, 6 C2 8, 9, 10, 11
• t1 10/4 2.5 t2 38/4 9.5
• C1 0, 1, 3 C2 6, 8, 9, 10, 11
• t1 4/3 1.33 t2 44/5 8.8
• C1 0, 1, 3 C2 6, 8, 9, 10, 11
• No change. Thus, these are the final groupings
  and clusters

16
Determining the Number of Clusters

• The number of clusters k (the number of output
  neurons) has to be decided apriori
• How is k determined ?
• There is no easy answer without prior knowledge
  of the data that indicate the number of clusters
• If k is greater than the number of clusters in
  data, then natural clusters are split into
  smaller regions
• If k is less than the number of clusters in data,
  then more than one natural cluster is grouped
  together
• An iterative solution
• Start with a small k, cluster and find value of J
• Increment k by 1, cluster and find value J
• Repeat until J starts to increase

17
Soft Competition

• Hard competition winner-takes-all. That is, the
  winner neuron is active while the rest are
  inactive
• Soft competition winner-shares-reward. That is,
  the winning neuron activates its neighboring
  neurons as well
• The winning neuron has the highest output, while
  its neighboring neurons outputs decrease with
  increase in distance
• Consequently, weights of all active neurons are
  modified, not just that of the winning neuron
• Soft competition is common in biological neural
  systems

18
Kohonen Self-Organizing Maps (1)

• Kohonen SOMs are single-layer competitive
  networks with a soft competition rule
• They perform a mapping from a continuous input
  space to a discrete output space, preserving the
  topological properties of the input
• Topological map
• points close to each other in the input space are
  mapped to the same or neighboring neurons in the
  output space
• There is topological ordering or spatial
  significance to the neurons in the output and
  input layer

19
Kohonen SOMs (2)
20
Kohonen SOMs (3)

• 1-D SOM has output neurons arranged as a string,
  with each neuron having two adjacent neighbors
• 2-D SOM has output neurons arranged as an 2-D
  array, with more flexible definition of
  neighborhoods

21
Kohonen Learning Algorithm (1)

• Competitive rule
• wj(n 1) wj(n) ?j,j(n) ?(n) x(n) wj(n)
• ?j,j neighborhood function for winning neuron
  j
• A common neighboring function is the Gaussian
• ?j,j(n) exp(- dj,j2 / 2s(n)2)

22
Kohonen Learning Algorithm (2)

• Initialization Choose random values for the
  initial weight vectors. Make sure the weights for
  each neuron are different and of small magnitude
• Sampling and similarity matching select an input
  vector x. Find the best-matching (winning) neuron
  at time n, using the minimum-distance Euclidean
  criterion.
• Updating adjust the weight vectors using the
  Kohonen learning rule
• Continuation Repeat the previous two steps until
  no noticeable changes occur in the feature map
  are observed

23
Example (1)

• Create a 1-D feature map of a 2-D input space.
  The input vectors x lie on a unit circle.
• No. of inputs 2 (defined by the problem, 2-D)
• No. of outputs 20 (our choice, 1-D linear array
  or lattice)
• Randomly initialize the weights so that each
  neuron has a different weight (in this example
  weights are initialized along the x-axis, i.e,
  the y component is zero)
• See the MATLAB code for details

24
Example (2)

• Consider the input x 0.7071 0.7071T
• Assume the current weights are
• W 0 019 0 0 0 1 0 2 0 30 19
• Winning neuron is the one with smallest norm from
  the input vector
• Winning neuron is 2 (weight vector w2 0 1T)
• Norm (0.70712 0.29292)1/2 0.7674 (this is
  the smallest distance from the weight vectors)
• Update of weights
• wj(n 1) wj(n) ?j,j(n) ?(n) x(n)
  wj(n)
• Assume Gaussian neighborhood function with
  variance of 0.5

25
Example (3)

• Neuron 1
• w1(n 1) w1(n) ?1,2(n) ?(n) x(n) w1(n)
• 0 0 0.3679(0.7071 0.7071 0 0)
• 0.2601 0.2601
• Neuron 2 (winning neuron)
• w2(n 1) w2(n) ?2,2(n) ?(n) x(n) w2(n)
• 0 1 (1)(0.7071 0.7071 0 1)
• 0.7071 0.7071

26
Example (4)

• Neuron 3
• w3(n 1) w3(n) ?3,2(n) ?(n) x(n) w3(n)
• 0 2 0.3679(0.7071 0.7071 0 2)
• 0.2601 1.5243
• Neuron 4
• w4(n 1) w4(n) ?4,2(n) ?(n) x(n) w4(n)
• 0 3 0.0183(0.7071 0.7071 0 3)
• 0.0129 2.9580
• Neuron 5 and beyond
• There update will be negligible because the
  Gaussian tends to zero with increasing distance
