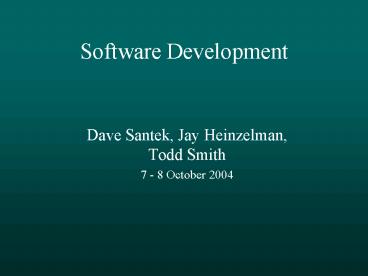

Software Development

1
Software Development

• Dave Santek, Jay Heinzelman, Todd Smith
• 7 - 8 October 2004

2
Overview

• McIDAS 2004 Upgrade
• Software Development in 2004
• Software Plans for 2005
• GUI Update

3
McIDAS 2004 Upgrade

• MSG server
• AIRS server
• MODIS file naming convention
• netCDF server changes
• GEO with DAY TIME
• PRDUTIL using ADDE datasets

4
MSG Server
5
Aqua AIRS Server
Image file directory listing forAIRS/L1B Pos
Satellite/ Date Time Center
Res (km) Image_Size sensor
Lat Lon Lat Lon ---
------------- ------------ -------- ---- ----
----- ----- ------------ 41 AIRS-L1B 1
OCT 03274 073600 34 86 Band1 -1262
WL15.40- 8.80 WN 649.48-1136.37 17.79 13.38
135 x 90 Band1263-1864 WL 8.22- 6.20
WN1216.70-1613.46 17.79 13.38 135 x 90
Band1865-2378 WL 4.58- 3.75
WN2181.01-2664.65 17.79 13.38 135 x 90
proj 0 created 2003274 73600 memo
typeAIRS cal typeRAD offsets data
49880 navigation 256 calibration 768
auxiliary 1280 doc length 0 cal
length 0 lev length 0 PREFIX 0
valcod 0 zcor 0 avg-smp N lcor
1 ecor 1 bytes per pixel 4 ss200
Resolution Factors (base1) Line 1.0
Element 1.0
6
Aqua AIRS Server
7
File Naming Convention

• MODIS Level 1b HDF server
• GSFC DAAC convention
• MOD021KM.Ayyyyddd.hhmm.002.yyyyddd.hdf
• IMAPP convention
• t1.yyddd.hhmm.1000m.hdf
• netCDF image write server
• DIRFILE for output filenames

8
GEO with DAY TIME
9
PRDUTIL
Image file directory listing forA
Pos
Satellite/ Date Time Center
Res (km) Image_Size sensor
Lat Lon Lat Lon
--- ------------- ------------
-------- ---- ---- ----- ----- ------------
32 G-12 SND 5 OCT 04279 132000
19 54 Band
1 No Information Available
11.19 11.24 150 x 300 proj 0
created 2004279 154015 memo GOES SNDR EFF
CLOUD AMOUNT PROD typePRD cal
typeBRIT
offsets data 3328
navigation 256 calibration 2816 auxiliary
0 doc length 0 cal length 0
lev length 0 PREFIX 0
valcod 0 zcor 0 avg-smp A
lcor 5221
ecor 9343 bytes per pixel 1 ss 79
Resolution Factors
(base1) Line 11.0 Element 11.0
IMGLIST done


Current
Calibration Block Segments In File

Output Input
Product Product
Brit Brit
Num Type low high low high
Units Scale Missing Val
--- ---- -------- -------- ----- ----- -----
----- ----------- 1 PROD
1 100 78 255 1 99999
2 ECAT 1 100 78
255 1 99999
3 CLDT 245 320 75 1 Kged
1 99999
10
McIDAS 2004 Upgrade

• AVHRR Level 1b Write Server
• NOAA-KLM 10-bit
• LALO or orbit navigation
• GeoTIFF Write Server
• Type 5 McIDAS Areas

11
AVHRR Level 1b
Read server has option to use lat/lon nav
grid Write server compatible with SAA data
12
GeoTIFF
13
Type 5 McIDAS Area

• Unlimited number of bands
• Consecutive band numbering
• No band map in prefix
• Not fully tested with all non-ADDE commands

14
McIDAS 2004 Upgrade

• PTDISP/SFCPLOT/RAOBPLOT variable color by value
• PTDISP/SFCPLOT WMO weather symbols
• PTLIST format options
• MAP LLMARK LABEL
• GRDDISP over dateline

15
Color by Value
16
WMO Symbols
17
PTLIST Format
PTLIST RTPTSRC/SFCHOURLY PARLAT LON
LATDEG
LONDEG
--------- ---------

48.2666 92.4836



PTLIST
RTPTSRC/SFCHOURLY PARLAT LON FORMATDM DM
LATDEG LONDEG

-------- --------

4816 9229



PTLIST RTPTSRC/SFCHOURLY
PARLAT LON FORMATDMS DMS
LATDEG LONDEG

---------- ----------
481600
922901


18
MAP
LLMARK YES LABELEASTPOS
19
Improved Display over Dateline
20
McIDAS 2004 Upgrade

• NAVCALC with IMC
• ZA centering issues resolved
• FRMSAVE image/graphic toggle update
• Programmers Manual updated Oct. 2003
• McIDAS-XRD
• ADVDISP
• IMGPROC

21
NAVCALC
NAVCALC EASTL/CONUS SP TYPEI
Location of
G-12
daynum date time
latitude longitude
2004279/05-Oct-04 163145 000000
0750000

NAVCALC EASTL/CONUS SP
TYPEI IMCOFF
Location of G-12

daynum date time latitude
longitude
2004279/05-Oct-04 163145 001741
0742403
22
ZA
23
ADVDISP
24
IMGPROC

• Point spread function
• Running average
• Block average
• Block median

25
McIDAS 2004 Upgrade

• ADDE ports
• All transactions through port 112
• MCCOMPRESS keyword to control compression GZIP,
  COMPRESS, NONE
• ADDE servers on Windows XP
• ADDE dataset restrictions

26
ADDE Access Control

• Control access to machine, group name, descriptor
  name
• Restrict by user, IP address, project number
• If a control file does not exist, all users have
  access.
• If a control file exists, the list is inclusive

27
Software Development in 2004

• MSG multi-band transfer
• Lat/lon nav grid for area server
• AMSR-E HDF image server (exp.)
• SSM/I netCDF image server (exp.)
• TRMM netCDF image server (exp.)
• GRDDISP color plot by value and vectors
• PTDISP color plot vectors

28
AMSR-E
87 GHz Channel
29
SSM/I
85 GHz Channel
30
TRMM
TMI 85 GHz Channel
31
GRDDISP
32
PTDISP
33
Software Development in 2004

• NAVDISP swath coverage for TLE navigation
• IMGFILT with SPOT
• Grid file mask

34
NAVDISP
Terra MODIS swath coverage
35
IMGFILT
Spot filter
36
Software Plans for 2005

• AWIPS read and write netCDF image server
• GRIB read server
• IMGLIST/FRMLABEL with time zone specification
• McIDAS-XRD
• IMGCONV
• IMGMAKE

37
Time Zone Specification
Image file directory listing forEASTL/CONUS Pos
Satellite/ Date Time Center
Band(s) sensor CDT
Lat Lon --- ------------- ------------
-------- ---- ---- ------------ 4 G-12 IMG
Tue Oct 05 0202 PM 32 87 1-4,6 3
G-12 IMG Tue Oct 05 0145 PM 14 72
1-4,6 2 G-12 IMG Tue Oct 05 0115 PM
14 72 1-4,6
38
McIDAS-XRD for 2005

• IMGCONV
• Visible brightness normalization
• Water vapor limb darkening correction
• IMGMAKE
• Binary and TIFF as input
• 1, 2, or 4 bytes/pixel
• Scale data, table lookup

39
McIDAS-X GUI Update

• Moveable Toolbars
• Toolbars can be displayed on top or bottom or
  they can be hidden
• Shortcut Buttons
• Display 1-10 buttons at a time
• Added menu button option
• Added tool tips popup text

40
GUI Update

• Scheduler GUI
• All functionality of SKU, SKE, SKL, and SKED
  commands
• Command History GUI
• Commands written to MCCMDHIST.TXT
• Size of text file limited to -ih flag in
  .mcidasrc
• GUI allows searching, modification, and running
  of McIDAS commands

41
GUI Update

• Right-click functionality of Graphics buttons
• Turn off GUI command echoing
• Configuration GUI
• Added front page
• New check box to display Configuration GUI each
  time McIDAS is started
