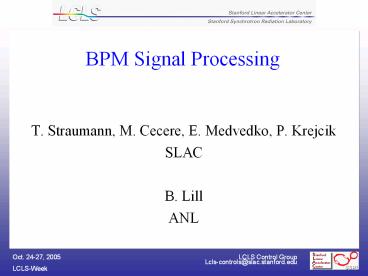

BPM Signal Processing

1
BPM Signal Processing

• T. Straumann, M. Cecere, E. Medvedko, P. Krejcik
• SLAC
• B. Lill
• ANL

2
Overview for Stripline BPMs

• Requirements/Engineering Constraints
• Status
• Current Frontend Design
• Timeline for next 12 months

3
Objective

• High precision/resolution BPM Electronics
• 5um resolution (R 12mm)
• drift lt 5um/h
• low bunch charge 0.2..1nC
• Stripline sensitivity V (a-b)/(ab) 2 r /
  R
• dynamic range gt 60dB 20dB

4
Engineering Constraints

• SNR expressed as position noise (LINAC
  Stripline 150MHz)
• dB r/1um NF dB q/1nC - ½ dB
  BW/1MHz 8dB gt NF 14dB(.2nC)
  10dB (10MHz)
• noise figure including cable losses
• stripline signal level based on estimation

5
Baseband vs. Mixer

• Baseband
• Simpler
• Cheaper
• Use existing cables (?)
• Only marginally meets resolution requirements

• Mixer
• More signal at higher freq.
• Proven solution
• ADC performs better at IF
• LO generation distribution
• New cables in LINAC needed

6
System Overview
Calibration scheme does not require extra
cables Direct digitization
7
Status

• VME Digitizers basic driver software available
• Echotek
• Joerger
• SIS
• New card ordered (13ENOB, 130MSPS, 700MHz input
  BW)
• First frontend design prototype (E. Medvedko)
• Engineer hired (M. Cecere)

8
Frontend

• f0 150MHz (enough signal, ADC still well
  performing)
• Low noise, 10MHz BW
• Low distortion
• Alias suppression
• Build Prototype
• Test (noise, stability, out-of band performance,
  linearity)
• Final Design
• Interface (form factor, control signals, status
  monitors)
• Calibration

9
BPM Analog Front EndBaseband Design
BPF2
BPF1
Signal from BPM or Hybrid
Frequency Selection Filter
Band Pass Filter
Undersampling ADC
Final Amplifier
Low Noise Amplifier
10
Baseband DesignComponent Selection Criteria
BPF2
BPF1

• Freq./BW determine SNR
• Low Insertion Loss
• Good OOB rejection

• Sharp Rolloff (Anti- alias)
• Flat Passband

• gt 119MSPS
• High Dynamic Range
• BWgt 200MHz

• Low NF
• Low Distortion
• Moderate Gain

• High GainBW
• Low Distortion
• _at_ High Output Level

11
Timeline (Injector only)
12
Calibration Bench Test

• Measurement setup (not worse than required
  stability!!)
• Test stability of calibration (splitters, BPM
  striplines)
• Cross-talk issues?
• Repeatability
• Multiplexing (t/f)
• Final design, integration

13
LCLS Cavity BPM Overview

• RF BPM system current status
• Planning for prototype testing
• Planning for 8 LTU BPMs electrically identical to
  those in the undulator.
• Planning for 33 undulator BPMs

14
Miteq X-Band Low Noise Receiver

• Existing product line
• WR 75 Waveguide Interface
• Low Noise Figure (2.7 dB)
• Prototype delivery date 12/10/05
• Budgetary price for prototype 6500.00 (for 3
  channels)

15
Prototype Receiver Specification
Parameter Specification Limit Condition
RF Frequency 11.364 GHz 20.0 Celsius Dx, Dy, Intensity
Input Peak Power 50 watts peak No damage (limiter protection)
LO Frequency 11.424 GHz (2856 MHz4) 20.0 /- 0.2 Celsius 1nC, 1mm offset, 200fs BL
LO Power Range 10 dBm Max. Provide LO for 3 down converters
IF Frequency 60 MHz Min. 20.0 /- 0.2 Celsius
Noise Figure Dx and DY 2.7 dB Max. 20.0 /- 0.2 Celsius
Noise Figure Intensity (reference) 4.0 dB Max. 20.0 /- 0.2 Celsius
LO to RF Isolation 40 dB Min. 20.0 Celsius
LO to IF Isolation 45 dB Min. 20.0 Celsius
Output Power 14 dBm 1 dB compression
Conversion Gain 25 dB typical 20.0 Celsius
16
Long Lead Item Status

• Receiver Prototype del. 12/10/05
• Local oscillator del. 11/24/05
• Waveguide del. 12/1/05
• Waveguide calibration kit del. 12/9/05
• CPI Vacuum windows 11/30/05

17
BPM System Test Approach

• Phase I
• Injector Test Stand ITS
• Install single X-Band Cavity and modified
  off-the-shelf down converter receiver
• Mount BPM on Piezo two-axis translation stage

• Phase II
• Bypass line test with PC gun
• Install three X-Band Cavities BPMs
• Bypass line test with PC gun to start June 06

18
Injector Test Stand ITS Beam Parameters

• Charge- 1 nC single-bunch
• Bunch length- 3 - 4 ps FWHM for ps laser
• Spot size on final screen at 5.5 MeV 0.75 mm
  rms, ps laser

19
Phase I Data Acquisition Design Approach

• Instrument three channel down converters with
  Struck SIS-3301-105 ADCs 14-bit
• Single VME board will provide the data
  acquisition for 8 channels
• Epics driver complete
• Digitize horizontal, vertical position and
  Intensity 0 to 1 volt range
• Fit Data to decaying exponential at 60 MHz

20
Phase I Testing Objectives

• Test prototype Cavity BPM, down converter, and
  data acquisition
• Generate preliminary compliance table to
  specification
• Gain operational experience to determine if
  translation stage is useful, what are optimum
  operating parameters

21
Phase I Schedule Milestones

• Design and develop prototype Cavity BPM
• Prototype non vacuum
• Nov 05
• Build single Cavity BPM
• Dec 05
• Cold Test
• Dec 05
• Install cavity BPM into ITS and Test
• Jan 06

22
Phase II Schedule Milestones

• Refine design and develop First Article Cavity
  BPM and support hardware
• Jan 06
• Build 3 Cavity BPMs
• Mar 06
• Cold Test
• May 06
• Install cavity BPM into APS PAR/Booster bypass
  line and Test
• June 06

23
Phase II Testing Objectives

• First Article Prototypes evaluated
• Test three BPM separated by fixed TBD distance to
  determine single-shot
• Complete test matrix

24
LTU and Undulator Planning

• Receiver and LO housed in shielded enclosure
  below girder 20 watt power dissipation maximum
• Presently BPM output on wall side
• BPM output flexible waveguide section allows
  movement for alignment

25
BPM Mounting

• BPM connects directly to the girder.
• Mechanical translation stage used for alignment
• BPM and Quad can be pre-aligned independently
  with respect to each other

26
Undulator Planning
27
Backup slides
28
Baseband DesignComponents
Alias image _at_ 30MHz
BPF2
BPF1
Cable NF 2-4dB
NF 3dB
NF 2-4dB
LTC2208 130MSPSmax 16-bit 700MHz
BW fsamp119MHz Req. jitter lt 350fs --------------
------- AD6645 105MSPSmax 14-bit 200MHz
BW fsamp102? Req. jitter lt 600fs
fo 150MHz BW 10MHz Lark Engineering MS140-20-3
CC Insert. Loss 5.8dB --------------------------
TTE filters KB3T-150M-10M-50-3A Insert. loss
4.1dB -------------------------- Microwave Filter
Co. 3MB10-150/10-SF/SF-1 Insertion loss 3dB
TI OPA847 GBW 3.9GHz Distortion -105dBc
Sirenza SGA-6589 G 26dB NF 3.0dB OIP3
33dBm ------------------- Sirenza SGA-4363 G
18dB NF 3.1dB OIP3 29dBm
Sawtek 854916 fo 150MHz BW 10MHz Insert. loss
11dB
29
Final output
BPM signal
Input signal
Cable losses
LNA
BPF2
BPF1
Frequency MHz
30
43MHz
400-800MHz
BPM
ADC
LNA
RF
IF
or Hybrid
LO
119MHz
Minicircuits ZFM-2 1 1000 MHz Conv Loss
5.8dB
31
mixer
BPM signal
After coax
LNA
BPF1
BPF2
Frequency MHz
32
Software Tasks

• Evaluation / test software
• BPM Processor
• Processing algorithm
• Real-time tasks
• data acquisition and processing
• timing
• history buffers
• Calibration
• Integration (SLC-aware IOC, timing, feedback)
• Slow controls (gain, calib, status monitors,
  alarms)

33
Integration Hardware

• Clock generation and distribution
• Timing triggers/gates
• Calibration signal generation and distribution
• Controls gain, calib. mux
• Power
• Status monitors

34
Integration Software

• Timing
• SLC-aware layer
• Shot-to-shot feedback
• High-level applications (EPICS database)
• Naming
• Real-time
• Sysadmin infrastructure network

35
PDRO local oscillator

• 11.424 GHz
• (119 MHz x 96)
• Phase lock to 119 MHz ref 0 dBm /- 3 dB
• 13 dBm output power
• In-Band Spurs lt70 dBc
• Phase noise depends on 119 MHz reference

36
Noise Estimates
Parameter Value
Thermal noise -174 dBm/Hz
IF Bandwidth 20 MHz
Noise in-band -101 dBm
Receiver 1 dB compression 14 dBm
Receiver gain 25 dB
Receiver noise figure 2.7 dB

• Sensitivity
• -58 dBm/0.2nC/1?m
• Minimum bit size 16 bits/micron_at_ 0.2nC
• Assumes 2 gain ranges for 75 dB
• Noise floor lt200 nm rms

37
APS Test Objectives

• Develop a cavity BPM that meets system
  requirements and can be manufactured economically
• Develop simulation model that correlates to
  prototype data
• Transition from prototyping to production

38
ITS Installation
39
Cost Savings

• Reduce the dipole cavity outputs from 4 ports to
  2 ports
• Terminate the unused ports in vacuum
• Eliminate 2 transitions, 2 windows, waveguide, 2
  magic tees
• Prove resolution and offset performance
