Specification-Driven Development of an Executable Metamodel in Eiffel

1

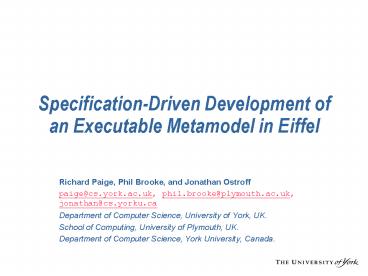

Specification-Driven Development of an Executable
Metamodel in Eiffel

• Richard Paige, Phil Brooke, and Jonathan Ostroff
• paige_at_cs.york.ac.uk, phil.brooke_at_plymouth.ac.uk,
  jonathan_at_cs.yorku.ca
• Department of Computer Science, University of
  York, UK.
• School of Computing, University of Plymouth, UK.
• Department of Computer Science, York University,
  Canada.

2
Motivation

• Test-driven development (TDD) due to Beck is
  increasingly popular for building systems with
  reliability and maintainability requirements.
• Three steps
• Write a test (which will fail).
• Write enough code to make the test pass.
• Refactor the code to eliminate redundancies and
  design flaws.
• TDD uses tests as specifications that drive the
  development process.
• Two main limitations code-based only and tests
  have expressiveness limitations.
• Despite these limitations, we claim that TDD
  could be useful for building metamodels, which
  are systems with substantial reliability and
  maintainability requirements.
• But how do we deal with the above limitations?

3
Specification-Driven Design

• A model-driven extension of TDD.
• With this approach, models (with contracts) and
  tests can be used to drive the design process.
• The rest of the presentation
• A very short overview of SDD.
• An overview of its application in building an
  executable metamodel in Eiffel.
• The key idea in SDD for metamodeling, a test is
  an encoding of a model (in Eiffel).
• Running the test automatically checks the model
  against the (partial, incomplete) metamodel.
• So the development process also gives us a
  framework for fully automatic conformance
  checking of models against metamodels.

4
SDD

• SDD is an integration of TDD and Meyers
  Design-by-Contract (DbC).
• Start anywhere - writing tests, contracts, etc.
• Emphasis is always on producing compilable and
  executable code.
• Some tests (collaborative specifications) are
  scenarios.

5
Design-by-Contract

• Annotate classes with properties, and methods of
  classes with pre/postconditions.
• These properties are the best form of
  documentation they execute with the code, and
  are guaranteed to be consistent with the code.
• Example of a class in Eiffel
• class MATH feature
• square_root(x DOUBLE) DOUBLE is
• require xgt0
• do -- your algorithm goes here, e.g.,
  Newton's method
• ensure
• (ResultResult - x).abs lt epsilon
• epsilon old epsilon
• end
• epsilon DOUBLE -- accuracy
• invariant
• 0 lt epsilon and epsilon lt 0.001
• end -- MATH

6
Some Observations about SDD

• Though one can start development with writing
  contracts, there are reasons to prefer writing
  tests first.
• Closure a unit test gives you a clear stopping
  point write enough code to get it to work.
  Contracts may allow unnecessary design.
• Collaborative specification-friendly tests can
  formalise instances of collaborations more
  easily. Consider LIFO property of stacks --
  difficult to specify using contracts, easy using
  tests.
• In summary
• Contracts are good for fleshing out the design
  while making assumptions explicit.
• Contracts spell out assumptions more completely,
  and often more concisely, than unit tests.
• Tests are good for writing collaborative
  specifications, and as such are more likely to be
  used early in development.

7
SDD of a Metamodel in Eiffel

• The metamodel is equivalent to a subset of UML,
  consisting of class and collaboration diagrams.
• The class diagrams include an OCL-like contract
  language for pre/post/invariants.
• From this, we automatically generated Eiffel
  class stubs.
• Methods were extended with simple preconditions
  to ensure non-NULL arguments.

8
Writing Acceptance Tests

• The SDD process continued by writing acceptance
  tests.
• One test per metamodel well-formedness
  constraint.
• Tests took the form of simple Eiffel programs
  that encoded models that either satisfied or
  invalidated constraints.
• e.g., a test generating a model with an
  inheritance cycle, a test generating a model with
  clashes in a namespace.
• Constraints were prioritised based on complexity
  and our opinion of how essential it was to
  capture immediately.
• e.g., constraint ensuring valid method calls in
  assertions was postponed for three iterations
  (existing tools could handle it initially).
• e.g., cycle-free property for aggregation was
  first iteration since it involved constraints on
  graphical syntax.

9
Example Model Encoding Test

• class ACCEPTANCE_TEST inherit UNIT_TEST
• creation make
• feature ANY
• no_aggregation_cycles BOOLEAN is
• local a, b, c E_CLASS
• c_to_a, a_to_b, b_to_c AGGREGATION
• m MODEL
• do
• create a.make("A") create b.make("B")
• create c.make("C")
• create c_to_a create a_to_b create
  b_to_c
• create m.make
• ...
• c_to_a.set_source(c) c_to_a.set_target(a)
• b_to_c.set_source(b) b_to_c.set_target(c)
• a_to_b.set_source(a) a_to_b.set_target(b)
• ...
• m.prepare
• Result true

10
Encoding Constraints in Eiffel

• We used Eiffels declarative specification
  technique - agents - to capture constraints.
• This promotes understandability, readability, and
  direct mapping from OCL/OCL-like constraints to
  code.
• Example
• no_inheritance_cycles BOOLEAN is do
• Result closure.for_all((i1INHERITANCE)
  BOOLEAN do
• Result closure.for_all((i2 INHERITANCE)
  BOOLEAN do
• -- return true iff i1 and i2 do not form a
  cycle
• Result not (i1.sourcei2.target and
• i1.targeti2.source)
• end) end) end
• Clauses like the above are added to class
  invariants, to be checked when unit tests are
  run.
• Each constraint is implemented within the SDD
  process.

11
Gaps between Tests and Code

• Occasionally the gap between the unit test
  (capturing a model) and the agent-based code
  needed was substantial.
• e.g., checking that method calls were legitimate
  according to a classs information hiding policy.
• The simple case (single-dispatch) was
  straightforward to test and implement.
• The fun case (multi-dispatch) was initially
  missed (a unit test failed).
• Added additional agent code, which duplicated
  much of the original agent code for single
  dispatch.
• Refactored this.

12
Some Observations

• Useful approach.
• We emphasised the TDD parts of SDD.
• Contracts were predominantly for guarding routine
  calls (i.e., preconditions) and for capturing
  invariants.
• Sometimes contracts got very complex, e.g., for
  checking covariant overriding.
• In this case we wrote a unit test with a simple
  example of covariance overriding, and refactored
  the agent code.
• This was much simpler because we could use
  sequencing to capture the well-formedness
  condition.
• Generally, minimal class-level refactoring was
  done wed need this if we added new views.
• Deliverable a testing suite as application
  evidence for correctness of the metamodel.

13
Conclusions and Future Work

• Fast, reliable way to build executable
  metamodels.
• Useful to be able to switch between testing and
  modeling.
• Side-effect we can fully automatically check
  models for conformance to the metamodel.
• Further work
• Improving support for encoding contracts within
  the metamodel. Its not easy to use right now.
• Adding a state chart view.
• Additional metamodels, particularly MOF.

14
Conclusions

• Contracts and tests both make useful forms of
  specification.
• They are complementary and can be used
  synergistically.
• Contracts are good at making design decisions
  explicit (but be sure to keep these in your
  code).
• Tests can express collaborations more easily, and
  appear to be more useful early in the design
  process.
• Contracts dont reduce the amount of tests that
  need to be written.
• Its easy to underspecify contracts, or simply
  get them wrong.
• Need tests to catch these errors.
