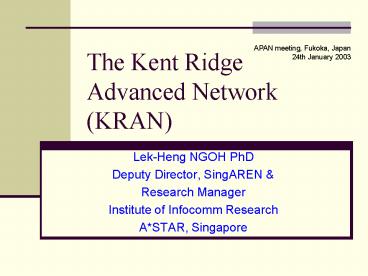

The Kent Ridge Advanced Network (KRAN)

1
The Kent Ridge Advanced Network (KRAN)
APAN meeting, Fukoka, Japan24th January 2003

• Lek-Heng NGOH PhD
• Deputy Director, SingAREN
• Research Manager
• Institute of Infocomm Research
• ASTAR, Singapore

2
Goal

• To research and develop an advanced
  IP-over-optical network infrastructure with
  support for grid computing

3
Approach

• Work Focuses on the following Layers
• Advanced IP Layer
• Optical Layer
• Grid Middleware Layer

4
Approach

• Design and setup optical testbed
• Test and evaluate three emerging LAN/WAN
  technologies GE, POS and RPR
• Trial and study of optical plane signaling and
  control solutions
• Evaluate and test KRAN with grid middleware
  applications
• Conclusion

5
Timeline
Tender Process optical technologies selection
KRAN Formation
Network design
1 Mar KRAN launch
13 May CSCO/SCSSolutionImplemented
25 Apr KRAN kick-off1st SCM
15 Mar ASTAR grant
12 Apr Closed Tender
Network connectivity, IP addressing and
configuration
Detailed Test plans logistics planning
Staging Tests
Project Planning
1 Jul Officialstaging
10 Jul Equipment Arrival
11 Jul 1st power up test
18 Jul 2nd SCM
1 Jun BII-trainee
6
Time Schedule
Outdoor tests
Late Dec to Early Jan 03
Early Mar 03
End Aug 03
Early Oct
Early Nov
Early Dec
Complete RPR indoor
Complete POS indoor
Complete GE indoor
Deployment
Complete outdoor tests
Application tests
Items in red are completed. The progress of the
KRAN project is on schedule.
7
KRAN Project Working Group

• Wong Yew Fai (CC)
• Wong Chiang Yoon (LIT)
• Nigel Teow Teck Ming (BII-CC)
• Cisco Systems
• SCS (Singapore) Ltd,

8
(No Transcript)
9
Detailed Physical Map
NUS, CC
IMCB
NUS, EE
SoC
I2R, BII
10

• The IP Layer

11
Staging Connections
AC-DC
15194
10720
10720
SMB
SMB
Attenuator
10720
12
Deployment Connections
AC-DC
10720
15194
SMB
0.75km
NUS
Fibre Drum
1km
10720
10720
SMB
13
Addressing and Naming
172.18.44.0/24 Loopback 0 to 31 Backbone 32 to
63 CC 64 to 127 I2R 128 to 191 SOC 192 to 254
172.18.36.1
172.18.36.252
Switch (.1)
33
/30
34
66
CC (.2)
41
37
/30
/30
42
38
130
/30
I2R (.3)
SOC (.4)
194
44
45
14
Project Plans

• 9 main major items to test
• Throughput/Delay/Loss/Jitter
• QoS
• Fault Recovery
• Service Provisioning
• Network Management
• IP support
• Multicast
• MPLS
• Others

15
Apparatus Used

• SmartBits as Traffic Generator
• SmartFlow software to drive SmartBits
• 3 x 10720 routers
• 1 x ONS15194 IP traffic aggregator
• 6 x 15km fiber drums
• 6 x 10dB attenuators
• Relevant fiber patch cords
• Optional Catalyst 3550 switches

16

• Test Matrices

17
Item 1- Throughput
Test Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) Distance (km) 1 15 1 15 1 15
Throughput, Delay, Jitter, Loss Raw Multicast ? ? ? ? ? ?
Throughput, Delay, Jitter, Loss Raw Unicast ? ? ? ? ? ?
Throughput, Delay, Jitter, Loss UDP UDP ? ? ? ? ? ?
Throughput, Delay, Jitter, Loss TCP Single Conn. ? ? ? ? ? ?
Throughput, Delay, Jitter, Loss TCP Multiple Conn. ? ? ? ? ? ?
May subject to changes
18
Network Performance (4)

• Throughput Packets sent w/o lost
• Thruput is better for large frame sizes
• Limitation of router to handle too many
  packets/sec
• For large frame sizes, thruput approaching line
  rate

19
Network Performance (5)

• As loading inc, frame lost inc.
• Frame Lost is huge and starts at low loading
  conditions for small frame sizes
• Same reasoning router limitation
• For large frame sizes (gt512 bytes), lost is about
  7 at 2.6G loading.

20
Network Performance (6)

• As loading inc, latency inc.
• Again, large frame sizes outperform small frame
  sizes
• 3 platforms
• Lowest is minimum time it takes packets to
  traverse about 22.5km
• 2 other queues (e.g. interface and processor)

21
Network Performance (7)

• As loading inc, latency dev inc. (intuitive)
• Similarly, large frame sizes outperform small
  frame sizes (router limitation)
• Platforms also evident due to queuing inherits
  from the latency graphs earlier

22
Network Performance (8)

• What is presented is only a portion of the
  experiments conducted.
• Other experiments include
• Using attenuators, instead of fiber drums
• Stressing the GE/FE module instead of the RPR
  module
• Driving symmetric traffic (1.3 1.3) rather than
  asymmetric traffic (2 0.6)
• TCP/UDP/IP testing

23
Network Performance (9)

• Some conclusions include
• Fibre drum (7db) results better than attenuator
  (10dB) results
• GE/FE module does not handle 2.6G of input
  traffic and creates a bottleneck even before
  packets can be sent out of RPR interface.
• No difference between TCP/UDP in terms of frame
  loss, latency and latency standard deviation.
• Multiple TCP flows and single TCP flows do not
  affect performance.

24
Throughput Test

• POS results poor (hardware card related)
• RPR better for larger frame sizes.
• GE seemingly better for smaller frame size.
• GE (routers) worse than GE (switches) because of
  IP processing overheads

25
Frame Loss Test

• Related to throughput results
• RPR performs best at large frame sizes
• GE (switching) is generally better than other
  technologies (except RPR large frame size)
• POS results are the worst again due to hardware
  card.

26
Item 2 - QoS
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
QoS Voice ? ? ? ? ? ?
QoS Video ? ? ? ? ? ?
QoS Data ? ? ? ? ? ?
May subject to changes
27
Example Test Item RPR QoS
KRAN07-R2-QoS-RPR.doc
10720
Configured SRP queues on all 10720s
10720 maps SRP/bits to appropriate traffic
2.4GB RPR Ring
10720
10720
0.48GB
SMB measures Throughput, Delay, Jitter, Loss
SMB measures Throughput, Delay, Jitter, Loss
28
Layer 2 QoS Testing (4)
HI
LO
7
0
5
6
7
7
0
0
80
20
Slicer
SRP 5 7 goes to HI queue, the rest goes to
default LO queue
SRP transmit interface
29
Item 3 - Fault
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
Fault Recovery Time Node ? ? ? ? ? ?
Fault Recovery Time Link ? ? ? ? ? ?
Fault Recovery Time Links ? ? ? ? ? ?
May subject to changes
30
Example Test Item RPR Fault
KRAN10-R1-QoS-fault.doc
10720
2.4GB RPR Ring
10720
10720
SMB measures Throughput, Delay, Jitter, Loss
SMB measures Throughput, Delay, Jitter, Loss
31
Fault Recovery

• RPR (IPS) recovers in less than 5ms, well within
  50ms telecom standard for voice.
• POS recovers in 7.5s
• GE (STP) recovers in almost 1 min.
• The GE (RSTP) recovers in about 1.65s.
• RPR is the clear winner

32
Item 4 Service Provisioning
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
Svc Provisioning Ease of node addition, removal, auto-configuration ?? ? ?? ? ?? ?
May subject to changes
33
Item 5 Network Management
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
Network Management SNMP MIBs ? ? ? ? ? ?
May subject to changes
34
Item 6 IP Support
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
IP Support Multicast ? ? ? ? ? ?
IP Support QoS ? ? ? ? ? ?
IP Support Reroute ? ? ? ? ? ?
May subject to changes
35
Item 7 Multicast
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
Multicast Layer 2 ? ? ? ? ? ?
May subject to changes
36
Item 8 - MPLS
Test Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) Distance (km) 1 15 1 15 1 15
MPLS VPN Layer 2 ? ? ? ? ? ?
MPLS VPN Layer 3 ? ? ? ? ? ?
MPLS Fast Reroute Fast Reroute ? ? ? ? ? ?
May subject to changes
37
Item 9 Others
Test Test GE GE POS POS RPR RPR
Distance (km) Distance (km) 1 15 1 15 1 15
Others Spatial Reuse ? ? ? ? ? ?
Others BW Fairness ? ? ? ? ? ?
May subject to changes
38
Optional Items

• IPv6
• Security Features
• Jumbo Frame Support

39
Time Table
Deploy best network
Switch-over
Mid-Jul End Aug(5 wks) Early Sep Mid Nov (10 wks) Mid Nov Mid Jan (8 wks) Mid Jan End Feb (6 wks) Mar03 Aug 03(6 mths)
MPLS, Svc Pro, Fault, IP Mcast, Mcast, IP reroute RPR POS GE Application Layer Projects
MPLS, Svc Pro, Fault, IP Mcast, Mcast, IP reroute QoS, IP QoS, IP reroute, MPLS VPN, Throughput/Delay, SNMP, SRP QoS, IP QoS, IP reroute, MPLS VPN, Throughput/Delay, SNMP, SRP QoS, IP QoS, IP reroute, MPLS VPN, Throughput/Delay, SNMP, SRP Application Layer Projects
Staging Deployment Deployment Deployment Application
40
Deliverables

• 1 x Safety Document (end July) - Done
• 1 x RPR indoor Test Report (mid Oct) - Done
• 1 x POS indoor Test Report (mid Nov) - Done
• 1 x GE indoor Test Report (mid Dec) Almost Done
• 1 x Staging Test Report (early Jan) in progress
• 1 x Final Report (End Apr)

41
Evaluation

• Inferring from the experimental results,
• GE is strong in Network Stress QoS Pricing
• POS is strong in Multicast
• RPR is strong in QoS Fault recovery
• If not for fault recovery, GE may be a good
  choice for many networks.

42
Evaluation

• However, a more systematic approach has been
  considered to determine the best of the three
  techs (RPR, POS, GE)
• For each category (e.g. stress, QoS, Fault
  recovery), ranking was given.
• Weights are assigned to each category depending
  on network requirements. (e.g. if the network
  requirement is strict on fault recovery times,
  then the fault recovery category will receive
  higher weigtage than other categories.)

43
Evaluation

• Fault Recovery

• A rank of 3 is better than 2, and 2 is better
  than 1

44
Evaluation

• Other categories (QoS, Stress, etc.) are ranked
  similarly. Table below briefly illustrates. The
  actual ranking has more details.

• NB A rank of 3 is better than 2, and 2 is better
  than 1

45
Evaluation

• Weights (example weights in blue) are assigned to
  each category depending on its importance on the
  user network.

46
Evaluation

• Preferred tech based score on the product of
  the two matrices (weight matrix and Tech Eval
  matrix).

47
Evaluation

• The table indicates that GE has the highest score
  of 30 and is the most desired tech for the given
  weights.

• Suppose weights were given to favour fault
  recovery timings more than pricing, RPR would
  have been the winner.

48
Conclusion

• All indoor tests have been completed.
• Experimental results were presented (fault
  recovery, stress test, QoS, multicast).
• All 10720 routers have been deployed at CC, SOC
  and I2R.
• Backbone connectivity between deployed nodes are
  up.
• Half the milestones were achieved and more than
  half of the deliverables were completed.
• Will commence outdoor tests.
• Evaluation of the best tech after comparisons
  were provided.
• GE -gt QoS, Stress, Pricing
• POS -gt Multicast
• RPR -gt QoS, Fault Recovery

49

• Optical Plane

50
Objectives

• To experiment and identify suitable optical
  network signalling and control software solutions
  (GMPLS, OGSI) for the following cross-layer
  activities
• traffic Engineering/QoS Management
• Fault Protection and Recovery
• To support Data-in-Network Research

51
GMPLS-based Control Plane Functions
VIN
Traffic Engineering
Protection Recovery
IP Channel (KRAN)
Optical Channel (ONFIG-GMPLS)
52
GMPLS Software
53
KRAN Optical Plane
54
KRAN Optical Node
55

• Grid Middleware Testing

56
Objectives

• 1.) To develop test methodologies and
  instrumentation techniques for the measurement
  and evaluation of Grid middleware performance
  over KRAN
• 2.) To further quantify key network parameters
  (fault recovery, QoS etc.) for the purpose of
  supporting Grid middleware and applications

57
(No Transcript)
58
Thank You!

• Questions?
