Welcome!%20APNIC%20DNS%20Workshop

1

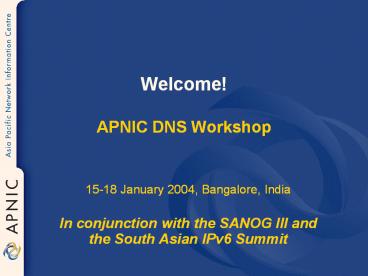

Welcome!APNIC DNS Workshop

• 15-18 January 2004, Bangalore, India
• In conjunction with the SANOG III and the South
  Asian IPv6 Summit

2
Introduction

• Presenters
• Champika Wijayatunga ltchampika_at_apnic.netgt
• Senior Training Specialist
• Arth Paulite ltarth_at_apnic.netgt
• Internet Resource Analyst
• Srinivas Chendi ltsunny_at_apnic.netgt
• Internet Resource Analyst
• lttraining_at_apnic.netgt

3
Acknowledgements

• Bill Manning
• Olaf M. Kolkman
• Ed Lewis
• Joe Abley

4
Overview

• 15 Jan
• 9.30am - Start
• DNS concepts I
• TEA BREAK (10.30am - 11.00am)
• DNS concepts II
• BIND installation
• LUNCH (1230pm 200pm)
• Lab 1 BIND Installation
• Recursive Server
• TEA BREAK (300pm 330pm)
• Lab 2 Recursive Server

5
Overview

• 16 Jan
• 9.30am - Start
• Lab 3 Configuring Domains
• TEA BREAK (10.30am - 11.00am)
• DNS Registries
• LUNCH (1230pm 200pm)
• Troubleshooting I (dig, traceroutes, nslookup,
  ethereal)
• Reverse DNS
• TEA BREAK (300pm 330pm)
• Configuring the Reverse domain
• Lab 4 Reverse DNS
• IPv6 reverse DNS

6
Overview

• 17 Jan
• 9.30am - start
• RNDC TSIG
• TEA BREAK (10.30am - 11.00am)
• Lab 5 - RNDC TSIG
• LUNCH (1230pm 200pm)
• DNSSEC Presentation
• TEA BREAK (300pm 330pm)
• Lab 6 - Troubleshooting

7
Overview

• 18 Jan
• 9.30am - start
• Secured Dynamic Updates
• TEA BREAK (10.30am - 11.00am)
• Lab 7 Secured Dynamic Updates
• LUNCH (1230pm 200pm)
• Creating the whole DNS hierarchy
• TEA BREAK (300pm 330pm)
• Lab 8 - Creating the whole DNS hierarchy

8
Introduction to DNS

9
Purpose of naming

• Addresses are used to locate objects
• Names are easier to remember than numbers
• You would like to get to the address or other
  objects using a name
• DNS provides a mapping from names to resources of
  several types

10
Names and addresses in general

• An address is how you get to an endpoint
• Typically, hierarchical (for scaling)
• 950 Charter Street, Redwood City CA, 94063
• 204.152.187.11, 1-650-381-6003
• A name is how an endpoint is referenced
• Typically, no structurally significant hierarchy
• David, Tokyo, itu.int

11
Naming History

• 1970s ARPANET
• Host.txt maintained by the SRI-NIC
• pulled from a single machine
• Problems
• traffic and load
• Name collisions
• Consistency
• DNS created in 1983 by Paul Mockapetris (RFCs
  1034 and 1035), modified, updated, and enhanced
  by a myriad of subsequent RFCs

12
DNS

• A lookup mechanism for translating objects into
  other objects
• A globally distributed, loosely coherent,
  scalable, reliable, dynamic database
• Comprised of three components
• A name space
• Servers making that name space available
• Resolvers (clients) which query the servers about
  the name space

13
DNS Features Global Distribution

• Data is maintained locally, but retrievable
  globally
• No single computer has all DNS data
• DNS lookups can be performed by any device
• Remote DNS data is locally cachable to improve
  performance

14
DNS Features Loose Coherency

• The database is always internally consistent
• Each version of a subset of the database (a zone)
  has a serial number
• The serial number is incremented on each database
  change
• Changes to the master copy of the database are
  replicated according to timing set by the zone
  administrator
• Cached data expires according to timeout set by
  zone administrator

15
DNS Features Scalability

• No limit to the size of the database
• One server has over 20,000,000 names
• Not a particularly good idea
• No limit to the number of queries
• 24,000 queries per second handled easily
• Queries distributed among masters, slaves, and
  caches

16
DNS Features Reliability

• Data is replicated
• Data from master is copied to multiple slaves
• Clients can query
• Master server
• Any of the copies at slave servers
• Clients will typically query local caches

17
DNS Features Dynamicity

• Database can be updated dynamically
• Add/delete/modify of any record
• Modification of the master database triggers
  replication
• Only master can be dynamically updated
• Creates a single point of failure

18
Concept DNS Names

• The namespace needs to be made hierarchical to be
  able to scale.
• The idea is to name objects based on
• location (within country, set of organizations,
  set of companies, etc)
• unit within that location (company within set of
  company, etc)
• object within unit (name of person in company)

19
Concept DNS Names contd.

• How names appear in the DNS
• Fully Qualified Domain Name (FQDN)
• WWW.APNIC.NET.
• labels separated by dots
• DNS provides a mapping from FQDNs to resources of
  several types
• Names are used as a key when fetching data in the
  DNS

20
Concept DNS Names contd.

• Domain names can be mapped to a tree
• New branches at the dots

Root DNS
dots
net
edu
com
isi
apnic
whois
www
ftp
whois
21
Concept Resource Records

• The DNS maps names into data using Resource
  Records.
• More detail later

Resource Record
www.apnic.net. A 10.10.10.2
Address Resource
22
Concept Domains

• Domains are namespaces
• Everything below .com is in the com domain
• Everything below apnic.net is in the apnic.net
  domain and in the net domain

23
Concept Domains

com
net
edu



google
sun
apnic
tislabs
isi

moon

whois
www
www

ftp
ws1
ws2
24
Delegation

• Administrators can create subdomains to group
  hosts
• According to geography, organizational
  affiliation or any other criterion
• An administrator of a domain can delegate
  responsibility for managing a subdomain to
  someone else
• But this isnt required
• The parent domain retains links to the delegated
  subdomain
• The parent domain remembers who it delegated
  the subdomain to

25
Concept Zones and Delegations

• Zones are administrative spaces
• Zone administrators are responsible for portion
  of a domains name space
• Authority is delegated from a parent and to a
  child

26
Concept Zones and Delegations

net domain
com
net
edu



google
apnic
tislabs
sun
isi

moon

whois
www
www
ftp

ws1
ws2
27
Concept Name Servers

• Name servers answer DNS questions
• Several types of name servers
• Authoritative servers
• master (primary)
• slave (secondary)
• (Caching) recursive servers
• also caching forwarders
• Mixture of functionality

28
Concept Name Servers contd.

• Authoritative name server
• Give authoritative answers for one or more zones
• The master server normally loads the data from a
  zone file
• A slave server normally replicates the data from
  the master via a zone transfer

29
Concept Name Servers contd.

• Authoritative name server

slave
master
slave
30
Concept Name Servers contd.

• Recursive server
• Do the actual lookups ask questions to the DNS
  on behalf of the clients
• Answers are obtained from authoritative servers
  but the answers forwarded to the clients are
  marked as not authoritative
• Answers are stored for future reference in the
  cache

31
Concept Resolvers

• Resolvers ask the questions to the DNS system on
  behalf of the application
• Normally implemented in a system library (e.g,
  libc)

32
Concept Resolving process Cache

Question www.apnic.net A
root-server
www.apnic.net A ?
Ask net server _at_ X.gtld-servers.net ( glue)
www.apnic.net A ?
Caching forwarder (recursive)
Resolver
192.168.5.10
www.apnic.net A ?
gtld-server
Ask apnic server _at_ ns.apnic.net ( glue)
Add to cache
www.apnic.net A ?
192.168.5.10
apnic-server
33
Concept Resource Records

• Resource records consist of its name, its TTL,
  its class, its type and its RDATA
• TTL is a timing parameter
• IN class is widest used
• There are multiple types of RR records
• Everything behind the type identifier is called
  rdata

www.apnic.net. 3600 IN A 10.10.10.2
ttl
Label
type
rdata
class
34
Example RRs in a zone file

• apnic.net. 7200 IN SOA ns.apnic.net.
  admin.apnic.net. (
• 2001061501 Serial
• 43200 Refresh 12 hours
• 14400 Retry 4 hours
• 345600 Expire 4 days
• 7200 Negative cache 2
  hours )
• apnic.net. 7200 IN NS ns.apnic.net.
• apnic.net. 7200 IN NS ns.eu.net.
• whois.apnic.net. 3600 IN A 193.0.1.162

host25.apnic.net. 2600 IN A 193.0.3.25
35
Resource Record SOA and NS

• The SOA and NS records are used to provide
  information about the DNS itself
• The NS indicates where information about a given
  zone can be found
• The SOA record provides information about the
  start of authority, i.e. the top of the zone,
  also called the APEX

36
Resource Record SOA

net. 3600 IN SOA A.GTLD-SERVERS.net.
nstld.verisign-grs.com. ( 2002021301
serial 30M refresh 15M
retry 1W expiry 1D ) neg.answ.ttl
37
Concept TTL and other Timers

• TTL is a timer used in caches
• An indication for how long the data may be reused
• Data that is expected to be stable can have
  high TTLs
• SOA timers are used for maintaining consistency
  between primary and secondary servers

38
Places where DNS data lives

• Changes do not propagate instantly

Slave
Might take up to refresh to get data from master
Not going to net if TTLgt0
Cache server
Master
Registry DB
Slave server
39
To remember...

• Multiple authoritative servers to distribute load
  and risk
• Put your name servers apart from each other
• Caches to reduce load to authoritative servers
  and reduce response times
• SOA timers and TTL need to be tuned to needs of
  zone. Stable data higher numbers

40
What have we learned so far

• We learned about the architectures of
• resolvers,
• caching forwarders,
• authoritative servers,
• timing parameters
• We continue writing a zone file

41
Writing a zone file

• Zone file is written by the zone administrator
• Zone file is read by the master server and its
  content is replicated to slave servers
• What is in the zone file will end up in the
  database
• Because of timing issues it might take some time
  before the data is actually visible at the client
  side

42
First attempt

• The header of the zone file
• Start with a SOA record
• Include authoritative name servers and, if
  needed, glue
• Add other information
• Add other RRs
• Delegate to other zones

43
The SOA record

• apnic.net. 3600 IN SOA ns.apnic.net.
  admin\.email.apnic.net. (
• 2002021301 serial
• 1h refresh
• 30M retry
• 1W expiry
• 3600 ) neg. answ. ttl
• admin.email_at_apnic.net ? admin\.email.apnic.net
• Serial number 32bit circular arithmetic
• People often use date format
• To be increased after editing
• The timers above qualify as reasonable

44
Authoritative NS records and related A records

• NS record for all the authoritative servers
• They need to carry the zone at the moment you
  publish
• A records only for in-zone name servers
• Delegating NS records might have glue associated

sanog.org. 3600 IN NS NS1.sanog.org. sanog.org.
3600 IN NS NS2.sanog.org. NS1.sanog.org. 3600
IN A 203.0.0.4 NS2.sanog.org. 3600 IN A
193.0.0.202
45
Other data in the zone

• Add all the other data to your zone file
• Some notes on notation
• Note the fully qualified domain name including
  trailing dot
• Note TTL and CLASS

localhost.sanog.org. 3600 IN A
127.0.0.1 NS1.sanog.org. 4500 IN A
203.0.0.4 www.sanog.org. 3600 IN CNAME
IN.sanog.org. sanog.org. 3600 IN MX 50 mail.sanog.
org.
46
Zone file format short cutsnice formatting

sanog.org. 3600 IN SOA NS1.sanog.org.
admin\.email.sanog.org. ( 2002021301
serial 1h refresh 30M retry
1W expiry 3600 ) neg. answ.
Ttl sanog.org. 3600 IN NS NS1.sanog.org. sanog
.org. 3600 IN NS NS2.sanog.org. sanog.org.
3600 IN MX 50 mail.sanog.org. sanog.org.
3600 IN MX 150 mailhost2.sanog.org. sanog.org.
3600 IN TXT Demonstration and test
zone NS1.sanog.org. 4500 IN A
203.0.0.4 NS2.sanog.org. 3600 IN A
193.0.0.202 localhost.sanog.org. 3600 IN A
127.0.0.1 NS1.sanog.org. 3600 IN A
193.0.0.4 www.sanog.org. 3600 IN CNAME
IN.sanog.org.
47
Zone file short cuts repeating last name

sanog.org. 3600 IN SOA NS1.sanog.org.
admin\.email.sanog.org. ( 2002021301
serial 1h refresh 30M
retry 1W expiry 3600 ) neg. answ.
Ttl 3600 IN NS NS1.sanog.org.
3600 IN NS NS2.sanog.org. 3600 IN
MX 50 mail.sanog.org. 3600 IN MX 150
mailhost2.sanog.org. 3600 IN TXT
Demonstration and test zone NS1.sanog.org.
3600 IN A 203.0.0.4 NS2.sanog.org. 3600
IN A 193.0.0.202 localhost.sanog.org. 4500 IN
A 127.0.0.1 NS1.sanog.org. 3600 IN A
203.0.0.4 www.sanog.org. 3600 IN CNAME
IN.sanog.org.
48
Zone file short cuts default TTL

TTL 3600 Default TTL directive sanog.org. IN
SOA NS1.sanog.org. admin\.email.sanog.org. (
2002021301 serial 1h refresh
30M retry 1W expiry 3600 )
neg. answ. Ttl IN NS
NS1.sanog.org. IN NS
NS2.sanog.org. IN MX 50 mail.sanog.org. IN
MX 150 mailhost2.sanog.org. IN TXT
Demonstration and test zone NS1.sanog.org. IN
A 203.0.0.4 NS2.sanog.org. IN A
193.0.0.202 localhost.sanog.org. 4500 IN A
127.0.0.1 NS1.sanog.org. IN A
203.0.0.4 www.sanog.org. IN CNAME
NS1.sanog.org.
49
Zone file short cuts ORIGIN

TTL 3600 Default TTL directive ORIGIN
sanog.org. _at_ IN SOA NS1 admin\.email.sanog.org
. ( 2002021301 serial 1h
refresh 30M retry 1W expiry
3600 ) neg. answ. Ttl IN NS NS1
IN NS NS2 IN MX 50
mailhost IN MX 150 mailhost2 IN TXT
Demonstration and test zone NS1 IN A
203.0.0.4 NS2 IN A 193.0.0.202 localhost
4500 IN A 127.0.0.1 NS1 IN A
203.0.0.4 www IN CNAME NS1
50
Zone file short cuts Eliminate IN

TTL 3600 Default TTL directive ORIGIN
sanog.org. _at_ SOA NS1 admin\.email.sanog.org.
( 2002021301 serial 1h
refresh 30M retry 1W expiry
3600 ) neg. answ. Ttl NS NS1
NS NS2 MX 50 mailhost MX
150 mailhost2 TXT Demonstration and test
zone NS1 A 203.0.0.4 NS2 A
193.0.0.202 localhost 4500 A 127.0.0.1 NS1
A 203.0.0.4 www CNAME NS1
51
Delegating a zone (becoming a parent)

• Delegate authority for a sub domain to another
  party (splitting of whois.apnic.net from
  apnic.net)

com
net
edu



google
sun
apnic
tislabs
isi

moon

whois
www
www

ftp
ns1
ns2
52
Concept Glue

• Delegation is done by adding NS records
• whois.apnic.net. NS ns1.whois.apnic.net.
• whois.apnic.net. NS ns2.whois.apnic.net.
• How to get to ns1 and ns2 We need the addresses
• Add glue records to so that resolvers can reach
  ns1 and ns2
• ns1.whois.apnic.net. A 10.0.0.1
• ns2.whois.apnic.net. A 10.0.0.2

53
Concept Glue contd.

• Glue is non-authoritative data
• Dont include glue for servers that are not in
  sub zones

whois.apnic.net. NS ns1.whois.apnic.net. whois.a
pnic.net. NS ns2.apnic.net. whois.apnic.net.
NS ns1.apnic.net.
ns1.whois.apnic.net. A 10.0.0.1
54
Delegating whois.apnic.net. from apnic.net.

• whois.apnic.net
• Setup minimum two servers
• Create zone file with NS records
• Add all whois.apnic.net data

• apnic.net
• Add NS records and glue
• Make sure there is no other data from the
  whois.apnic.net. zone in the zone file
