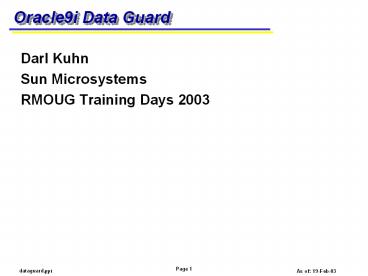

Oracle9i Data Guard

1
Oracle9i Data Guard

• Darl Kuhn
• Sun Microsystems
• RMOUG Training Days 2003

2
Oracle9i Data Guard Agenda

• Business Requirements
• What is Data Guard?
• Data Guard Architecture
• Implementing Data Guard
• Failover when Disaster Strikes
• 8i Data Guard New Features
• 9i Data Guard New Features

3
Business Requirements

• Business Goals
• Keep the data 7x24 highly available
• High Availability
• Minimize unscheduled downtime
• Minimize scheduled downtime
• Disaster Recovery protection
• Minimize Cost

4
Business Requirements

• Minimize Costs
• Hardware
• Personnel (DBA, SA, etc.)
• Special skills
• Training
• Licensing
• Implementation
• Maintenance

5
Business Requirements

• Minimize Complexity
• Number of moving parts
• Ease of implementation
• Ease of maintenance
• More complex usually means more cost
• Higher availability usually means more cost
• Choose a solution that
• Meets business requirements
• Minimizes cost and complexity

6
Business Solutions Available

• Backup the database, restore from tape
• Operating System failover
• Remote Mirroring
• Quest Software SharePlex
• Oracle Advanced Replication (OAR)
• Oracle Real Application Clusters (RAC)
• Oracle Data Guard (Standby)

7
We Chose Data Guard

• Needed 7x24 Disaster Recovery protection
• Simple to implement
• Requires DBA with BR skills
• Didnt need special SA skills or consultants
• Low maintenance (do more w/less DBAs)
• We dont have to baby-sit it
• No extra licensing (built into Oracle9i)
• Not an add-on, part of Enterprise Edition
• Main cost was extra hardware

8
Data Guard History

• Previously known as the Standby Option
• First developed by Oracle Consulting in the late
  80s early 90s
• Became part of Oracle database in 7.3
• Renamed to Oracle Data Guard in 8.1.7
• Greatly enhanced in Oracle9i

9
What is Data Guard?

• Built upon a simple concept
• Take a backup of your database
• Move backup files to standby box
• Mount standby database in recovery mode
• Apply archived redo to standby database as it
  becomes available from primary database

10
Copy and Apply Archive Redo

• Oracle 7.3
• Copy and apply of archive redo was manual
• Oracle8i
• Automated copy and apply of archived redo
• Uses ARCn and Net8 for copy
• Configured via init.ora parameters
• Oracle9i
• Advanced archive gap detection
• Uses Fetch Archive Log (FAL) process

11
Basic Physical Standby Architecture

• (picture for managers)

Network
Primary Database Site (production hardware)
Standby Database Site (standby box)
(archived transactions in an OS file)
Damn Users
Local Archive Redo
Standby Database
Managed Recovery Process
Copied Archive Redo
Primary Database
ARCn
(a background process)
Network
12
Basic Physical Standby Architecture

• .

Primary Database Production Site
Standby Database Server
Copied Archive Redo
Copied Archive Redo
Users
Remote File Server (RFS)
Fetch ArchiveLog (FAL)
Oracle Net
Primary Database
LGWR
Managed Recovery Process (MRP)
ARCn
On-line Redo
Online Redo
Standby Database
Local Archive Redo
Local Archive Redo
13
Implementing Data Guard in 10 Steps

• Assumptions
• Two different servers
• Identical mount points on both boxes
• Both primary and standby will have same name
• Using ARCn process in this example (not LGWR)
• http//otn.oracle.com/oramag/oracle/02-nov/o62avai
  l.html
• 1. Ensure primary database is in archive log mode
• 2. Take backup of primary database datafiles
• SQLgt select from vdatafile
• Cold (easiest)
• Hot
• RMAN
• Do not backup controlfiles
• Do not backup on-line redo logs

14
Implementation (continued)

• 3. Copy backup datafiles to standby server
• If you use an online backup, ensure that you copy
  over any archive redo generated during the backup
• 4. Create a standby controlfile
• SQLgt alter database create standby controlfile as
  stbycf.ctl
• This controlfile will be used by the standby
  database
• 5. Copy the standby controlfile to the standby
  box

15
Implementation (continued)

• 6. Configure primary init.ora or spfile
• location of primary archive redo
• log_archive_dest_1LOCATION/ora01/oradata/BRDSTN
  /
• location of archive redo on standby
• log_archive_dest_2SERVICEstandby1 optional
• log_archive_dest_state_2enable
• 7. Copy primary database init.ora file to standby
  box and make modifications for standby database
• Ensure standby database is pointing at standby
  controlfile
• control_files/ora01/oradata/BRDSTN/stbycf.ctl
• Location of where archive redo logs are being
  written in standby environment
• standby_archive_dest/ora01/oradata/BRDSTN
• Enable archive gap management

16
Implementation (continued)

• 8. Configure Oracle Net
• Need Oracle Net connectivity from Primary to
  Standby
• and
• Need Oracle Net connectivity from Standby to
  Primary
• Primary database needs
• Listener
• TNS entry for standby1 service
• Standby database needs
• Listener
• TNS entry for primary1 service

17
TNS File

• primary1 (DESCRIPTION(ADDRESS(PROTOCOLtcp)
  (PORT1521) (HOSTprimary_host))
  (CONNECT_DATA(SERVICE_NAMEBRDSTN)))
• standby1 (DESCRIPTION(ADDRESS(PROTOCOLtcp)
  (PORT1521) (HOSTstandby_host))
  (CONNECT_DATA(SERVICE_NAMEBRDSTN)))

18
Implementation (continued)

• 9. Startup and mount standby database
• SQLgt startup nomount
• SQLgt alter database mount standby database
• 10. Enable managed-recovery mode on standby
• SQLgt alter database recover managed standby
  database disconnect

19
Troubleshooting Implementation

• Continuously view bottom of primary and standby
  alert.log files
• tail f alert_BRDSTN.log
• Most of problems are with getting Oracle Net
  setup correctly (fat fingering a TNS entry)

20
When Disaster Strikes

• Ensure you apply all applicable redo to standby
• Make the standby the primary
• On standby
• 8i example
• SQLgt shutdown immediate
• SQLgt alter database mount standby database
• SQLgt alter database activate standby database
• 9i many more options
• SQLgt alter database recover managed standby
  database finish

21
When Disaster Strikes

• Applications must change TNS to point to new
  database
• Or change Oracle Names entry
• Or use Oracle Net load balance feature
• brdstn
• (DESCRIPTION
• (LOAD_BALANCEon)
• (ADDRESS(PROTOCOLtcp)(HOSTl3srv1)(PORT152
  1))
• (ADDRESS(PROTOCOLtcp)(HOSTl3srv2)(PORT152
  1))
• (CONNECT_DATA(SERVICE_NAMEbrdstn))
• )

22
When Disaster Strikes

• Java Thin Driver Example
• String connectInfo
• "jdbcoraclethin_at_"
• "(DESCRIPTION "
• "(LOAD_BALANCEon)"
• "(ADDRESS(PROTOCOLtcp)(HOSTl3srv1)(PORT1521))"

• "(ADDRESS(PROTOCOLtcp)(HOSTl3srv2)(PORT1521))"

• "(CONNECT_DATA(SERVICE_NAMEbrdstn))"
• ")"

23
Data Guard 8i New Features

• Auto copy of redo to standby
• Net8
• Initialization parameters
• Auto apply of redo on standby
• Enabled in standby database via
• SQLgt alter database recover managed standby
  database

24
Data Guard 8i New Features

• Read Only Mode
• Standby was mainly a disaster recovery and high
  availability solution
• Some limited scalability features
• Can now open database in read-only mode
• SQLgt alter database open read only
• And then back to recovery mode
• SQLgt alter database close
• SQLgt alter database recover managed standby
  database

25
Data Guard 8i New Features

• Read Only mode allows for SELECT statements to
  run against standby database
• No DDL allowed in read-only mode
• Applying of archive redo and read-only mode
  mutually exclusive
• Can either be in read-only mode or recovery mode,
  but not both

26
Data Guard 9i New Features

• Archive gap management
• Advanced data protection modes
• Automated propagation of datafile operations
• User error protection
• Database switchover/switchback
• Cascading standby
• Archive_lag_target parameter
• Logical Standby (version 9.2 only)
• Data Guard Broker

27
Archive Gap Management

• What if network is down?
• What if standby is down?
• Primary continues to generate archive redo
• Those unapplied redo logs make up an archive gap
• When failure is resolved how is the standby
  caught up?

28
Archive Gap Management

• In version 8, DBA has to figure out which archive
  redo logs make up the archive gap
• Copy over archive redo logs
• Issue recover command on standby
• SQLgt alter database recover standby database
• Then automatic ship and apply can restart

29
Archive Gap Management

• Gap detection crucial to high availability
• 9i has new methods for gap resolution
• FAL_CLIENT and FAL_SERVER initialization
  parameters initiate Fetch Archive Log (FAL)
  processes
• If network or standby is down
• FAL process waits until communication is
  re-established
• Detects gap
• Transmits and applies archive redo log

30
Data Protection Modes

• Maximum protection
• Guaranteed no-data-loss
• Uses LGWR to transfer redo
• SQLgt alter system set log_archive_dest_2SE
  RVICEstandby1 LGWR SYNC AFFIRM
• Standby configured with its own redo logs
• SQLgt alter database add standby logfile
  (/ora01/oradata/BRDSTN/sb_redo_01.log) size
  10m
• Maximum availability
• Uses LGWR
• Allows for temporary unavailability of standby
• Maximum performance
• Default mode
• Uses either ARCn or LGWR for transferring redo

31
Maximum Protection Architecture

• .

Standby Database Server
Primary Database Production Site
Users
Synch/Asynch writes
Remote File Server (RFS)
LGWR
Oracle Net
Primary Database
Standby Online Redo
ARCn
Standby Database
Managed Recovery Process
Archive Redo
Archive Redo
Local Archive Redo
Local Archive Redo
ARCn
32
Propagation of Datafile Operations

• Physical standbys have always supported all data
  types
• Supported all insert/update/delete statements
• Supported most DDL
• Create table/view/index/sequence
• Create user
• Create package/procedure/function/trigger
• Create role/synonym
• Grants
• Etc.

33
Propagation of Datafile Operations

• One weakness of 8i was that add/drop
  tablespace/datafile commands were not
  automatically propagated
• DBA had to intervene
• Now automated in 9i
• In standby initialization file
• standby_file_management auto

34
Propagation of Datafile Operations

• Example
• SQLgt drop tablespace SHOLAY including contents
  and datafiles
• On standby the tablespace SHOLAY will be
  automatically dropped and all datafiles will
  automatically be deleted from disk
• Note If you want to rename a datafile, and have
  those changes applied to standby, DBA must
  intervene

35
User Error Protection

• In 8i, DBAs often implemented a manual delay in
  application of redo
• Create a shell script that
• Copy archive redo
• Wait 60 minutes before applying
• Idea being that if user accidentally
  dropped/deleted/truncated data, the DBA could
  intervene before it was applied to standby

36
User Error Protection

• 9i you get more robust methods to manage user
  errors
• On standby
• SQLgt recover managed standby database delay 60
  disconnect
• Archive redo copied to standby when generated but
  not applied until 60 minutes later
• Disable the delay via
• SQLgt recover managed standby database nodelay

37
Database Switchover

• Database can be in one of two roles
• Primary or standby
• SQLgt select database_role from vdatabase
• A switchover allows you to reverse roles of
  primary and standby

38
Database Switchover

• Database switchover is not a database failover
• A failover is permanently making a standby
  database the primary database
• Database switchovers would be ideal for rolling
  OS upgrades
• Switchovers cannot be used for database upgrades

39
Cascading Redo Logs

• Version 9.2 only
• Standby can receive redo from another standby
• Reduce load on primary
• Can receive redo from a physical or logical
  standby
• Setup standby redo log files
• Ensure archiving enabled on physical standby

40
Archive_lag_target

• Use archive_lag_target init parameter to ensure
  online redo is switching often enough
• Specifies in seconds how often you want an online
  redo log switch to occur
• Value in seconds
• Valid values 0, or 60 through 7200
• A value of 0 (default) disables this feature
• 1800 (30 minutes) seems reasonable

41
Logical Standby

• Prior to 9.2 you could only have a physical
  standby
• Primary and physical identical down to the block
  level
• With 9.2 you can now create a logical standby
  with the Data Guard SQL Apply tool
• Logical standby is available for SELECT access
  while applying transactions from the primary via
  SQL statements generated using LogMiner
  technology
• Ideal for 7x24 reporting databases
• Logical updates one or more log files behind the
  primary

42
Logical Standby Architecture

• .

Primary Database Production Site
Logical Database Standby Site
Network
User Enters Data
User runs reports
Logical Standby Process (LSP) Transforms
Redo into SQL
Production Primary Database
Logical Database
SQL Apply
LGWR
43
Logical Standby

• In event of disaster, logical standby can be
  turned into a primary database
• Can create indexes and MVs to tune it
• Doesnt support longs and raws
• SQLgt select from dba_logstdby_unsupported
• Many steps (20) involved with setting up logical
  standby
• See MetaLink note 186150.1

44
Data Guard Broker

• Two components
• Command line tool
• Data Guard Manager OEM GUI tool
• With Data Guard Manager, point and click your way
  through setting up standby environment
• Create physical and logical standby databases
• Perform switchovers and failovers
• Monitor log transport and apply
• Configure event driven reporting/e-mailing/paging

45
Data Guard Summary

• Relies on tried-and-true standby technology
• Ideal for disaster recovery and high availability
• Fairly low cost
• DBA needs to have backup and recovery skills to
  create and maintain
• Many new Data Guard features in Oracle9i
• Now has some scalability features
