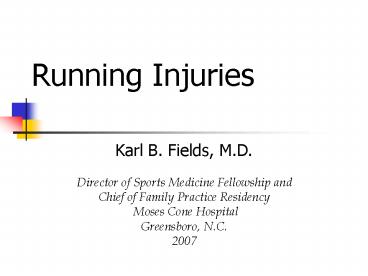

Running Injuries

1
Running Injuries

• Karl B. Fields, M.D.

Director of Sports Medicine Fellowship and Chief
of Family Practice Residency Moses Cone
Hospital Greensboro, N.C. 2007
2
Introduction / Running

• Primary fitness activity of 10 - 20 of
  Americans
• Popularized by Frank Shorter, Ken Cooper, Jim
  Fixx and road races
• Competitors of all ages and after 10 years 56
  still run and 81 exercise regularly
• Koplan, MSSE, 1995
• Running is an efficient way to develop fitness
• Recommendation strength A/ evidence level 1

3
Greatest Benefit of Running - Fitness Correlates
With Longevity?

• Blair, et al Jama 1989 1995
• Harvard Alumni Jama 1995
• Finish athletes, Norwegian men, Swedish women
• Men with or without CVD referred for ETT / men or
  women referred for exercise thallium. 2002
• Fitness correlates with longevity
• Rec A/ Level 1 evidence

4
Biomechanics of Running

• Effect of external and internal forces on a
  biological system
• Muscular force must overcome gravity and
  resistance
• Muscles, bones, cartilage, ligaments and tendons
  must absorb impact

5
Gait and Foot Strike are Variables
6
Gait Cycle

• Differs from walking - an airborne phase is
  present
• Efficient Running - a straight line (runners show
  1 line in sand as opposed to walkers who leave
  two parallel lines.)
• Over-striding may lead to bounding with too
  much vertical displacement

7
Primary Problem of Runners

• Musculoskeletal injury
• 40 to 60 of runners injured yearly
• 25 or runners injured at any given time
• Young and inexperienced runners have a
  preponderance of shin pain
• Knee injuries common in all age groups
• Male runners over 40 calf and achilles injury

8
EBM shows Influence of Orthopedic Factors
Variable

• Leg length inequality
• results variable for ITB, Pelvic, low back
  injuries
• Excessive Q angle
• more negative than positive studies in PFSS one
  positive study in stress fractures
• Cavus feet
• Study confirmed a RR of 6 for lower extremity
  injuries with highest arch height
• Cowan, Arch Fam Med, 1993, level of evidence 2

9
Risk Factors for Recurrent Stress Fracture

• 19 male/ 12 female athletes with avg of 3.7
  stress fractures vs. 15 controls /61 were
  runners
• Stress fractures 70 in men tibia and fibula
  /50 in women were ankle or foot
• High running mileage
• Cavus foot 40 injured vs 13 controls
• Leg length inequality/ forefoot varus
• Korpelainen, et al. Am J Sp Med 2001, evidence
  level 2

10
Psychological Injury Factors - Documented in
Small Studies

• Personality type - negative studies
• Type A behavior
• (Fields, JFP, 1989 Diekhoff J Sp Beh, 1984)
• Obsessive-compulsive behavior/ Obligatory runners

• (Yates, Psychosomatics, 1992)
• Hostility
• Rec level C/ Evidence level 2 to 3

11
Running Injury - Best Evidence Study Results

• Previous Injury in preceding 12 mos (RR 1.51)
• Mileage greater than 40 per week (RR 2.88)
• Possibly daily running/ long runs
• 115 runners in controlled training of 18 to 20
  months/ 85 injured/ training distance was risk
  factor
• Boven, et al Int J Sp Med, 1989
• Higher running mileage causes running injury
• Rec B /evidence level 2

12
Common Running Injuries

• Patello-femoral Stress Syndrome (PFSS)
• Iliotibial Band Syndrome
• Plantar Fasciitis
• Tibial Stress Fracture/ MTSS
• Achilles Tendonosis

13
Additional Running Injuries

• Metatarsalgia
• Strains of hamstrings, adductors, piriformis
• Patellar, posterior tibialis, peroneal,
  ilio-psoas tendonosis
• Tarsal tunnel, sural, peroneal neuropathies
• Femoral, navicular, medial malleolar, proximal
  5th MT, sessamoid stress fxs

14
Goals for Running Injury

• PFSS
• ITB
• Achilles Tendonosis
• MTSS/ Tibial Stress Fx
• High Risk Stress Fxs

15
PFSS Treatment

• Quadriceps exercises
• Icing
• Patellar straps, McConnell taping, patellar
  sleeves with pads, antipronation pads, orthotics,
  use of NSAIDs orally or topically
• Cochrane review notes better clinical results
  with standard treatments in studies but
  inconclusive evidence to rate effectiveness

16
Exercise Therapy for PFSS

• 12 trials but only 1 high quality and 2 low
  quality were controlled
• Significantly greater pain reduction in 2 of 3
  trials
• level 2
• Greater functional improvement in 1 of 3 trials
• level 2
• Strong Evidence that open and closed chain
  exercise are equivalent
• Rec A/Level 1
• Berger, et al. Cochrane Library 2004

17
Evidence for Addressing VMO Weakness and Cavus
Feet

• Quadriceps weakness may be common factor in LDR
  with knee pain
• Supination and rigidity may be more of a problem
  than pronation which implicates Cavus feet as an
  anatomical factor
• Level of evidence 2
• Mileage, stretching, impact, shoes may play
  lesser roles than thought
• Etiologic Factors Associated with Anterior Knee
  Pain in Distance Runners, MSSE vol 32 no 11 Nov
  2000, Duffey et al

18
(No Transcript)
19
Iliotibial Band Syndrome What Do We know?

• Variable sharp pain at different paces
• Pain aggravated by down hills and sloped
  surfaces, increased mileage (Messier, MSSE, 1995)
• Precipitating factor often unclear
• Non-impact activity does not cause pain - biking,
  swimming, stair-master
• Impingement at or below 30 deg knee flexion on wt
  bearing (Orchard, Am J sp Med 1996)

20
Standard ITB Treatment

• ITB stretches
• Ice, NSAIDS, injection
• Friction massage and PT modalities
• Antipronation pads or orthotics
• Variable paced workouts
• Level of evidence is 3

21
Prospective Study of ITB

• 24 consecutive distance runners diagnosed with
  ITB at an injury clinic
• 14 males and 10 females
• Average age 27
• Control group of 30 Stanford runners -14 female
  and 16 male with mean age 20

22
Methods

• Lateral leg lift in lying position against a
  dynamometer until failure
• 2 test measures before true test
• Results normalized for height and weight

23
Why Did ITB Improve?

• The gluteus medius is a continuous abductor in
  stance phase with some assistance from the tensor
  fascia lata
• At footstrike both muscles undergo eccentric
  contraction
• Weakness of gluteus medius in particular allows
  increased thigh adduction which increases genu
  valgus and stresses the ITB

24
Results

• Injured runners showed strength deficits versus
  uninjured leg and versus controls
• (all p values lt.05)
• Males showed 51 and females 35 increase in
  strength after 6 wks rehab
• 22 of 24 pain free at 6 weeks 1 at 3 months
• Evidence level 2/ Rec level B
• Hip Abductor Weakness in Distance Runners with
  ITB, Fredericson, Cookingham, et al., Clin J of
  Sports Med July 2000

25
Dynamic Genu Valgus
26
Achilles Tendonosis Treatment

• Heel cup, heel pads, ice massage, stretching
• NSAIDS orally or topically
• Oral prednisone
• Training change
• All have equivocal evidence
• Steroid injection doesnt appear to help
• Shrier, CJSM 1996

27
Heavy-load Eccentric Calf Muscle Training

• 15 experimental/ 15 controls - all recreational
  athletes
• Loaded eccentric contraction from a step
• All 15 experimental of experimental group
  recovered in 12 weeks (and cancelled their
  surgery!) versus 0 of controls
• Alfredson, et al. AM J Sp Med 1998
• Perform eccentric calf strengthening to treat
  Achilles Tensonosis Rec B/ evidence level 2

28
Eccentric Strength Exercises for Achilles Injury
29
Eccentric Exercise Changes Tendon Structure

• Eccentric exercise decreased tendon thickness and
  normalized tendon structure measured by
  ultrasound
• 25 patients followed on average 3.8 years with 26
  tendon injuries
• Ohberg, et al. Br J Sports Med 2004
• Eccentric Training of the Gastrocnemius-Soleus
  Complex in Chronic Achilles Tendinopathy Results
  in Decreased Tendon Volume and Intratendinous
  Signal as Evaluated by MRI
• Shelby et al., American Journal of Sports
  Medicine, vol. 32, no. 5, 2004

30
MTSS or Shin Splints 4 studies Qualify for
Cochrane

• Andrish - heel pads, stretching, heels pads plus
  stretching, graduated running
• Bensel - canvas vs standard leather boots
• Bensel - urethane vs mesh vs grid insoles
• Schwellnus - neoprene insoles
• Results showed only that neoprene insoles cut
  injury risk, particularly MTSS

31
Evidence Summary for MTSS

• Of 4 RCTs all included military recruits
• Results affected by Confounding variables and
  limits to randomization
• Quality scores ranges from 29 t0 47 out of 100
• Lack of preseason training as a risk factor
• Shock absorbing orthotic insoles may reduce risk
  in males
• Rec B/ evidence level 2

32
Tibial Stress Fracture/ Exam

• Direct tenderness
• Pain on tuning fork
• Positive hop test
• Swelling

33
Tibial Stress Fracture Treatment

• No running for a minimum of two weeks/ much
  longer for upper or mid tibia
• Progressive increase in activity while using long
  air splint
• Long air splints received a favorable review by
  Cochrane with return to training 42 days faster
  than standard therapy
• Rec B/ level 2

34
High Risk Stress Fractures

• Femoral neck
• Medial malleolar
• High or anterior tibia
• Intraarticular - e.g. tibial plateau or patella
• Sessamoids
• 5th Metatarsal

35
Navicular Stress Fracture

• N spot - proximal dorsal navicular
• Return to sport slow - avg of 5.6 months
• 11 of 45 healed with weight bearing Rx
• 32 of 36 healed with non weight bearing Rx
• 22 of 27 nonunions healed with surgery
• 86 of 128 false negative plain films
• 77 of 131 cases had successful return to sport
• Stress Fractures, Bruckner and Bennell

36
Summary of Navicular Stress Fracture

• Only 25 heal with weight bearing
• NWB appears to be successful in gt 85
• 85 non-unions heal with surgery
• Return to sports remains problematic with only
  60 returning to previous level
• Evidence level 2

37
Running Injury Treatment

• Evidence supports treatment approaches in a
  limited number of running injuries
• Opinion suggests control inflammation, modify
  training and gradually increase.
• Rehabilitation focuses on eccentric strength with
  evidence for Achilles and hamstring.
• Special protection long air splints and
  orthotics have some support.
• Stretching before running does not appear
  protective against injury

38
Running Summary

• Key exercise for aerobic fitness
• All body types have had success
• Ability to compete at all ages
• High risk for musculoskeletal injury
• Primary benefit for overall health and longevity

39
(No Transcript)
