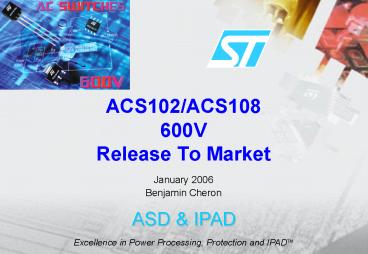

ACS102ACS108 600V Release To Market

1
ACS102/ACS108600VRelease To Market

• January 2006
• Benjamin Cheron

ASD IPAD
Excellence in Power Processing, Protection and
IPADTM
2
AGENDA

• System function (where)
• Features (why)
• Benefits
• Range
• Life cycle
• Promotion, tools

3
ACS102 ACS108 in home appliances

• AC ON/OFF static switching in appliances and
  industrial control systems

• Drive of low power high inductive or resistive
  loads such as
• valve, solenoid,
• dispenser, door lock,
• pump, fan micro-motor

4
Horizontal axis washer
5
Vertical axis washer
6
WHERE ?
7
AC load ON/OFF control
8
AC load ON/OFF control
Control unit
9
Why

• 500V too low for safety and functionality.
• New with design / technology improvement.
• Die dimension smaller with better performances

10
500V to 600V
IOUT
Turn-on by overvoltage
VRRM IRRM
positive VCL
VDRM IDRM
VOUT
negative VCL
allowednormaloperatingvoltage
protectedvoltage area
VMAINS 325VPEAK
11
500V to 600V
IOUT
Turn-on by overvoltage
VRRM IRRM
VDRM IDRM
positive VCL
VOUT
negative VCL
allowednormaloperatingvoltage
protectedvoltage area
was not allowed in previous series
VMAINS 325VPEAK
12
Strategies for overvoltage protection
13
IEC 61000-4-5 robustness
Surge test
Enables equipment to meet IEC61000-4-5 up to
2kV, crowbar effect
14
Immunity improvement
Reference IEC61000-4-4, burst test
Parameter static dV/dt (V/µs)
1A sensitive standard triac
Sensitivity
Old ACS108 , 500V version (Igt 10mA)
10 times better
X10
15 higher capabilitydue to temperature range
New ACS108 , 600V version (Igt 10mA)
15
Commutation improvement

• Commutation parameter capability to switch off
  properly the current
• Key parameter (dI/dt)c vs (dV/dt)c

25
Commutation now specified on the full range of
temperature
16
IH and IL improvement optimization of the gate
driver
IACS
VACS
IH and IL reduced by 50
IGgtIGT
tp
Gate current
17
Synthesis

• ACS108-6Sx
• 600V voltage capability
• IH 25mA max vs 60mA
• IL 30mA max vs 60mA
• Vcl 600V min
• (dI/dt)c 0.3A/ms snubberless

• ACS102-6Tx
• 600V voltage capability
• IH 20mA max vs 55mA
• IL 25mA max vs 60mA
• Vcl 600V min
• (dI/dt)c 0.15A/ms snubberless

• LOW IH As low Overvoltage at turn-off as
  Triacs.
• (dI/dt)c True snubberless turn-off capability
• LOW IL Pulse drive compatibility even on low
  power loads
• Vcl Guaranteed and controlled avalanche
  behavior.

18
Product range ACS102
ACS
1
02
-
6
T
A
-TR
Packing TR Tape and Reel Blank TO-92
bulk SO-8 tube
AC Switch series
Number of switches
Package A TO-92 1 SO-8
Current rating 02 0.2ARMS
Voltage (VDRM/VRRM) 6 600V
Sensitivity T 5mA
19
Product range ACS108
ACS
1
08
-
6
S
A
-TR
Packing Blank TO-92 bulk AP TO-92
Amopak TR Tape and Reel
AC Switch series
Number of switches
Package A TO-92 N SOT-223
Current rating 08 0.8ARMS
Voltage (VDRM/VRRM) 6 600V
Sensitivity S 10mA
20
Historic of ACS102 ACS108
Forecast 2006
21
Product status

• Datasheet available on the web

• Maturity code mat 30
• Samples available (jan 11th, 2005)
• 7k of ACS108
• Inventory of pieces (jan 11th, 2005)
• 100k of ACS108
• 130k of ACS102
• BE qualified
• ACS102
• TO-92 PSI
• SO-8 MUAR, SHENZEN
• ACS108
• TO-92 PSI
• SOT-223 CARSEM, PSI (in Q2)

ACS108-6S
ACS102-6T

• Qualification package
• ACS102-6Tx 05165QRP.pdf
• ACS108-6Sx 05160QRP.pdf

• Ramp-up committed in 2006 with Electrolux and
  Indesit

22
Promotion materials

• RTM presentation
• ID Card
• Product photo
• MPA intranet web page
• Article
• ST Online announcement
• Article in International Appliance Manufacturing
  magazine
• Upgrade kit for all billed customer - Q2
