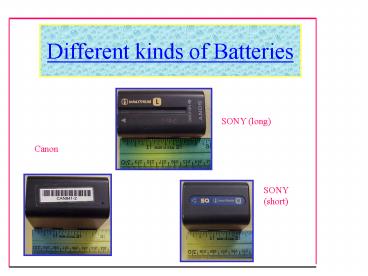

Different kinds of Batteries

1
Different kinds of Batteries
SONY (long)
Canon
SONY (short)
2
Using the Right Battery for the SONY Digital
HandyCam Video Camera
SONY Digital HandyCam Video Camera

• The Sony Digital HandyCam Video Camera uses the
  Sony SQ infoLITHIUM M (short) battery the
  SONY long battery clearly will not fit on the
  back of the camcorder.

SONY
SQ infoLITHIUM M
Battery
3
Using the right battery for theMavica Still
Camera
SONY Digital Mavica (Still
Camera)

• The SONY Digtital Mavica Still Camera, Uses SONY
  infoLITHIUM L (longer) Battery, or different
  brand but the same size as infoLITHIUM L

infoLITHIUM Battery L
4
Do not put short SONY batteriesin Mavica

• Please DO NOT put short SONY batteries in the
  Mavica floppy disk cameras.
• If you do the battery will fit into the
  compartment but will not come back out!

5
How to charge a battery
Fig.1
Fig.2
Fig.--Battery charger. Fig.2--Place the battery
on the top of the charger as shown. Fig.3--The
battery is pushed to the left to start charging.
Fig.3
6
Charged Batteries

• Please place charged batteries right side up
  above the chargers as shown in the picture.
• Batteries sitting right side up on the top
  shelf mean the battery is charged and ready for
  use.
