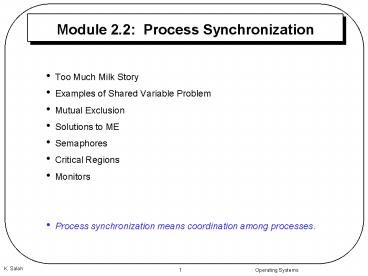

1Module 2.2 Process Synchronization
- Too Much Milk Story
- Examples of Shared Variable Problem
- Mutual Exclusion
- Solutions to ME
- Semaphores
- Critical Regions
- Monitors
- Process synchronization means coordination among
processes.
2Concurrent Processes
- Too much milk story An appetizer!!
- Concurrent processes (or threads) often need to
share data (maintained either in shared memory or
files) and resources - If there is no controlled access to shared data,
some processes will obtain an inconsistent view
of this data - The action performed by concurrent processes will
then depend on the order in which their execution
is interleaved - This order can not be predicted
- Activities of other processes
- Handling of I/O and interrupts
- Scheduling policies of the OS
3Shared variable problemAn Example
- Process P1 and P2 are running this same procedure
and have access to the same variable a - Processes can be interrupted anywhere
- If P1 is first interrupted after user input and
P2 executes entirely - Then the character echoed by P1 will be the one
read by P2 !!
static char a void echo() cin gtgt a
cout ltlt a
4A Second Example
- Example (Simple Shared Variable)
- Two processes are each reading characters typed
at their respective terminals - Want to keep running count of total number of
characters typed on both terminals - A Shared variable V is introduced each time a
character is typed, a process uses the code V
V 1to update the count. During testing it
is observed that the count recorded in V is less
than the actual number of characters typed. What
happened? - Þ The programmer failed to realize that the
assignment was not executed as a single
indivisible action, but rather as the following
sequence of instructions - MOVE V, r0
- INCR r0
- MOVE r0, V
5The Producer/Consumer ProblemThird Example
consumer
producer
buffer
P
C
process
process
- from time to time, the producer places an item in
the buffer - the consumer removes an item from the buffer
- careful synchronization/coordination required
- the consumer must wait if the buffer empty
- the producer must wait if the buffer full
- typical solution would involve a shared variable
count (recall previous example) - also known as the Bounded Buffer problem
6The Mutual Exclusion Problem
- The previous two examples are typical of kind of
race condition problem that arises in operating
system programming. - Occurs when more than one process has
simultaneous access to shared data, whose values
are supposed to obey some integrity constraint. - Other examples airline reservation system, bank
transaction system - Problem generally solved by making access to
shared variables mutually exclusive at most one
process can access shared variables at a time - The period of time when one process has exclusive
access to the data is called a critical section.
7The Critical Section Problem
- Definition. A critical section is a sequence of
activities (or statements) in a process during
which a mutually excluded resource(s) (either
hardware or software) must be accessed. - The critical section problem is to ensure that
two concurrent activities do not access shared
data at the same time. - A solution to the mutual exclusion problem must
satisfy the following three requirements - Mutual Exclusion
- Progress
- Bounded waiting (no starvation)
8Requirement to Critical-Section Problem
- 1. Mutual Exclusion. If process Pi is executing
in its critical section, then no other processes
can be executing in their critical sections. - 2. Progress. If no process is executing in its
critical section and there exist some processes
that wish to enter their critical section, then
the selection of the processes that will enter
the critical section next cannot be postponed
indefinitely. - 3. Bounded Waiting. A bound must exist on the
number of times that other processes are allowed
to enter their critical sections after a process
has made a request to enter its critical section
and before that request is granted. - Assume that each process executes at a nonzero
speed - No assumption concerning relative speed of the n
processes.
9Methods for Mutual Exclusion
- 1. Disable interrupts (hardware solution)
- 2. Strict alternation and Petersons solution
(software solution) - 3. Switch variables (assume atomic read and
write) - 4. Locks (hardware solution with TSL or TAS)
- 5. Semaphores (software solution)
- 6. Critical Regions and Monitors (HLL solution)
10Disable Interrupts
- process A process B ...
... disable interrupts disable
interrupts CS CS
enable interrupts enable interrupts - Prevents scheduling during CS, since the timer
interrupt is disabled. - May hinder real-time response and delays
- All processes are excluded even if they do not
access the same variables - This is sometimes necessary (to prevent further
interrupts during interrupt handling), used by
the kernel when updating its variables and lists,
e.g. ready and blocked lists.
11Lock Variables
- Not used in any system. It does not work
properly. - The idea is to have a lock variable guarding the
CS - If the lock is 0, the process sets the lock to 1
and enter CS - If the lock is 1, the process waits until the
lock becomes 0 - Has the same problem as shared variables. Both
processes may read simultaneously the lock 0.
12Strict Alternation
- Process B
- While (TRUE)
- while (turn ! B) / wait /
- CS
- turn A
- ...
-
- Process A
- While (TRUE)
- while (turn ! A) / wait /
- CS
- turn B
- ...
-
- turn is a shared variable and initially set to A
- different CS's can be implemented using different
switch variables - busy waiting is a waste of CPU cycles and causes
the priority inversion problem. Priority
inversion problem can occur if there are 2
processes H and L with H to be run whenever it is
ready. - danger of long blockage since A and B strictly
alternates, i.e., Process A or B can not run
twice in a row. - We need a solution that does not require strict
alternation
13Petersons Solution
- define N 2 / 2 processes 0 and 1 /
- int interestedN FALSE,FALSE
- int turn
- void enter_region (int process)
-
- int other
- other 1 process
-
- interestedprocess TRUE / resolves the
strict alternation / -
- turn process / resolves simultaneous
enter_region call. Last turn only counts. In
other words, turn is used to break ties! / - while (turn process interestedother
TRUE) -
- void leave_region(int process)
-
14Petersons Solution (cont.)
- Properties
- Complex and unclear
- Busy waiting
- Mutual exclusion is preserved
- Strict alternation is resolved
- Can be extended for n processes
15TSL or TAS Instruction
- TSL Test and Set Lock (or TAS TestAndSet) is
implemented in HW, e.g. Motorola 68000
microprocessor. The Test/read and Set/write bus
cycles are done atomically (not interrupted).
- enter_region
- tsl r0, flag if flag is 0, set flag to 1
- cmp r0, 0
- jnz enter_region
- ret
- leave_region
- mov flag, 0
- ret
- If not supported by hardware, TAS can be
implemented by disabling and enabling interrupts.
- TAS can also be implemented using atomic
swap(x,y).
16 Properties
- 1. Busy waiting problem. Better to have the
process blocked on IPC primitive (semaphore,
event counter, message) and then awakened later. - 2. Starvation is possible
- If we have P1, P2, and P3. With improper
scheduling, P1 and P2 may always execute and not
P3. P1 and P2 may have higher priority than P3.
P3 will starve. - Does the other schemes have it?
- 3. Different locks may be used for different
shared resources. - Examples (1) VAX 11, (2) B6500
- MIPS -- Load-Linked/Store Conditional (LL/SC)
- Pentium -- Compare and Exchange, Exchange, Fetch
and Add - SPARC -- Load Store Unsigned Bit (LDSTUB) in v9
- PowerPC -- Load Word and Reserve (lwarx)
17Semaphores
- P V Dijkstra 65 wait
signal Per Brinch Hansen - The semaphore has a value that is invisible to
the users and a queue of processes waiting to
acquire the semaphore. Code for counting
semaphores - type semaphore record value
integer L list of
process end - P(S) S.value S.value-1 if S.value lt
0 then add this process to S.L
block end if - V(S) S.value S.value 1 if S.value
lt 0 then remove a process P from S.L
wakeup(P) // place it on the ready
queue. end if
18Properties of semaphore
- parbegin S.value 1 P1 ... P(S) CS1 V(S)
... P2 ... P(S) CS2 V(S) ... .
. . Pn ... P(S) CSn
V(S) ... - parend
Properties 1. No busy waiting 2. May starve
unless FCFS (scheduling left to the implementer
of semaphores) 3. Can handle multiple users by
proper initialization. Example 3 tape
drivers 4. If S is either 1 or 0, it is called a
binary semaphore or mutex. How to implement a
counting semaphore using mutex?
19Code for Binary Semaphores
waitB(S) if (S.value 1) S.value
0 else place this process in
S.L block
signalB(S) if (S.L is empty) S.value
1 else remove a process P from S.L
wakeup(P)
20How to implement a counting semaphore using
mutex?
- S counting semaphore
- S1 mutex 1
- S2 mutex 0
- C integer
- P(S)
- P(S1)
- C C-1
- if (C lt 0)
- V(S1)
- P(S2)
-
- V(S1)
21mutex vs. futex
- futex is part of recent version of Linux 2.6
- Stands for fast userspace mutex. Gives better
performance. There is less system call done. - System calls are only done on blocking and waking
up a process - _down and _up operations are atomic instructions
(no need for system calls.)
22 More properties and examples
- 5. Can implement scheduling of activities using a
precedence graph. Here we use semaphores for
synchronizing different activities, not resolving
mutual exclusion. An activity is a work done by a
specific process. Initially system creates all
processes to do these specific activities. For
example, process x that performs activity x
doesnt start performing activity x unless it is
signaled (or told) by process y. - Example of process synchronization
- Router fault detection, fault logging,
alarm reporting, and fault fixing. - 1. Draw process precedence graph
- 2. Write psuedo code for process
synchronization using semaphores - 6. Proper use can't be enforced by compiler.
- e.g. P(S) V(S) CS CS
V(S) P(S) - e.g. S1, S2
- P1 P(S1) P2 P(S2) P(S2)
P(S1) CS CS V(S2)
V(S1) V(S1) V(S2)
?This is a deadlock situation
23Classical problems
- The bounded buffer problem
- The readers and writers problems
- The dining philosophers problem
24The Producer-Consumer Problem
- bounded buffer (of size n)
- one set of processes (producers) write to it
- one set of processes (consumers) read from it
- semaphore full 0 / counting semaphores
/ empty n mutex 1 /
binary semaphore / - process Producer process Consumer do
forever do forever .
P(full) / produce /
P(mutex) - . / take from
buffer / P(empty) V(mutex)
P(mutex) V(empty) - / add to buffer / . V(mutex)
/ consume / V(full)
. end end
25The Readers and Writers Problem
- Shared data to be accessed in two modes reading
and writing. Any number of processes permitted to
read at one time writes must exclude all other
operations. - Read WriteRead Y N
conflictWrite N N matrix - Intuitively
- Reader Writers
when(writers0) do when(readers0
readersreaders1 and writers0) do
writers 1
ltreadgt ltwritegt
readersreaders-1
writers 0 . . .
. .
.
26Semaphore Solution to Readers and Writers
- Semaphore mutex 1 / mutual excl. for
updating readcount / wrt 1 / mutual excl.
writer / - int variable readcount 0
- Reader P(mutex) readcount
readcount 1 if readcount 1 then
P(wrt) V(mutex) ltreadgt
P(mutex) readcount readcount 1
if readcount 0 then V(wrt)
V(mutex) - Writer P(wrt) ltwritegt
V(wrt) - Notes wrt also used by first/last reader that
enters/exits critical section. Solution gives
priority to readers in that writers can be
starved by stream of readers.
27The Dining Philosopher Problem
- Five philosopher spend their lives thinking
eating. - One simple solution is to represent each
chopstick by a semaphore. - P before picking it up V after using it.
- var chopstick array0..4 of semaphores1philoso
pher i - repeat P( chopsticki ) P(
chopsticki1 mod 5 ) ... eat
... V( chopsticki ) V(
chopsticki1 mod 5 ) ... think
... forever - Is deadlock possible?
28Concurrent Programming
- An OS consists of a large number of programs that
execute asynchronously and cooperate. - Traditionally, these programs were written in
assembly language for the following reasons - High-level languages (HLL) did not provide
mechanisms for writing machine-dependent code
(such as device drivers). - HLL did not provide the appropriate tools for
writing concurrent programs. - HLL for concurrent programs were not efficient.
- HLL for OS must provide facilities for
synchronization and modularization. - Two ways used by HLL
- Critical Regions and Conditional Critical Regions
- Monitors
29Motivating examples
- P and V operations are better than shared
variables but still susceptible to programming
errors - P(S) P(S) . gt
. . .V(S)
P(S) - P(S1) P(S1) .
.P(S2) P(S2) .
gt . . .V(S2)
V(S1) .
.V(S1) V(S2)
30Critical Regions
- A higher-level programming language construct
proposed in 1972 by Brinch Hansen and Hoare. - if a variable is to be shared, it must be
declared as such - access to shared variables only in mutual
exclusion - var a shared int var b shared int
region a do -- access variable a -- -
- Compiler generates equivalent code using P and V
- P(Sa)
- -- access variable a --
- V(Sa)
31Critical Regions aren't perfect
- Process 1
- region a do
- region b do stmt1
- Process 2
- region b do
- region a do stmt2
32Conditional Critical Regions
- Critical regions are basically a mutex
- They are not easily adapted to general
synchronization problems, i.e. those requiring a
counting semaphore - Hoare, again in 1972, proposed conditional
critical regions - region X when B do S
- X will be accessed in mutual exclusion in S
- process delayed until B becomes true
33 The Producer-consumer problem
- Var buffer shared record pool
array0...n-1 of item count, in,
out integer 0 - Producer
- region buffer when count lt n do begin
poolin item_produced in in 1 mod
n count count 1 end - Consumer
- region buffer when count gt 0 do begin
item_consumed poolout out out 1
mod n count count 1 end
34Monitors
- A monitor is a shared data object together with a
set of operations whichs manipulate it. - To enforce mutual exclusion, at most one process
may execute operations defined for the data
object at any given time. - All uses of shared variables are governed by
monitors. - Support data abstraction (hide implementation
details) - Only one process may execute a monitor's
procedure at a time - data type condition for synchronization(can be
waited or signaled within a monitor procedure) - Two operations on condition variables
- wait Forces the caller to be delayed. Exclusion
released. Hidden Q of waiters. - signal One waiting process is resumed if there
are waiters.
35Semaphore using monitors
- type semaphore monitor var busy boolean
nonbusy condition - procedure entry P begin if busy then
nonbusy.wait fi busy true end P - procedure entry V begin busy
false nonbusy.signal end V - begin busy false end monitor
- What could be other ways to implement
semaphores? - Solving Dinning Philosophers problem using
Monitors in textbook.
36Further Readings
- Solving Dining Philosophers using Monitors.
