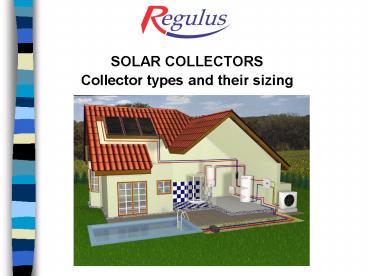

SOLAR COLLECTORS

1

• SOLAR COLLECTORS
• Collector types and their sizing

2
Solar system sizing
Annual sums of global irradiance on horizontal
surface in the CR kWh/m2
3
Solar system sizing
4
Solar system sizing
Annual solar irradiance on variously oriented
(horizontal axis) and variously inclined
(vertical axis) planes in the Czech Republic
kWh/sqm
5
Solar system sizing
6
Solar system sizing
ABSORPTANCE OF VARIOUS COLLECTOR SURFACES
7
Solar system sizing
8
Solar system sizing
Collector surface sizing for DHW

• Determining the heat needed
• Usual consumption of DHW 50 liters per person
  per day
• Equation Qm.c.(T2-T1), where T1 10C
• T2 45C
• The heat needed is 2 kWh/person.day

9
Solar system sizing
Collector surface sizing for DHW

• The period when the heat need for DHW is fully
  covered by solar collectors
• Usually designed for April August
• According to the chart of average gains in each
  month, the least energy is available in April
  4 kWh/m2.day

10
Solar system sizing
Collector surface sizing for DHW

• Determining daily gains and a collector area
• With the average 50 efficiency of the system in
  this period (involves also source
  instability!!!), the daily gain is 2 kWh/m2.day
  which is exactly the daily heat needed for 1
  person.
• gt 1 person 50 liters DHW 1 m2 of collector

11
Solar system sizing
12
Accessories to solar systems
13
SOLAR COLLECTORS
14
KPC Collector
15
Technical parameters of KPC Collector
Dimensions 1000 x 2000 x 80 Collector
surface 2 m2 Absorber type copper
/ tube-grid type Absorber surface
spectrally highly selective Fluid volume
2.0 liters Weight 34 kg 4mm glass
solar prismatic Max. working pressure
0.6 MPa
16
KPS Collector
17
Technical parameters of KPS Collector
Dimensions 1139 x 2039 x 56 Collector
surface 2.32 m2 Absorber type
copper / meander-shaped Absorber surface
spectrally highly selective Fluid volume
1.6 liters Weight 41 kg 4mm glass
solar prismatic Max. working pressure 0.6
MPa
18
Evacuated tube collectors
19
KTU 10 and KTU 15 Collectors
20
KTU 10 and KTU 15 Collectors
KTU 10 KTU 15 Dimensions 1000 x 1970
x 140 1430 x 1970 x140 Tube surface 0.82
m2 1.22 m2 Collector type vacuum with
U-tubes Absorber surface spectrally highly
selective Fluid volume 1.7 liters 2.4
liters Weight 41 kg 60 kg Max. working
pressure 0.6 MPa
21
ETC16 Collector
22
ETC16 Collector
23
ETC16 Collector
24
Technical parameters of ETC16 Collector
Dimensions 1684 x 765 x
100 Collector type with evacuated
tubes Absorber surface spectrally highly
selective Fluid volume 3.2
liters Weight 20 kg Max. working
pressure 0.6 MPa
25
Accessories to solar systems
R125 Pump Group

• single-pipe type
• WILO Star RS25/4 pump
• thermometer and pressure gauge
• safety valve
• connection to an exp. tank
• feed and bleed valves

26
Accessories to solar systems
VRD125 Pump Group

• two-pipe type
• WILO Star RS25/6 pump
• thermometers and pressure gauge
• safety valve
• connection to an exp. tank
• feed and bleed valves
• air separator

27
Accessories to solar systems
FlowCon B Pump Group

• two-pipe type
• WILO Star ST20/6 pump
• thermometers and pressure gauge
• safety valve
• connection to an exp. tank
• feed and bleed valves
• DeltaSol regulator can be built in

28
Accessories to solar systems
FlowCon S Pump Group

• two-pipe type
• WILO Star ST20/6 pump
• pressure gauge
• safety valve
• connection to an exp. tank
• feed and bleed valves
• DeltaSol BS/3 or Pro Regulator and 2 Pt1000
  probes included

29
Accessories to solar systems
Expansion tanks for solar systems

• G Solar type
• max. overpressure up to10 bar
• 8, 12, 18, 25, 35 and 50 l volume

30
Accessories to solar systems
DHW Tanks

• one heating coil
• electric heating possible
• magnesium anode
• volume 200 to 1000 liters

31
Accessories to solar systems
DHW Tanks

• two heating coils
• electric heating possible
• magnesium anode
• volume 200 to 1000 liters

32
Accessories to solar systems
Accumulation Tanks with DHW tank

• one heating coil
• inserted DHW tank
• magnesium anode
• electric heating possible
• volume 600 to 1500 liters

33
Accessories to solar systems
Accumulation Tanks

• 2 flanges
• 9 inlets G6/4
• 4 inlets G1/2
• heat exchangers can be inserted into flanges

34
Accessories to solar systems
Flange-mounted heat exchangers

• sizes 0.6 4.5 m2

35
Accessories to solar systems
Electric heating rods

• nickel-plated copper
• threaded head G6/4
• 2 to 12 kW output
• novelty heating rods with thermostat
