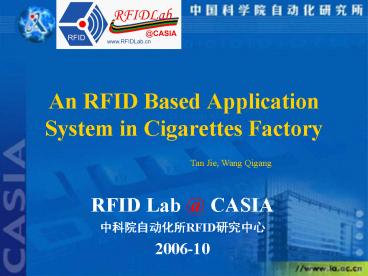

An RFID Based Application System in Cigarettes Factory

1
An RFID Based Application System in Cigarettes
Factory
Tan Jie, Wang Qigang

• RFID Lab _at_ CASIA
• ???????RFID????
• 2006-10

2
Introduction
3
Our Work

• Carton
• HF(13.56MHz) RFID system substitutes for
  barcode system on the cigarettes production line .

• Pallet
• Dynamic data recording and modification with
  UHF(860-900MHz) RFID system for stackby-stack
  transportation of cigarettes .
• Thirty cigarette-cartons on a pallet make a
  stack.

4
Why RFID?

• Advantages of RFID compared to barcode

1.No need of light and larger read range
2.Writable
3.Long life time and high reliability
Others
5
Frequency Selection
Requirements a. The auto-identifying requirement
is realized at a minimum cost. b. The
interrogating range on the production line must
be no less than 5 centimeters, and on pallet
transport no less than 30 centimeters c. The
pallet tag must be writable and its duration of
writing data into the memory should be as short
as possible.

• 125KHz
• 13.56MHz
• 433MHz
• 860-900MHz
• 2.45GHz
• 5.8GHz

6
Implementation
7
Reconstructed production line
8
Pallet with UHF Tag
9
UHF Reader Antenna
10
Architecture of the software system

• The Back End
• The Front End

11
Problems and Solutions
12
Problems and Solutions

• HF reader fails to read
• Cartons fall down from the suction cup
• UHF tag writing ability test
• Data accordance check
• Data redundancy and compact

13
Results and Future Work
14
Percentage of normal stacks to total stacks
Factors of abnormal stacks and their percentages
15
Results and Analysis

• Repeat
• Hybrid
• In-accordance
• Write Failure
• Memory Empty
• Read ID Failure

This is because the non-deterministic nature of
RFID slotting or back-scatting communication
protocols 14.
14. NiravC hokshi, Alan Thorne, Duncan
McFarlane. Routes for Integrating Auto-ID Systems
into Manufacturing Control Middleware
Environments. Auto-ID Center, white paper.
16
Achievements

• The HF RFID usage is not so much satisfying.
• The UHF RFID system is exciting.

-It reduces the transport time of each stack
. -It reduces the damages to the
cigarette-cartons . -It paves the way for the
realization of digital warehouse management.
17
Future Work

• RFID technology is adopted in the whole tobacco
  industry chain

From production line to warehouse management,
until to retail process on the shelf, it will
realize visible tracking of products, physical
distribution management based on real time
information
18
Conclusions

• HF
• UHF
• Conclusively
• This pilot project has testified some
  advantages of RFID technology.

19
Wang Qigang (???)frank_gang_at_163.com
Thanks!
www.RFIDlab.cn www.RFIDinfo.com.cn

• RFID Lab _at_ CASIA
• 2006
