CiphertextPolicy AttributeBased Encryption

1

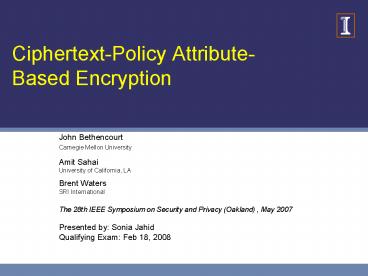

Ciphertext-Policy Attribute-Based Encryption

• John Bethencourt
• Carnegie Mellon University
• Amit Sahai
• University of California, LA
• Brent Waters
• SRI International
• The 28th IEEE Symposium on Security and Privacy
  (Oakland) , May 2007
• Presented by Sonia Jahid
• Qualifying Exam Feb 18, 2008

2
Server Mediated Access Control
Alice

• Server compromise results in data compromise
• Harder with replication
• Encrypt data

Alice, Bob
Alice, read file1
Bob, read file 1
Storage Server
Alice has enough credentials
Bob does not have enough credentials
What are the problems with this approach?
3
Data Storage with Encryption

• Should the same key be used to encrypt all the
  files?
• Coarse access control
• Should a different key be used to encrypt each
  file?
• Key management problem
• What about users having common properties?

Alice, Bob
Bob
Storage Server
Owner encrypts each file before storing
Attribute Based Encryption
4
Attribute Based Messaging

• Use encryption to provide confidentiality
• Using each recipients public key
• Unknown users
• Using policy over the attributes

ABM
To Professor OR (RA AND Security)
b_at_uiuc.edu
a_at_uiuc.edu
Attribute Based Encryption
5
Contribution

• Ciphertext Policy Attribute Based Encryption
  (CP-ABE)
• Encrypt the data under a policy over some
  attributes
• Key having enough attributes can decrypt the data
• The data is self-protective

6
Outline

• Overview of the Mechanism
• Design
• Discussion
• Other Attribute Based Encryption Systems

7
Overview of CP-ABE
PK
MSK
Key Authority

• Message1 can be viewed by
• Professor OR (RA AND Security)
• Professor OR (RA AND Security)

PK
SKSarah Attribute Professor, Architecture
Professor OR (RA AND Security)
SKSam Attribute RA, Networking
Professor OR (RA AND Security)
Professor OR (RA AND Security)
8
Policy Representation

• Policy represented as tree
• Leaves are attributes
• Other nodes are k of n threshold gates
• Easy to understand
• Negation not supported
• Use not attribute as another attribute
• Should be able to decrypt using SKStudent, Music

Professor OR (Student AND Not CS)
?
Student, Music
Student, Not CS
Student, Not Math
9
Secret Key

• KeyGen(MK, S) ? SK

The Key
SK
SKr,r1
SKr,r2
SKr,r3
SKr,r4
SKr,r5
Key Components
Attributes
S1
S2
S3
S4
S5
10
Encryption

• Encrypt (PK, M,T) ? CT
• M x secret ? CT

11
Decryption

• Decrypt (CT, SK) ? M
• M x secret ? CT
• SK RA, Security

SK
q(x)
SKr,r1
SKr,r1
SKr,r2
SKr,r1
SKr,r2
SKr,r2
x
12
Collusion Resistance
OR
SK
AND
Professor
Security
RA
SKr,r1
SKr,r2
SKr,r3
SKr,r4
SKr,r5
SKSam RA, Networking
SKLars TA, Security
13
Key Revocation

• Problem
• Implicit key distribution
• No explicit certification
• Solution
• Encrypt the message under an additional date
  attribute, Y, e.g., Dec 26, 2007
• Add Expiry date to the key as an attribute X,
  e.g., Mar 26, 2008

Problem still exists
14
Key Revocation A Scenario

• Professor AB leaves on Feb 26, 2008
• Attribute is updated but key can not be revoked
• A vulnerability window of 29 days in the previous
  example Key expires on Mar 26, 2008
• So, key validity period should be based on
• the sensitivity of the message, and
• VW it is willing to tolerate
• Example
• Only valid Professors get data but the data is
  not so sensitive and can be tolerated to be read
  by the left Professor till Oct 26, 2008
• Otherwise, give new key to everyone
• Becomes a scalability issue for Key Authority

15
Central Key Authority

• Works in a single domain
• Example
• Issue a key for the attribute
• Student at UIUC, Driving License at 2008
• Not Possible
• Attributes are from different domains
• UIUC KA can issue key for Student at UIUC
• DMV KA can issue key for Driving license at
  Illinois
• There should be connection between these two
  components, which is not possible with two KAs

16
Other Attribute Based Systems

• Sahai and Waters 2005 Fuzzy Identity Based
  Encryption
• ABE originates from this idea
• Uses biometric identities as users attributes
• Goyal, Pandey, Sahai, Waters 2006 Attribute
  Based Encryption for Fine-Grained Access Control
  of Encrypted Data
• Policy is in key
• Idea is, user Xs key can access data a,b,c,d
• CP-ABE resembles ACL (who has access)
• KP-ABE is capability (what can be accessed)

17

• Thank You!

18

• Backup Slides

19
Basics

• Pairing Based Cryptography
• Construct a mapping between two useful
  cryptographic group reducing one problem in one
  group to a different easier problem in other
  group
• Group
• If a,b e G then ab e G
• (ab)c a(bc)
• Ia aI a
• Every aeG has an inverse, aa-1 a-1a I
• Example
• Z51,2,3,4 is multiplicative cyclic group, I
  1, g2
• mG, am I

20
Non Monotonic Access Structure

• Proposed for Key Policy Attribute Based
  Encryption (KP-ABE)
• Adopted for CP-ABE
• Check for absence of Networking in Bobs
  attributes

OR
AND
Professor
RA
NOT
Networking
Ostrovsky, Sahai, Waters
21
Notation Details

• G0, G1
• Multiplicative Cyclic Groups of prime order p
• G0 ltggt
• g is a generator of G0
• e G0 x G0 ? G1
• Bilinear mapping
• e(ua,vb) e(u,v)ab u,v e G0,a,b e Zp
  Zp0,1,2, , p-1
• e(g,g) generates G1
• H0,1 ? G0
• Map string attribute to random G0 element

22
Setup Details

• Setup ? PK, MK

23
Secret Key Details
SK
SKr,r1
SKr,r2
SKr,r3
SKr,r4
SKr,r5
S1
S2
S3
S4
S5
a, ß e Zp
24
Encryption Details
a, ß e Zp
25
Decryption Details Simplified
Polynomial of degree kx-1, where kx is
threshold D is the secret
q(x) 2x 5 q(x) ax D
AND
Security
RA
q1(0) q(1) 7 q1(x) 7
q2(0) q(2) 9 q2(x) 9
Having key for RA means to know q(1) 7 a
D Having key for Security means to know q(2) 9
2a D Solve and get D 5
26
Decryption Details
CT
SK
For each leaf node x

• i att(x)
• Put H(i) gt as H(i) gets an element in G0
• Coefficient cancellation using the property of
  bilinearity

27
Decryption Details
For each non leaf node x
28
Identity Based Encryption

• Key is associated with set of attributes, ?
• File encrypted under set of attributes, ?
• A key? can decrypt a file? when
• ? n ? d, where d is a threshold
• Used for Biometric Identity based encryption

29
Key Policy Attribute Based Encryption

• This key can read
• Security OR (CS AND Admission) files

Attributes Security CS UIUC
OR
AND
Security
Attributes Admission ECE UIUC
Admission
CS
30
Key Management

• User has to store keys
• Keys are given based on attributes
• So, each key has to be stored for different
  purpose

31
Experimental Setup

• 160 bit G0, 512 bit G1
• e(g,g) takes 5.5 ms
• Exponentiation takes
• 6.4 ms in G0
• 0.6 ms in G1
• Randomly selecting elements requires
• 16 ms for G0
• 1.6 ms for G1

32
Performance Measurement Key Generation

• Linear with number of attributes
• Two Exponentiation for each leaf

33
Performance Measurement Encryption Time

• Linear with number of attributes
• Two Exponentiation for each leaf
• Polynomial operations for each node

34
Performance Measurement Decryption Time

• Requires
• 2 paring for every matched leaf in tree
• 1 exponentiation for each node along a path from
  such a leaf to root
• Depends on
• Access tree
• Attributes involved
• Decrypted ciphertexts that were encrypted with
  random trees
• Randomly selected keys that satisfy the policy
• Three approaches
• Naive recursive
• Flatten reduced exponentiation
• Merge reduce pairing for similar attributes
• Required more time as exponentiation are more
  expensive in G0 rather than G1
