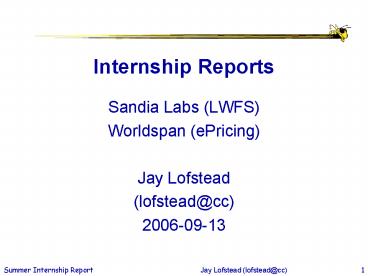

Internship Reports

1
Internship Reports

• Sandia Labs (LWFS)
• Worldspan (ePricing)
• Jay Lofstead
• (lofstead_at_cc)
• 2006-09-13

2
Sandia Labs Overview

• HPC architecture and LWFS goals
• LWFS architecture and use
• Data transformation services motivation
• The Data Transforming File System

3
HPC Architecture

• Compute Nodes
• Service Nodes
• I/O Nodes
• Different machines, different architecture
• Sandia
• Oak Ridge

4
Lightweight File Systems

• Minimal overhead toolkit
• Asynchronous operation
• Object-based storage
• Secure data access
• Optional additional features
• Minimal naming service (incl. directories)
• Transactional storage support
• Object attributes
• Everything else in a user library!

5
Data Transformation Services

• Feedback looks back into applications
• Offloading storage related computation
• Reduced data storage bandwidth by recalculating
  data offline
• Real-time visualization and/or data validation

6
Data Transforming File System

• Posix-style file API
• Extensions to support transformation descriptions
• New filename
• Specified as part of file open
• Integrated existing research tools

7
DTFS Results

• LWFS nearly complete enough for convenient
  implementation
• Some designed, but not yet implemented, portions
  (object attributes) would have made it easier
• Sufficient functionality for a semi-hard coded
  demo

8
DTFS Future Work

• Integrate overlay network support
• Fill in implementation gaps for file access
  testing
• Integrate into a prototype application rather
  than just the test harness

9
LWFS Summary

• Questions?

10
Worldspan Overview

• Worldspans business
• Data processing and update model
• Current implementation
• Proposed/In development architecture

11
Worldspans Business

• 1 provider of online airline tickets in the
  world (70 of the market)
• Offers other travel-related services (hotel,
  rental car, cruises, etc.)
• Backend supplier for many big names
• Priceline.com, Expedia, Orbitz, etc.

12
Data Processing and Update Model

• 16 GB dataset updated up to 10x per day (100-250
  MB per update)
• Must respond to queries within 16 seconds
• Processes 12 million queries per day
• 1500 machines do route/price computations

13
Current Implementation

• Each update causes build of optimized memory
• Distributes image to each query server
• Swaps to new image roughly in synch
• Build takes around 2 hours
• Distribution takes around 1 hour
• Query machine processing impacted here

14
Proposed Architecture

• Move to a centralized RDBMS with local caches
• Less data to move on updates
• Roughly maintains query performance through local
  cache
• Split LAN into multiple virtual networks each
  with multiple DB servers
• Reduces bottleneck of DB access
• Keeps query servers more independent

15
Current State

• Database built and query performance measured
• Query queue partitioning for optimal cache hits
  being calculated
• Database updates taking less than 1 hour
• Data replication costs not yet measured
• Cache initialization/swap impact costs not
  measured

16
Worldspan Summary

• Questions?
