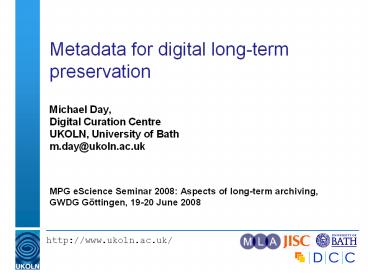

Metadata for digital long-term preservation

1
Metadata for digital long-term preservation

• Michael Day,Digital Curation CentreUKOLN,
  University of Bathm.day_at_ukoln.ac.uk
• MPG eScience Seminar 2008 Aspects of long-term
  archiving, GWDG Göttingen, 19-20 June 2008

2
Presentation outline

• Some definitions
• An abstract approach OAIS
• A framework for practical implementation the
  PREMIS Data Dictionary
• Some open questions for e-research data

3
Definitions (1)

• Metadata
• A relatively new term that is used to describe a
  very old concept
• We primarily need to think about the different
  functions it enables, e.g. discovery and access
  management, the management of resources,
  long-term preservation, etc.

4
Definitions (2)

• Preservation metadata
• ... the information a repository uses to support
  the digital preservation process (PREMIS Data
  Dictionary)
• Potentially very wide scope
• Technical information on data structures or
  formats
• Information to help better understand the content
• Information on contexts and provenance
• Information on preservation processes

5
Definitions (3)

• Metadata for research data
• Metadata are fundamentally important to the
  continued understanding and exploitation of
  research data
• It is impossible to conduct a correct analysis
  of a data set without knowing how the data was
  cleaned, calibrated, what parameters were used in
  the process (Deelman, et al 2004)
• In some cases, extremely detailed documentation
  will be required
• Captured from various stages of lifecycle

6
The OAIS Information Model (1)

• General OAIS background
• An ISO standard (ISO 147212003)
• Development led by the Consultative Committee on
  Space Data Systems
• Provides standard terminology and defines two
  interrelated models (functional model,
  information model)

7
The OAIS Information Model (2)

• Some general principles
• OAIS entities (Data Objects and Content
  Information) are conceptually bound together with
  information that provides additional meaning
• There are two main classes of this
• Representation Information
• Preservation Description Information

8
The OAIS Information Model (3)

• Representation Information
• Is tightly bound with the Data Object
• Provides a bridge between the bit-level
  information being stored in an OAIS and something
  that can be understood
• Describing data structure concepts, or formats
  (Structure Information)
• Providing additional information on semantics
  (Semantic Information)

9
The OAIS Information Model (4)

• Preservation Description Information
• The additional information needed to make the
  Content Information meaningful for the indefinite
  long-term (p. 4-33)
• For example, the information needed to preserve
  the Content Information, to ensure that it is
  clearly identified, and to understand the
  environment in which the Content Information was
  created (p. 2-6)
• Reference, Context, Provenance, Fixity

10
The OAIS Information Model (5)

• Lessons from OAIS (1)
• Data objects (and content) need to be closely
  coupled with additional layers of information
  (metadata) that will help provide meaning and
  context, etc.
• These layers broadly reflect the main
  characteristics of digital information (physical,
  logical, intellectual)
• Produces self-documenting objects

11
The OAIS Information Model (6)

• Lessons from OAIS (2)
• It highlights the importance of preserving
  context and provenance (but these are quite
  vaguely defined)
• OAIS works on an abstract level, but there is a
  need to think about what needs to be done in
  practical terms to develop preservation metadata
  schemata ...

12
PREMIS Data Dictionary (1)

• Background (1)
• PREMIS Working Group (2003-2005)
• An attempt to develop something that would be
  implementable
• Development informed by OAIS model
• Built upon on several initiatives that had been
  developing preservation metadata schemas and
  frameworks prior to 2003
• Data Dictionary first published in May 2005 v.
  2.0 in March 2008

13
PREMIS Data Dictionary (2)

• Background (2)
• PREMIS Maintenance Activity set up by Library of
  Congress
• PREMIS Implementers Group (open discussion list)
• Recent revision of PREMIS takes account of the
  experiences of implementers

14
PREMIS Data Dictionary (3)

• What PREMIS aims to do
• The Data Dictionary is specifically focused on
  defining the core metadata needed for long-term
  preservation
• ... the information a repository uses to support
  the digital preservation process
• Related to a series of verbs
• ... functions to maintain viability,
  renderablility, understandability, authenticity,
  and identity in a preservation context
• Based on a data model

15
PREMIS Data Dictionary (4)

• PREMIS Data Model
• Recognises that digital preservation is as much
  about describing processes as well as objects
• Five entities
• Intellectual Entities
• Objects
• Events
• Agents
• Rights

16
PREMIS Data Dictionary (5)
PREMIS 2.0 Data Model
Intellectual entities
Rights
Agents
Objects
Events
17
PREMIS Data Dictionary (6)

• PREMIS usage (1)
• Survey undertaken for PREMIS Maintenance Activity
  (2007)
• 16 repositories and projects surveyed (mostly
  dealing with documents rather than data)
• Survey noted much diversity in the way PREMIS had
  been implemented
• Tools were being used to capture technical
  metadata automatically
• Formats could be identified using tools like
  JHOVE and PRONOM DROID

18
PREMIS Data Dictionary (7)

• PREMIS usage (2)
• No major eScience input into PREMIS
• PREMIS is occasionally used to help inform the
  preservation of research data
• The National Snow and Ice Data Centre has used
  PREMIS as a way of evaluating its own
  OAIS-inspired metadata schema
• The Stanford Digital Repository has experimented
  with the using PREMIS for geospatial resources
• Experiments with the Yale Social Science Data
  Archive

19
PREMIS Data Dictionary (8)

• Lessons from PREMIS
• The Data Model demonstrates the importance of
  recording the contexts of preservation (events,
  agents), not just metadata on the objects
• Currently little used in the e-research domain,
  but it has some potential where structured
  metadata already exists in some form (e.g.,
  CSDGM, DDI)

20
Implications for e-research (1)

• The role of standards
• The development of standards (e.g. PREMIS)
  assumes that there is some level of commonality
  between domains
• However, generic solutions are not really
  feasible for e-research data because of the
  diversity and complexity of
• Research data (content)
• Research contexts
• Stakeholders

21
Diversity and complexity (1)

• Diversity of content (1)
• Research data is ... any information that can be
  stored in digital form, including text, numbers,
  images, video or movies, audio, software,
  algorithms, equations, animations, models,
  simulations, etc. (National Science Board,
  Long-lived digital data collections, 2005)

22
Diversity and complexity (2)

• Diversity of content (2)
• Research data is extremely diverse - not really a
  single category of material
• tabular data, images, GIS, etc.
• raw machine output vs, derived data
• varying levels of structure (XML, legacy formats,
  etc.)
• many different standards
• Research data is not homogeneous
• No one-size-fits-all approach possible

23
Diversity and complexity (3)

• There is an even wider range of social contexts
  in which data is used (and shared)
• DCC SCARP project has been exploring disciplinary
  factors in curation practice
• Practice even within single disciplines is very
  fragmented
• Case studies ongoing
• Big-science archives, medical and social
  sciences, architecutre and engineering,
  biological images

24
Diversity and complexity (4)

• Major disciplinary differences
• Attitudes towards data sharing
• Some are very open, some cannot see the point
• Existence of data centre infrastructures
• In UK some centrally funded data centres, not
  universal
• Where do institutions fit?
• The existence of standards
• Already present in social sciences (DDI), the
  geospatial domain (FGDC), and many others

25
Diversity and complexity (5)

• Diversity of stakeholders
• The many different actors that have an interest
  in data curation means that metadata requirements
  may differ
• Dealing with data (2007) Scientist, Institution,
  Data centre, User, Funder, Publisher
• Long-lived data collections (2005) Data authors,
  Data managers, Data scientists, Data users,
  Funding agencies

26
Implications for e-research (2)

• Metadata for digital curation or for long-term
  preservation?
• The concept of digital curation focuses on reuse
  and adding value - long-term preservation is not
  always the aim
• PREMIS metadata is focused on particular things
  (viability, renderablility, understandability,
  authenticity and integrity)
• What metadata do we need for digital curation?
  Could this ever be generic?

27
Implications for e-research (3)

• Metadata can be difficult to identify
• Difficult sometimes to work out where data ends
  and metadata begins
• Depends on the point of view of the researcher

28
Implications for e-research (4)

• Lifecycle view
• Metadata has to be captured at multiple places in
  the scientiic workflow
• Need to capture
• Processes (can be driven by instrumentation)
• Provenance
• Context

29
Implications for e-research (5)

• Big science, little science
• Big science is by its nature data driven, and
  will often develop appropriate frameworks for its
  management and reuse (data centres, data grids)
• Other scientific domains (e.g, ecology,
  biodiversity, chemistry) are moving in the same
  direction, but data retain a high-level of
  diversity and complexity

30
Summing-up

• The OAIS Information Model provides an abstract
  framework for thinking about preservation
  metadata
• PREMIS provides an implementation framework that
  is beginning to be adoped in some domains
• There are still many unresolved questions when it
  comes to defining metadata for research data

31
