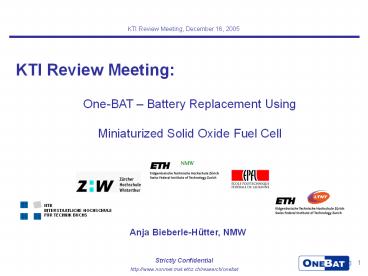

KTI Review Meeting:

1
KTI Review Meeting
KTI Review Meeting, December 16, 2005
One-BAT Battery Replacement Using Miniaturized
Solid Oxide Fuel Cell
Anja Bieberle-Hütter, NMW
2
Agenda
9.30 9.45 am Welcome and General
Introduction 9.45 10.00 am Summary of
Project Manager 10.00 10.30 am WP 1 Fuel
Cell Development 10.30 11.00 pm WP 2 Gas
Processing Unit Development 11.00 11.30 pm
WP 3 Thermal System Management 11.30 12.00
pm WP 5 Project Management, Battery Expert
and Industrial Partners 12.00 12.15 pm
Final Discussion 12.15 1.15 pm Lunch
General Introduction
3
Motivation for the Project
mobile application
stationary application
micro-SOFC
Sulzer Hexis, CH, 2000

• Scientific interests
• miniaturization and MEMS processing of SOFC
  materials and its periphery
• fundamental aspects of nanocrystalline thin films
• investigation of electrode kinetics, reforming
  and combustion processes

• Technical interests
• miniaturization of SOFC systems
• alternative to and improvement of
  state-of-the-art batteries
• very high energy density
• immediate charging
• long battery life-time
• geographical independence

General Introduction
4
Emergence of Micro-Fuel Cells
predicted performance
state-of-the-art products
(Source Manhattan Scientifics L. Livermore
National Laboratories)
General Introduction
5
Goal of the One-Bat Project

• Development of miniaturized SOFC hybrid power
  source for small electronic equipment
• Evaluation of micro-fabrication techniques for
  SOFC materials
• System operation directly on liquid gas (e.g.
  butane)
• Integration of significant achievements in fuel
  cell integration, gas processing, and heat
  management at the micro-system scale

Are micro-SOFCs feasible ? How could a micro-SOFC
look like?
General Introduction
6
Single System Design
Average power 1.1 W (peak power 5 W) Overall
volume 30 cm3 Vol. energy density 950
Wh/l Lifetime (speak time) 1000 h Specific
Power 350 mW/cm2
Electrical efficiency 30 Produced heat
(peak) 2.60 Wth Fuel energy density 11
kWh/kg Peak gas flow 0.29 g/h Air to Fuel ratio
3 ?
General Introduction
7
Structure of the Project
Fuel Cell
Workpackage 1
Gas Processing
Workpackage 2
Workpackage 3
Thermal System
Product Development
Workpackage 4
not part of 1 year project
Project Management
Workpackage 5
Summary of Project Manager
8
Co-Workers
Fuel Cell
Prof. L.J. Gauckler
Gas Processing
Thermal System
Project Management
CERION,
Dr. A. Bieberle-Hütter
Summary of Project Manager
9
Battery Expert on-boat
Dr. Hans-Walter Praas

• past business manager Varta, Duracell,
  Mitsubishi Chemicals, CTO of Ionity
• independent consultant and technology advisor on
  some areas of energy storage
• representing among others the HPL High Power
  Lithium, Lausanne (cathode and anode
  materials for high performance batteries), other
  companies in the field of Li-ion batteries

10
Year 1 Milestones

• performance 200 mW/cm2 _at_ 550C
• external electrical connections

Fuel Cell

• butane conversion rate gt 90
• post-combustor with gas oxidation gt 98

Gas Processing

• thermal insulation concept with
• Tinside 550C, Toutside 50C, lt10 cm3
• structures for validation critical points
• thermal system demonstrator with
• simulated 2 W heat source

Thermal System
Project Management

• battery expert
• industrial partner

Summary of Project Manager
11
Main Achievements after 6 Months
first cell with 12 mW/cm2
Fuel Cell
Gas Processing
Thermal System
Thermal insulation concept 600C with 2 W. It
could work!
Project Management
Summary of Project Manager
12
Publications
4 Patents

• L.J. Gauckler, D. Beckel, U.P. Mücke, P. Müller,
  J.L.M. Rupp, Verbundelement, application
  October 19, 2005 (01682/05)
• L.J. Gauckler, D. Beckel, U.P. Mücke, P. Müller,
  J.L.M. Rupp, Dünnfilm und damit hergestelltes
  Verbundelement, application October 19, 2005
  (01682/05)
• D. Beckel, L.J. Gauckler, Poröser keramischer
  Dünnfilm" application November 21, 2005
  (01851/05)
• P. Muralt, S. Rey-Mermet, J.Baborwoski, Metallic
  supporting Grid for Thin Film Electrolyte
  Membrane in Solid Oxide Fuel Cells, application
  November 2005

5 Papers (2 published, 3 submitted)

• M.J. Stutz, D. Poulikakos, Effects of
  microreactor wall heat conduction on the
  reforming process of methane, Chem. Eng. Sc. 60
  (2005) 6983-6997.
• A. Bieberle-Hütter, D. Beckel, U.P. Mücke, J.L.M.
  Rupp, A. Infortuna, L.J. Gauckler, Micro-Solid
  Oxide Fuel Cells as Battery Replacement,
  mstnews, August 2005 (2005) 12-15.
• D. Beckel, A. Dubach, A. R. Studart and L. J.
  Gauckler, Spray Pyrolysis of La0.6Sr0.4Co0.2Fe0.8
  O3-d Thin Film Cathodes, submitted to J.
  Electroceramics (2005).
• J.L.M. Rupp, A. Infortuna and L. Gauckler,
  Self-limited Grain Growth of Nanocrystalline
  Ceria Ceramics submitted to Acta Materialia
  (2005).
• J.L.M. Rupp and L. Gauckler, Microstructures and
  Electrical Conductivity of Nanocrystalline Ceria
  based Thin Films, sumitted to Solid State Ionics
  (2005).

13
General Issues

• 3 Meetings
• kick-off meeting (April 14, 2005)
• first project meeting (August 11, 2005)
• second project meeting (November 17, 2005)
• 1 Report
• first controlling report (August 31, 2005)
• web page http//www.nonmet.mat.ethz.ch/research/o
  nebat, password ktionebat
• meeting information agenda, minutes,
  presentations
• reports
• papers
• list of co-workers, ....

Summary of Project Manager
14
Agenda
9.30 9.45 am Welcome and General
Introduction 9.45 10.00 am Summary of
Project Manager 10.00 10.30 am WP 1 Fuel
Cell Development 10.30 11.00 pm WP 2 Gas
Processing Unit Development 11.00 11.30 pm
WP 3 Thermal System Management 11.30 12.00
pm WP 5 Project Management, Battery Expert
and Industrial Partners 12.00 12.15 pm
Final Discussion 12.15 13.15 pm Lunch
15
Agenda
9.30 9.45 am Welcome and General
Introduction 9.45 10.00 am Summary of
Project Manager 10.00 10.30 am WP 1 Fuel
Cell Development 10.30 11.00 pm WP 2 Gas
Processing Unit Development 11.00 11.30 pm
WP 3 Thermal System Management 11.30 12.00
pm WP 5 Project Management, Battery Expert
and Industrial Partners 12.00 12.15 pm
Final Discussion 12.15 13.15 pm Lunch
16
Agenda
9.30 9.45 am Welcome and General
Introduction 9.45 10.00 am Summary of
Project Manager 10.00 10.30 am WP 1 Fuel
Cell Development 10.30 11.00 pm WP 2 Gas
Processing Unit Development 11.00 11.30 pm
WP 3 Thermal System Management 11.30 12.00
pm WP 5 Project Management, Battery Expert
and Industrial Partners 12.00 12.15 pm
Final Discussion 12.15 13.15 pm Lunch
17
Agenda
9.30 9.45 am Welcome and General
Introduction 9.45 10.00 am Summary of
Project Manager 10.00 10.30 am WP 1 Fuel
Cell Development 10.30 11.00 pm WP 2 Gas
Processing Unit Development 11.00 11.30 pm
WP 3 Thermal System Management 11.30 12.00
pm WP 5 Project Management, Battery Expert
and Industrial Partners 12.00 12.15 pm
Final Discussion 12.15 13.15 pm Lunch
18
Agenda
9.30 9.45 am Welcome and General
Introduction 9.45 10.00 am Summary of
Project Manager 10.00 10.30 am WP 1 Fuel
Cell Development 10.30 11.00 pm WP 2 Gas
Processing Unit Development 11.00 11.30 pm
WP 3 Thermal System Management 11.30 12.00
pm WP 5 Project Management, Battery Expert
and Industrial Partners 12.00 12.15 pm
Final Discussion 12.15 13.15 pm Lunch
19
first cell with 12 mW/cm2
Strictly Confidential
