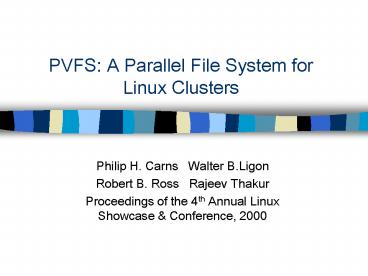

PVFS: A Parallel File System for Linux Clusters

1
PVFS A Parallel File System for Linux Clusters

• Philip H. Carns Walter B.Ligon
• Robert B. Ross Rajeev Thakur
• Proceedings of the 4th Annual LinuxShowcase
  Conference, 2000

2
Abstract

• Linux clusters have pretty matured, but one area
  devoid of support has been parallel file systems
• PVFS Parallel Virtual File System
• High-performance parallel FS
• Tool for pursuing further research in parallel
  I/O and parallel FS

3
Introduction (1/2)

• Design goals
• Provide high bandwidth for concurrent read/write
  operations
• Support multiple APIs
• Native PVFS API
• UNIX/POSIX I/O API
• Other API (such as MPI-IO)
• Common UNIX commands must work with PVFS files
  (ls, cp, rm)

4
Introduction (2/2)

• Design goals (Contd)
• Appls developed with UNIX I/O API must be able to
  access PVFS files without recompiling
• Robust, scalable
• Easy to install and use

5
Related Works-Various FSs

• Commercial parallel FS
• PFS (Intel Paragon), PIOFS/GPFS (IBM SP), HFS (HP
  Exemplar), XFS (SGI)
• Distributed FS
• NFS, AFS/Coda, InterMezzo, xFS, GFS
• FS in research projects related to parallel I/O
  and parallel FS
• PIOUS, PPFS, Galley

6
PVFS Design Impl

• client-server system
• Client user process
• Server multiple I/O daemons (iod)
  manager daemon (mgr)

7
Sample Cluster
head (metadata server node)
/pvfs-meta
mount.pvfs head/pvfs-meta /mnt
n1 (I/O node)
n2 (I/O node)
pvfsd

c1 (client node)

libpvfs
pvfs.o
/pvfs-data
/pvfs-data
/mnt
8
PVFS Design Impl

• PVFS manager and metadata
• Metadata
• Permissions, owner/group membership,
• Physical distribution of file data
• file locations on disk disk locations in
  cluster
• For simplicity, both file data and metadata are
  stored on existing local file systems rather than
  directly on raw devices

9
PVFS Design Impl

• I/O daemons and data storage
• When a client openes a PVFS file
• PVFS manager informs the locations of iods
• Clients establish connections with iod directly
• When a client wishes to access a PVFS file
• Client library sends a descriptor of the file
  region being accessed to io daemons holding data
  in that region

10
PVFS Design Impl

• File striping example

inode 1092157504
.
Base 2
pcount 3
base 65536
11
PVFS Design Impl

• File striping example

pvfs_open(char pathname, int flag, mode_t
mode) pvfs_open(char pathname, int flag, mode_t
mode struct pvfs_filestat dist)
struct pvfs_filestat int base int pcount
int ssize int soff / not used / int
bsize / not used /
12
PVFS Design Impl

• PVFS can be used with multiple APIs
• Native API
• pvfs_open(), pvfs_read(), pvfs_write()
• MPI-IO interface
• MPI_File_open(), MPI_File_read(),
  MPI_File_write()
• UNIX/POSIX API
• By trapping UNIX I/O calls
• open(), read(), write()

13
PVFS Design Impl

• Trapping UNIX I/O calls

application
C library
libc syscall wrappers
kernel
application
C library
PVFS syscall wrappers
kernel
PVFS library
a) Standard operation
b) With PVFS library loaded
14
Performance Results

• Environments (Chiba City cluster)
• 256 nodes
• 500MHz Pentium III, 512M RAM
• 9G Quantum SCSI
• 100M EtherExpress Pro fast-ethernet,64-bit
  Myrinet card
• Linux 2.2.15pre4
• 60 nodes were used in experiment
• Some for compute node, some for I/O node

15
Performance Results

• Disk bandwidth bonnie benchmark
• Write 22 Mbytes/sec
• Read 15 Mbytes/sec
• Network bandwidth ttcp test
• Fast ethernet 10.2 Mbytes/sec
• Myrinet 37.7 Mbytes/sec

16
Performance Results

• Read performance (fast ethernet)

224Mbytes/sec (24 ion/ 24 cn)
24 ion
32 ion
16 ion
aggregate bandwidth (Mbytes/sec)
number of compute nodes
8 ion
4 ion
17
Performance Results

• Write performance (fast ethernet)

18
Performance Results

• Read performance (Myrinet)

687Mbytes/sec (32 ion/ 28 cn)
19
Performance Results

• Write performance (Myrinet)

20
Performance Results

• R/W performance (Myrinet) 32 ion
• native vs. MPI

native read
MPI read
native write
MPI write
