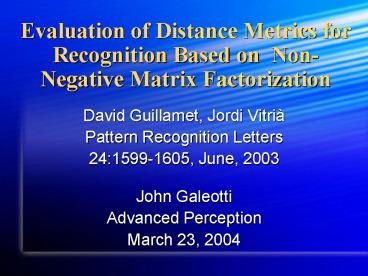

Evaluation of Distance Metrics for Recognition
Based on  Non-Negative Matrix Factorization

• David Guillamet, Jordi Vitrià
• Pattern Recognition Letters
• 241599-1605, June, 2003
• John Galeotti
• Advanced Perception
• March 23, 2004

2
Actually, Two ICPR02 Papers

• Analyzing Non-Negative Matrix Factorization for
  Image Classification
• David Guillamet, Bernt Schiele, Jordi Vitrià
• Determining a Suitable Metric When using
  Non-negative Matrix Factorization
• David Guillamet, Jordi Vitrià

3
Non-Negative Matrix Factorization

• TLA NMF
• Used for dimensionality reduction
• Vnxm WnxrHrxm, r lt nm/(nm)
• V has non-negative training samples as its
  columns
• W contains the non-negative basis vectors
• H contains the non-negative coefficients to
  approximate each column of V using W
• Results similar in concept to PCA, but with
  non-negative basis vectors

4
NMF Distinguishing Properties

• Requires positive data
• Computationally expensive
• Part-based decomposition
• Because only additive combinations of original
  data are allowed
• Not an orthonormal basis

5
Different Decomposition Types

• 20 Dimensions of Numeric Digits
• PCA NMF
• 50 Dimensions of Numeric Digits
• PCA NMF

6
Why not just use PCA?

• PCA is optimal for reconstruction
• PCA is not optimal for separation and recognition
  of classes

7
NMF Issues Addressed

• If/when is NMF better at dimensionality reduction
  than PCA for classification?
• Can combining PCA and NMF lead to better
  performance?
• What is the best distance metric to use with the
  nonorthonormal basis of NMF?

8
How NMF Works

• Vnxm WnxrHrxm, r lt nm/(nm)
• Begin with a nxm matrix of training data V
• Each column is a vectorized data point
• Randomly initialize W and H with positive values
• Iterate according to update rules

9
How NMF Works

• In general, NMF requires the non-linear
  optimization of an objective function
• The update rules just given correspond to a
  popular objective function, and are guaranteed to
  converge.
• That objective function relates to the
  probability of generating the images in V from
  the bases W and encodings H

10
NMF vs. PCA Experiments

• Dataset 10 classes of natural textures
• Clouds, grass, ice, trees, sand, sky, etc.
• 932 color images total
• Each image tessellated into 10x10 patches
• 1000 patches for training, 1000 for testing
• Each patch classified as a single texture
• Raw feature vectors Color histograms
• Each region histogrammed into 8 bins per color,
  16 colors ? 512 dimensional vectors

11
NMF vs. PCA Experiments

• Learn both NMF and PCA subspaces for each class
  of histogram
• For both NMF and PCA
• Project queries onto the learned subspaces of
  each class
• Label each query by the subspace that best
  reconstructs the query
• This seems like a poor scheme for NMF
• (Other experiments allow better schemes)

12
NMF vs. PCA Results

• NMF works best for dispersed classes
• PCA works best for compact classes
• Both seem usefultry combining them
• But, why are less than half of the sky vectors
  best reconstructed by PCA when for sky PCA has a
  mean reconstruction error less than 1/4 that of
  NMF? Mistakes?

13
NMFPCA Experiments

• During training, we learned whether NMF or PCA
  worked best for each class
• Project a query to a class using only the method
  that works best for that class
• Result 2.3 improvement in the recognition rate
  over NMF alone (PCA 5.8), but is this
  significant at 60?

14
Hierarchy Experiments

• At level k of the hierarchy, project the query
  onto each original class NMF or PCA subspace
• But, to choose the direction to descend the
  hierarchy, we only care about the level k
  super-class containing the matching class
• Furthermore, for each class the choice of PCA vs.
  NMF can be independently set at each level of the
  hierarchy

15
Hierarchy Results

• 2 improvement in recognition rate
• I really suspect that this is insignificant, and
  resulting only from the additional degrees of
  freedom
• They employ various additional neighborhood-based
  hacks to increase their accuracy further, but I
  dont see any relevance to NMF specifically

16
Need for a better metric

• Want to classify based on nearest neighbor,
  rather than reprojection error
• Unfortunately, NMF generates a nonorthonormal
  basis, and so the relative distance to a base
  depends on the uniqueness of that base
• Bases will share a lot of pixels in common areas

17
Earth Movers Distance (EMD)

• Defined as the minimal amount of work that must
  be performed to transform one feature
  distribution into the other
• A special case of the transportation problem
  from linear optimization
• Let Iset of suppliers, Jset of consumers,
  cijcost to ship from I to J, fijamount shipped
  from I to J
• Distance cost to make datasets equal

18
Earth Movers Distance (EMD)

• Based on finding a measure of correlation between
  bases to define its cost matrix
• The cost matrix weights the transition of one
  basis (bi) to another (bj)
• cij distangle(bi,bj) -( x y )/( x y
  )

19
EMD Transportation Problem

• fij quant.
  shipped from i?j
• Consumers
  dont ship
• Dont exceed
  demand
• Dont exceed
  supply
• Demand must equal supply for EMD to be a metric

20
EMD vs. Other Experiments

• Digit recognition from MNIST digit database
• 60,000 training images 10,000 for test
• Classify by NN and 5NN in the subspace
• Result EMD works best in low-dimensional
  subspaces, but in high-dimensional subspaces EMD
  does not work well
• More specificly, EMD works well when the bases
  contain some intersecting pixels

21
Occlusion Experiments

• Randomly occlude either 1 or 2 of the 4 quadrants
  of an image (25 and 50 occlusion)
• Why does distangle do so well?

Best subspace distance with occlusions Best subspace distance with occlusions Best subspace distance with occlusions
Low dim. High dim.
25 Occlusion NMFdistangle PCA sometimes better
50 Occlusion NMFdistangle OR EMD NMFdistangle
22
Demo

• NMF difficulties
• EMD experiments instead
• Demonstrate using existing code within the
  desired framework of a cost matrix
• Their code http//robotics.stanford.edu/rubner/
  emd/default.htm
• My code http//www.vialab.org/john/Pres9-code/

23
Conclusion

• NMF is a parts-based alternative to PCA
• NMF and PCA should be combined for
  minimum-reprojection-error classification
• For nearest-neighbor classification, NMF needs a
  better metric
• When the subspace dimensionality is chosen
  appropriately for good bases, NMFEMD or
  NMFdistangle have the highest recognition rates
