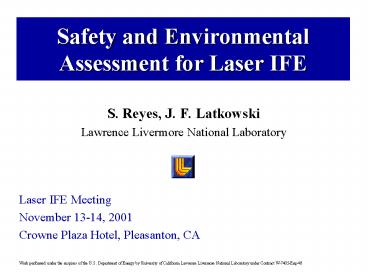

Safety and Environmental Assessment for Laser IFE

1
Safety and Environmental Assessment for Laser IFE

• S. Reyes, J. F. Latkowski
• Lawrence Livermore National Laboratory

Laser IFE Meeting November 13-14, 2001 Crowne
Plaza Hotel, Pleasanton, CA Work performed
under the auspices of the U. S. Department of
Energy by University of California Lawrence
Livermore National Laboratory under Contract
W-7405-Eng-48
2
LLNL is addressing critical issues for laser IFE
safety and environment

• Safety and environmental attractiveness is a key
  requirement for the success of laser IFE
• We are using the SOMBRERO laser driven conceptual
  design to perform safety and environmental
  analyses
• Design uses a low activation material (C/C
  composite) for chamber structures
• Xe gas atmosphere used to protect FW from target
  emissions

• Blanket consists of a moving bed of solid Li2O
  particles flowing in a He carrier gas through the
  chamber

3
We have recently performed analyses to address
key safety issues

• Oxidation of graphite chamber structures may be a
  concern in case of air ingress event (reaction
  rate seems to be significant even at T ? 1000 ºC)
• passive safety feature should be easy to
  implement (inert gas released from tank by
  rupture disk failure when a differential pressure
  is reached)
• protective coatings for C/C composites (Si-B-C
  coatings)
• alternative materials for FW and/or blanket
  structures
• The activation products for Xe are the main
  contributors to accident dose, possible solutions
  are
• removal of I and Cs by the chamber vacuum system
• alternative gas such as Kr
• Other than Xe, the most important contributor to
  accident dose is the HTO
• tritium trapped in FW/blanket may be greater than
  1 kg (need experimental data)
• simple modifications in the confinement building
  material would enhance HTO condensation on walls,
  reducing off-site dose

4
We are currently assessing waste management
options for laser IFE

• The importance of safe handing of radioactive
  waste for the protection of human health and the
  environment has long been recognized
• Traditionally, studies for IFE have used Waste
  Disposal Rating (WDR) as the preferred waste
  management index
• WDR lt 1 means that radioactive material qualifies
  for shallow land burial
• Even in the case of low activation materials,
  there are concerns about space limitations and
  negative public perception of large volumes of
  waste
• There is a growing international motivation to
  develop a fusion waste management system that
  maximizes the amount of fusion materials that can
  be unconditionally cleared or recycled

5
The concept of clearance allows for new waste
management options

• The IAEA has proposed clearance levels for
  radioactive waste below which regulatory control
  may be relinquished
• Clearance implies that radiation hazards
  associated are trivial so that the final
  destination of materials (recycle, reuse, surface
  disposal) is not known in advance
• We have implemented the calculation of Clearance
  Indexes (CIs) using current IAEA clearance
  limits
• The CI for a material containing n different
  nuclides is calculated as
• CI ? An/Ln
• where An is the activity due to the nuclide and
  Ln is the clearance limit for the nuclide
• CI 1 means it is possible to clear the material

6
We have calculated Clearance Indexes for the
SOMBRERO design

• We have upgraded the neutron activation code ACAB
  to include a new subroutine for calculation of
  CIs

• A detailed 3-D model of SOMBRERO has been used
  for neutron transport calculations
• We have used ACAB to simulate activation of
  materials after 30 years-operation
• Results have been obtained for WDRs and CIs for
  every plant component and for every isotope

SOMBRERO 3-D model for neutronics analysis
7
Results show that SOMBRERO meets criteria for
shallow land burial

• The first wall and blanket easily meet waste
  disposal rating criterion of WDR lt 1
• The concrete building also meets criterion,
  although it represents a volume of ? 105 m3
• Due to their exposure to line-of-sight neutrons,
  the neutron dumps have the highest WDR (? 0.5)
• However, the neutron dumps are unimportant from
  the waste volume perspective (they are 0.1 of
  the building shell volume)

8
We have obtained CIs for every component for up
to 100 years of cooling

• Neither component qualifies for clearance,
  however the concrete building has the lowest
  index
• Ability to clear the building would be highly
  beneficial because of the enormous waste volume
  that it represents

9
Calculations have been performed for alternative
building materials and thickness

• Concrete composition should avoid critical
  isotopes from waste point of view (long-lived
  nuclides)
• Increasing the thickness of the walls reduces
  clearance index but increases total plant cost

10
Laser IFE presents unique challenges to the
development of structural materials

• All materials in a fusion power plant are subject
  to SE considerations
• Ideally, a material would be cleared
  unconditionally following its lifetime in the
  power plant
• If clearing is not possible then recycling is the
  second option
• criterion for remote recycling is the contact
  dose rate (CDR), which must be lt 20 mSv/h
  following 50 years of radioactive decay
• hands-on recycling would require a CDR below 25
  mSv/h
• If a material is not eligible for recycling the
  next best option is disposal via shallow land
  burial, which is evaluated using the WDR
• Finally, a material must meet the accident safety
  criterion (dose lt 10 mSv) so that it does not
  result in an unacceptably high accident dose

11
We intend to provide SE guidance for target and
chamber designers

• We have performed analyses in order to provide
  guidance for selection of chamber and target
  materials from a SE perspective
• CDR and WDR results have been obtained for all
  naturally occurring elements from lithium to
  bismuth at the SOMBRERO chamber wall
• using the elemental values in the table, one can
  derive an approximate value for an actual
  material
• the table does not include results for accident
  doses given that these are accident- and
  material-dependent
• Target materials have been evaluated in a similar
  manner
• CDR criterion for dose is that recycling
  equipment could withstand 30 Mgy
• WDR is evaluated in the same way as for chamber
  wall
• accident dose is evaluated using a dose limit of
  5 mSv (the other 5 mSv is allocated to tritium
  releases) and release fraction calculated with
  MELCOR

12
Environmental indices resulting from neutron
activation of potential IFE chamber materials
Element CDR (Sv/hr) WDR Element CDR (Sv/hr) WDR Element CDR (Sv/hr) WDR Element CDR (Sv/hr) WDR
Li 0.00E00 0.00E00 V 8.23E-09 1.94E-09 Ru 6.80E-04 1.88E02 Tb 4.69E02 1.81E05
Be 0.00E00 2.95E-05 Cr 3.86E-11 1.43E-11 Rh 3.81E-01 1.01E02 Dy 3.69E-01 8.32E02
B 0.00E00 8.23E-04 Mn 3.20E-12 1.64E-13 Pd 4.82E-01 1.61E02 Ho 9.56E01 3.88E05
C 0.00E00 1.23E-03 Fe 4.00E-04 1.04E-05 Ag 1.20E02 3.52E04 Er 1.79E-01 7.54E02
N 0.00E00 6.43E00 Co 4.83E02 3.49E-01 Cd 4.13E-02 9.16E00 Tm 4.87E-02 2.14E02
O 1.68E-34 5.73E-03 Ni 8.25E00 5.35E-01 In 5.79E-06 2.09E-04 Yb 2.10E-04 2.10E-02
F 4.10E-25 6.04E-04 Cu 4.91E00 3.34E-01 Sn 1.13E-03 9.79E-02 Lu 1.16E-01 3.05E-06
Ne 8.33E-10 2.05E-03 Zn 5.21E-03 1.97E-02 Sb 2.36E-04 5.78E-03 Hf 3.65E-05 2.78E-01
Na 4.64E-03 4.87E-07 Ga 1.04E-10 1.24E-06 Te 3.02E-05 1.55E00 Ta 5.70E-07 4.20E-03
Mg 8.45E-07 6.01E-06 Ge 1.87E-11 8.34E-06 I 3.80E-07 7.21E-04 W 4.33E-07 4.21E-02
Al 1.26E-02 1.83E01 As 7.45E-19 4.12E-06 Xe 1.28E00 9.76E-02 Re 1.21E-04 1.28E01
Si 1.45E-06 1.87E-03 Se 4.06E-08 1.79E01 Cs 1.16E-01 3.35E-04 Os 1.42E-02 1.38E02
P 2.24E-07 3.92E-04 Br 7.62E-05 1.00E00 Ba 1.98E00 1.26E-02 Ir 7.70E00 7.71E04
S 2.78E-10 1.91E-02 Kr 5.39E-01 1.99E00 La 1.40E-03 5.29E-02 Pt 3.88E-04 3.76E00
Cl 3.24E-12 8.98E00 Rb 2.29E-02 3.43E-05 Ce 4.07E-04 8.16E-02 Au 5.32E-07 3.01E-03
Ar 3.07E-07 7.42E00 Sr 1.92E-03 8.05E-04 Pr 4.88E-08 5.32E-04 Hg 2.21E-06 8.78E-03
K 2.05E-05 4.93E00 Y 3.14E-06 8.99E-06 Nd 2.91E-02 1.66E-03 Tl 1.40E-08 1.70E-04
Ca 4.71E-05 2.55E-01 Zr 5.12E-04 1.13E00 Sm 3.19E01 2.78E-01 Pb 3.92E-05 4.55E-02
Sc 2.03E-03 5.24E-04 Nb 2.58E01 7.62E04 Eu 1.05E04 1.52E02 Bi 8.81E00 5.15E03
Ti 3.13E-04 6.22E-05 Mo 9.64E-02 5.80E03 Gd 1.66E00 4.80E02
13
Safety and environmental results for potential
target materials
Element Code Element Code Element Code Element Code
Li P V C Ru CW Tb CW
Be P Cr C Rh CW Dy W
Be P Mn C Pd CW Ho W
C P Fe C Ag CW Er CW
N W Co CA Cd CW Tm CW
O P Ni CWA In C Yb P
F P Cu C Sn P Lu C
Ne P Zn C Sb C Hf C
Na C Ga P Te CWA Ta C
Mg C Ge C I C W C
Al CW As C Xe C Re CW
Si P Se CW Cs C Os CW
P P Br CWA Ba C Ir CW
S P Kr W La P Pt W
Cl W Rb C Ce C Au C
Ar W Sr C Pr P Hg P
K W Y C Nd C Tl C
Ca W Zr C Sm CW Pb P
Sc C Nb CW Eu CWA Bi CW
Ti C Mo CW Gd W

• C failed contact dose rate criterion (dose lt
  30 MGy for 30 years, continuous exposure)
• W failed waste management criterion (WDR lt 1)
• A failed accident dose criterion (early dose lt
  5 mSv for 0.3 release)
• P passed all criteria

14
Conclusions (I)

• There are key safety issues for laser IFE
• Oxidation of chamber structures during accidents
• Activation of gas Xenon
• Tritium retention in FW and blanket
• Although all the components in SOMBRERO qualify
  for shallow land burial, this option is not very
  attractive given the enormous waste volumes
  involved
• Clearance of the confinement building would
  greatly reduce the total volume of waste to be
  buried, allowing for recycling or reusing of the
  material

15
Conclusions (II)

• We have generated SE results for all naturally
  occurring elements from lithium to bismuth to
  provide guidance to chamber and target designers
• For chamber structures one can derive an
  approximate value for an actual material using
  the elemental values and densities
• For target materials, the most limiting criterion
  is the CDR, however, the list can be increased
  either by
• increasing the limit through use of radiation
  hardened components or through periodic
  change-out of failed components
• decreasing the CDR value of each element by
  extending the radioactive decay time

16
Future work

• As part of LLNL chamber work, we will continue to
  address safety and environmental issues for
  laser IFE
• Alternative chamber concepts call for
  modifications in the baseline SOMBRERO design,
  which will have to be re-assessed from the safety
  and environment perspective
• As an example, magnetic deflection schemes for
  wall protection from ion damage will require new
  neutron activation calculations for the magnets
• Still much work to do on target fabrication
  facility safety
