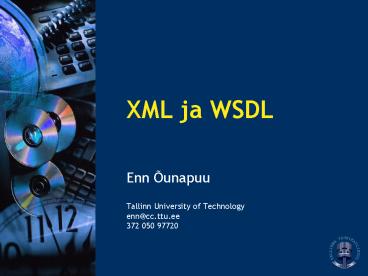

Title: XML ja WSDL


1
XML ja WSDL
  • Enn Õunapuu
  • Tallinn University of Technology
  • enn_at_cc.ttu.ee
  • 372 050 97720

2
Sisu
  • XML standard
  • XML documents
  • XML DOM
  • XML document views. CSS,XSL
  • WSDL

3
Global Virtual Marketplace
  • The Global Virtual Market is millions of
    consumers, companies and value added services,
    applications for healthcare, design and
    manufacturing, training and education, retailing
    and other key vertical market segments. As with
    the Internet itself, the virtual marketplace is
    the collective product of many individuals and
    organizations that cooperate to build it and
    compete on the products and services sold in it.
    The result is an entrepreneurial explosion of
    applications and services, building on and adding
    value to each other.

4
XML
  • WWW.w3.org based standard.
  • Fixes the structure of XML document
  • Repository the definitions of documents
  • ebXML, RosettaNet, Biztalk

5
Mis on XML?
  • XML is the Extensible Markup Language. It is
    designed to improve the functionality of the Web
    by providing more flexible and adaptable
    information identification.
  • It is called extensible because it is not a fixed
    format like HTML (a single, predefined markup
    language). Instead, XML is actually a
    metalanguage' a language for describing other
    languageswhich lets you design your own
    customized markup languages for limitless
    different types of documents. XML can do this
    because it's written in SGML, the international
    standard metalanguage for text markup systems
    (ISO 8879).

6
XML example
  • HTML text
  • Te võiksite vaadata Mark Wilson raamatut XML and
    the Internet for Visual Basic 6 Manningsi
    kodulehel. Vaadake autori publikatsioonide
    jaotist author online section. Et saada kontakti
    teiste Visual Basic huvilistega minge
    http//www.vbxml.com
  • XML text
  • ltreview subject-type"book"gt Te võiksite vaadata
    ltAUTHORgtMark Wilsonlt/AUTHORgt raamatut
    ltBOOK_NAMEgtXML and the Internet for Visual Basic
    6lt/BOOK_NAMEgt ltPUBLISHERgtManningsilt/PUBLISHERgt
    kodulehel. Vaadake autori publikatsioonide
    jaotist ltLINK_AREAgt author online
    sectionlt/LINK_AREAgt. Et saada kontakti teiste
    ltUSER_TOPICgtVisual Basic lt/USER_TOPICgt
    huvilistegaltBOOK_TOPICgtXMLlt/BOOK_TOPICgt , minge
    ltURLgthttp//www.vbxml.comlt/URLgt lt/review
    subject-type"book"gt.

7
DTD
XML Schema
XML Data Types
XML
XSL
CSS
Application
XPL
XLL
HTML
XML
Resources
8
Xml ülevaade
www.w3.org/xml SGML näide ltEMailgt ltsendergt
ltpersongt ltfirstnamegt Karen
lt/firstnamegt ltlastnamegt Lemone
lt/lastnamegt lt/persongt ltreceivergt
ltpersongt ltdistributionListgt
cs525_at_cs lt/distributionListgt lt/persongt
lt/receivergt ltcontentsgt Don't you
agree this is really ugly? lt/contentsgt lt/EMailgt
9
DTD
lt!ELEMENT note (to,from,heading,body)gt lt!ELEMENT
to (PCDATA)gt lt!ELEMENT from (PCDATA)gt
lt!ELEMENT heading (PCDATA)gt lt!ELEMENT body
(PCDATA)gt
10
XML SCHEMA
  • defines elements that can appear in a document
  • defines attributes that can appear in a document
  • defines which elements are child elements
  • defines the order of child elements
  • defines the number of child elements
  • defines whether an element is empty or can
    include text
  • defines data types for elements and attributes
  • defines default and fixed values for elements and
    attributes

11
XML SCHEMA vs DTD
  • XML Schemas are extensible to future additions
  • XML Schemas are richer and more useful than DTDs
  • XML Schemas are written in XML
  • XML Schemas support data types
  • XML Schemas support namespaces

12
XML schema elements
  • An XML Schema
  • defines elements that can appear in a document
  • defines attributes that can appear in a document
  • defines which elements are child elements
  • defines the order of child elements
  • defines the number of child elements
  • defines whether an element is empty or can
    include text
  • defines data types for elements and attributes
  • defines default and fixed values for elements and
    attributes

13
Well-formed xml document
  • A well-formed XML document is a document that
    conforms to the XML syntax rules
  • must begin with the XML declaration
  • must have one unique root element
  • all start tags must match end-tags
  • XML tags are case sensitive
  • all elements must be closed
  • all elements must be properly nested
  • all attribute values must be quoted
  • XML entities must be used for special characters

14
Simple XML schema
  • lt?xml version"1.0"?gt ltxsschema
    xmlnsxs"http//www.w3.org/2001/XMLSchema"
    targetNamespace"http//www.w3schools.com"
    xmlns"http//www.w3schools.com"
    elementFormDefault"qualified"gt
  • ltxselement name"note"gt
  • ltxscomplexTypegt
  • ltxssequencegt
  • ltxselement name"to" type"xsstring"/gt
  • ltxselement name"from"
    type"xsstring"/gt
  • ltxselement name"heading"
    type"xsstring"/gt
  • ltxselement name"body"
    type"xsstring"/gt
  • lt/xssequencegt
  • lt/xscomplexTypegt
  • lt/xselementgt
  • lt/xsschemagt

15
A Reference to an XML Schema
  • lt?xml version"1.0"?gtltnote xmlns"http//www.w3sch
    ools.com" xmlnsxsi"http//www.w3.org/2001/XMLSch
    ema-instance" xsischemaLocation"http//www.w3sch
    ools.com note.xsd"gt
  • lttogtTovelt/togt
  • ltfromgtJanilt/fromgt
  • ltheadinggtReminderlt/headinggt
  • ltbodygtDon't forget me this weekend!lt/bodygt
  • lt/notegt

16
Schema
  • lt?xml version"1.0"?gt
  • ltxsschema xmlnsxs"http//www.w3.org/2001/XMLS
    chema" targetNamespace"http//www.w3schools.com"
    xmlns"http//www.w3schools.com"
    elementFormDefault"qualified"gt
  • ... ...
  • lt/xsschemagt

17
Simple element
  • ltxselement name"xxx" type"yyy"/gt
  • Example
  • ltxselement name"lastname" type"xsstring"/gt
  • ltxselement name"age" type"xsinteger"/gt
  • ltxselement name"dateborn" type"xsdate"/gt

18
Common XML Schema Data Types
  • xsstring
  • xsdecimal
  • xsinteger
  • xsboolean
  • xsdate
  • xstime
  • ltxselement name"color" type"xsstring"
    default"red"/gt

19
How to Define an Attribute
  • ltxsattribute name"xxx" type"yyy"/gt
  • ltxsattribute name"lang" type"xsstring"
    default"EN"/gt
  • ltxsattribute name"lang" type"xsstring"
    use"optional"/gt
  • ltxsattribute name"lang" type"xsstring"
    use"required"/gt

20
Restrictions on Values
  • ltxselement name"car"gt
  • ltxssimpleTypegt
  • ltxsrestriction base"xsstring"gt
    ltxsenumeration value"Audi"/gt ltxsenumeration
    value"Golf"/gt ltxsenumeration value"BMW"/gt
    lt/xsrestrictiongt
  • lt/xssimpleTypegt
  • lt/xselementgt

21
Complex Element
  • A complex element is an XML element that contains
    other elements and/or attributes.
  • There are four kinds of complex elements
  • empty elements
  • elements that contain only other elements
  • elements that contain only text
  • elements that contain both other elements and
    text
  • Note Each of these elements may contain
    attributes as well!

22
Complex element example
  • ltxselement name"employee"gt ltxscomplexTypegt
  • ltxssequencegt
  • ltxselement name"firstname"
    type"xsstring"/gt
  • ltxselement name"lastname"
    type"xsstring"/gt
  • lt/xssequencegt
  • lt/xscomplexTypegt
  • lt/xselementgt

23
Cardinality
  • ltxselement name"person"gt
  • ltxscomplexTypegt
  • ltxssequencegt
  • ltxselement name"full_name"
    type"xsstring"/gt ltxselement name"child_name"
    type"xsstring" maxOccurs"10" minOccurs"0"/gt
  • lt/xssequencegt
  • lt/xscomplexTypegt
  • lt/xselementgt

24
Attribute groups
  • ltxsattributeGroup name"personattrgroup"gt
    ltxsattribute name"firstname" type"xsstring"/gt
    ltxsattribute name"lastname" type"xsstring"/gt
    ltxsattribute name"birthday" type"xsdate"/gt
    lt/xsattributeGroupgt
  • ltxselement name"person"gt
  • ltxscomplexTypegt
  • ltxsattributeGroup ref"personattrgroup"/gt
    lt/xscomplexTypegt
  • lt/xselementgt

25
XML Schema example
  • http//www.w3.org/TR/2001/REC-xmlschema-0-20010502
    /po.xml

26
DOM
The Document Object Model is a platform- and
language-neutral interface that will allow
programs and scripts to dynamically access and
update the content, structure and style of
documents. The document can be further processed
and the results of that processing can be
incorporated back into the presented page. This
is an overview of DOM-related materials here at
W3C and around the web.
27
(No Transcript)
28
XPATH
lt?xml version"1.0" encoding"ISO-8859-1"?gt
ltcataloggt ltcd country"USA"gt lttitlegtEmpire
Burlesquelt/titlegt ltartistgtBob Dylanlt/artistgt
ltpricegt10.90lt/pricegt lt/cdgt ltcd country"UK"gt
lttitlegtHide your heartlt/titlegt ltartistgtBonnie
Tylerlt/artistgt ltpricegt9.90lt/pricegt lt/cdgt ltcd
country"USA"gt lttitlegtGreatest Hitslt/titlegt
ltartistgtDolly Partonlt/artistgt ltpricegt9.90lt/pricegt
lt/cdgt lt/cataloggt /catalog /catalog/cdpricegt10.80

29
Web Services
Java ja ASP SOAP Web rakendus
30
SOAP Request Näide
ltSOAP-Envelope xmlnsSOAP-ENVhttp//schemas.xmlso
ap.org/soap/envelopegt ltSOAP-Bodygt ltmGetAddress
xmlnsmhttp//example.org/GetAddressgt
ltparametersgt
ltparam0gtStevelt/param0gt
ltparam1gtWattlt/param1gt lt/parametersgt
lt/mGetAddressgt lt/SOAP-Bodygt lt/SOAP-Envelopegt
31
The SOAP Response Example
ltSOAP-Envelope xmlnsSOAP-ENVhttp//schemas.xmlso
ap.org/soap/envelopegt ltSOAP-Bodygt
ltmGetAddress xmlnsmhttp//example.org/GetAddres
sgt ltresultsgt
ltresult0gt12th Floor, Ali Reza Towers, Medinah Rd,
Jeddah, KSA lt/result0gt
lt/resultsgt lt/mGetAddressgt lt/SOAP-Bodygt lt/
SOAP-Envelopegt
32
WSDL
  • Abstract Definitions
  • TypesMachine- and language-independent type
    definitions.
  • MessagesContains function parameters (inputs
    separate from outputs) or document descriptions.
  • PortTypesRefers to message definitions in
    Messages section to describe function signatures
    (operation name, input parameters, output
    pameters).
  • Concrete Descriptions
  • Bindings Specifies binding(s) of each operation
    in the PortTypes section.
  • Services Specifies port address(es) of each
    binding.

33
(No Transcript)
34
Message
  • ltmessage namequoteRequestgt
  • ltpart namebody elementquote-schema-nssto
    ckName/gt
  • lt/messagegt
  • ltmessage namequoteResponsegt
  • ltpart namebody elementquote-schema-nssto
    ckPrice/gt
  • lt/messagegt

35
Porttype
  • ltportType namequotePortTypegt
  • ltoperation namegetQuotegt
  • ltinput messagequote-wsdl-nsquoteReques
    t/gt
  • ltoutput messagequote-wsdl-nsquoteResponse/gt
  • lt/operationgt lt/portTypegt

36
Binding
  • ltbinding namequoteBinding typequote-wsdl-nsq
    uotePortTypegt
  • ltoperation namegetQuotegt
  • ltsoapoperation soapAction"http//example.
    com/stockQuoteAction"/gt ltinputgt
  • ltsoapbody partbody useliteral/gt
  • lt/inputgt
  • ltoutputgt
  • ltsoapbody partbody useliteral/gt
  • lt/outputgt
  • lt/operationgt
  • lt/bindinggt

37
Service
  • ltservice namestockServicegt
  • ltport namestockPort bindingquote-wsdl-ns
    quoteBindinggt ltsoapaddress
    locationhttp//example.com/quotes/'/gt lt/portgt
  • lt/servicegt

38
Questions?
Write a Comment
User Comments (0)
About PowerShow.com
