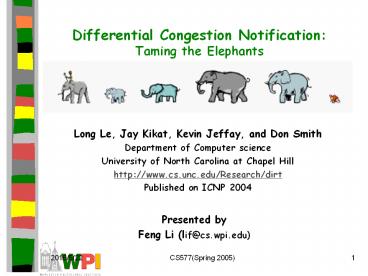

Differential Congestion Notification: Taming the Elephants

1
Differential Congestion NotificationTaming the
Elephants
Long Le, Jay Kikat, Kevin Jeffay, and Don
Smith Department of Computer science University
of North Carolina at Chapel Hill http//www.cs.unc
.edu/Research/dirt Published on ICNP 2004

• Presented by
• Feng Li (lif_at_cs.wpi.edu)

2
Outline

• Background Router-based congestion control
• Active Queue Management (AQM)
• Explicit Congestion Notification (ECN)
• Do AQM schemes works?
• The case for differential congestion notification
  (DCN).
• A DCN prototype and its empirical evaluation.

3
Router-Based Congestion ControlThe Case against
drop-tail queuing (FIFO)

• Large (full) queues in routers are bad things.
• End to end latency is dominated by the length of
  queues at switches in network.
• Allowing Queues to overflow is a bad thing
• Connections that transmit at high rates can
  starve connections that transmit at low rates.
• Causes connections to synchronize their response
  to congestion and become unnecessarily busty.

4
Router-Based Congestion ControlActive Queue
Management (AQM)

• Key concept Drop packets before a queue
  overflows to signal incipient congestion to
  end-system.
• Basic mechanism When the queue length exceeds
  threshold, packets are probabilistically dropped
• Random Early Detection (RED) AQM
• Always en-queue if queue length less than a
  low-water mark
• Always drop if queue length is greater than a
  high-water mark
• probabilistically drop/en-queue if queue length
  is in between these two marks.

5
The Proportional Integral (PI)Controller

• PI attempts to maintain an explicit target queue
  length.
• PI Samples instantaneous queue length at fixed
  intervals and computes a mark/drop probability at
  Kth sample
• p(KT)a x (q(kT) qref ) b x (q ((k-1) T) q
  ref) p ((k-1) T)
• a, b, and T depends on link capacity, maximum RTT
  and the number of flows at a router.

6
Explicit congestion Notification Overview

• Set a bit in a packets header and forward
  towards the ultimate destination
• A receiver recognizes the marked packet and sets
  a corresponding bit in the next outgoing ACK
• When a sender receives an ACK with ECN it
  invokes a response similar to that for packet loss

7
Put the piece together AQMECN

• If a RED Router detects congestion it will mark
  arriving packets.
• The router will then forward marked packets from
  ECN-Capable senders.
• and drop marked packets from all other senders.

8
Do AQM Schemes work? Evaluation of AFER, PI and
REM

• The effects of Active Queue Management on Web
  Performance SIGCOMM 2003. When user response
  times are important performance metrics
• Without ECN, PI results in a modest performance
  improvement over drop tail and other AQM schemes.
• With ECN, both PI and REM provide significant
  performance improvement over drop-tail.

9
Evaluation of AQM, PI and REMExperimental
results 98 Load. From SIGCOMM 2003
10
Outline

• Background Router-based congestion control
• Active Queue Management (AQM)
• Explicit Congestion Notification (ECN)
• Do AQM schemes works?
• The case for differential congestion notification
  (DCN).
• A DCN prototype and its empirical evaluation.

11
Discussion of ECNDisadvantages

• Claim
• ECN deployment requires the participation of both
  router and end-systems. That raises cost and
  complexity
• Firewalls and network address translators
  intentionally or unintentionally drop all ECN
  packets or clear ECN bits. Only 1.1 websites
  correctly deployed ECN in 2003.
• Conclusion
• AQM would be more appealing without ECN.

12
The Structure of Web TrafficDistribution of
Response sizes (figure 1)
13
The Structure of Web TrafficPercent of Bytes
transferred by response sizes (figure 2)
14
DiscussionDo AQM designs inherently require ECN?

• Claim Differentiating between flows at the
  flow-level is important.
• ECN is required for good AQM performance because
  it eliminates the need for short flows (a
  significant fraction of their) data
• With ECN, short flows (mostly) no longer
  retransmit data
• But their performance is still hurt by AQM
• Why signal short flows at all?
• They have no real transmission rate to adapt
• Hence signaling these flows provides no benefit
  to the network and only hurts end-system
  performance

15
Outline

• Background Router-based congestion control
• Active Queue Management (AQM)
• Explicit Congestion Notification (ECN)
• Do AQM schemes works?
• The case for differential congestion notification
  (DCN).
• A DCN prototype and its empirical evaluation.

16
Realizing Differential NotificationIssues and
approach

• How to identify packets belonging to long-lived,
  high bandwidth flows with minimal state?
• Adopt the Estan Varghese flow filtering scheme
  developed for traffic accounting SIGCOMM 2002
• How to determine when to signal congestion (by
  Dropping packets)
• Use a PI-Like scheme INFOCOM 2001
• Differential treatment of Flows an old idea.
• FRED, CHOKe, AFD, RIO-PS
• SRED, SFB, RED-PD

17
Classifying FlowsA score-boarding Approach

• Use two hash tables (Hash keys are formed by IP
  addressing 4-tuple plus protocol number.
• A suspect flow table HB (High Band Width) and
• A per-flow packet count table SB (score board)
• Arriving packets from flows in HB are subject to
  dropping
• Arriving packets from other flows are inserted
  into SB and tested to determine if the flow
  should be considered high bandwidth.
• Using a simple packet count threshold for this
  determination.

18
Classifying FlowsA score-boarding
approach(figure3)
19
An Alternate ApproachAFD Pan et al. 2003

• Approximate Fairness through Differential
  Dropping
• Sample 1 out of every s packets and store in a
  shadow buffer of size b
• Estimate Flows rate as rest R (matches/b)
• Drop packet with probability p 1- rfair/rrest

20
Another Alternate ApproachRIO-PSGuo and Matta
2001

• Edge Routers maintain per-flow counters and
  classify flows into two classes short or
  long
• Core Routers
• Use different RED engines for short and long
  flows
• Use different RED parameter settings to give
  preferential treatment to short flows

21
Another Alternate ApproachRIO-PS Guo and Matta
2001

• Edge Routers maintain per-flow counters and
  classify flows into two classes short or
  long
• Core Routers
• Use different RED engines for short and long
  flows
• Use different RED parameter settings to give
  preferential treatment to short flows

22
Outline

• Background Router-based congestion control
• Active Queue Management (AQM)
• Explicit Congestion Notification (ECN)
• Do AQM schemes works?
• The case for differential congestion notification
  (DCN).
• A DCN prototype and its empirical evaluation.

23
Evaluation MethodologySIGCOMM2003

• Evaluate AQM schemes through live simulation
• Evaluate the browsing behavior of a large
  population users surfing the web in a laboratory
  test bed.
• Construct a physical network emulating a
  congested peering link between two ISPs
• Generate synthetic HTTP requests and responses
  but transmit over real TCP/IP stacks, network
  links, and switches
• Also perform experiments with mix of TCP
  applications.

24
Experimental MethodologyHTTP traffic generation

• Synthetic web traffic generated using the UNC
  HTTP model SIGMETRICS 2001, MASCOTS 2003
• Primary random variables

25
Experimental MethodologyTestbed emulating an ISP
peering link

• AQM schemes implemented in FreeBSD routers using
  ALTQ kernel extensions
• End-systems either a traffic generation client or
  server
• use dummynet to provide to provide per-flow
  propagation delays
• Two-way traffic generated, equal load generated
  in each direction

26
Experimental Methodology1 Gbps Network
calibration experiments

• Experiments run on a congested 100 Mbps link
• Primary simulation parameter Number of simulated
  browsing users browsing users
• Run calibration experiments on an un-congested 1
  Gbps link to relate simulated user populations to
  average link utilization
• (And to ensure offered load is linear in the
  number of simulated users -- i.e., that
  end-systems are not a bottleneck)

27
Experimental Methodology1 Gbps Network
Calibration Experiments
28
DCN EvaluationExperimental Plan

• Run experiments with DCN, AFD, RIO-PS, and PI at
  different offered loads
• PI always uses ECN, test AFD and RIO-PS with and
  without ECN
• DCN always signals congestion via drops
• Compare DCN results against
• The better of PI, AFD, and RIO-PS (the
  performance to beat)
• The un-congested network (the performance to
  approximate)

29
Experiment Results 90 LoadDCN Performance
(figure 5)
30
Experimental Results 98 LoadDCN Performance
(figure 5)
31
Experimental Result 90 LoadDCN Performace
(figure 9)
32
Experiment Results 98 LoadComparison of all
schemes(figure-11)
33
DCN EvaluationSummary

• DCN uses a simple, tunable two-tired
  classification scheme with
• Tunable storage overhead
• O(1) Complexity with High Probability
• DCN, without ECN, meets or exceeds the
  performance of the best performing AQM designs
  with ECN
• The performance of 99 flows is improved
• More small and medium flows complete per unit
  time.
• On heavily congested networks, DCN closely
  approximates the performance achieved on an
  un-congested network

34
Summary and Conclusions

• For offered loads of 90 or greater there is
  benefit to control theoretic AQM but only when
  used with ECN
• bandwidth Heuristically signaling only
  long-lived, high-bandwidth flows improves the
  performance of most flows and eliminates the
  requirement for ECN
• One can operate links carrying HTTP traffic at
  near saturation levels with performance
  approaching that achieved on an un-congested
  network
• Identification of high-bandwidth flows can be
  performed with tunable overhead and effectively
  complexity

35
Experimental Results 90 LoadComparison of all
schemes (CCDF)
36
Experimental Results 98 LoadComparison of all
schemes (CCDF)
37
Experimental Results With General TCP
TrafficComparison of all schemes (Figure 19)
38
Experimental Results With General TCP
TrafficComparison of all schemes CCDF (Figure 20)
39
Reference

• Authors slides in ICNP 2004
• http//www.cs.unc.edu/jeffay/talks/ICNP-04-slides
  .pdf
• Authors slides for SIGCOMM2003
• http//www.cs.unc.edu/jeffay/talks/Penn-DCN-ECN-S
  tudy-04.pdf
• Research Group Websites
• http//www.cs.unc.edu/Research/dirt
