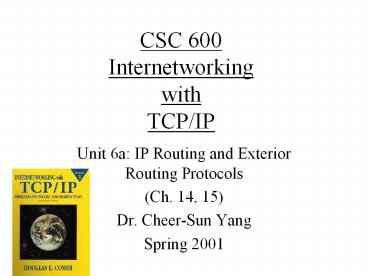

CSC 600 Internetworking with TCP/IP

1
CSC 600Internetworking withTCP/IP

• Unit 6a IP Routing and Exterior Routing
  Protocols
• (Ch. 14, 15)
• Dr. Cheer-Sun Yang
• Spring 2001

2
Routing Protocols

• Cores, Peers, and Algorithms Distance
  Vector(Bellman-Ford), Link State(Dijkstra),
  Gateway-to-Gateway Protocol(GGP),
• Interior within an autonomous system
• Exterior between two autonomous systems
• Exterior Routing Protocols Border Gateway
  Protocol(BGP)
• Interior Routing Protocols RIP(distance vector),
  OSPF(link state).

3
Routing Protocols

• Routing Information
• About topology and delays in the internet
• Routing Algorithm
• Used to make routing decisions based on
  information

4
The Evolution of Internet Architecture

• Core system many non-core routers are conneced
  to a set of core routers.
• Peer-to-peer many routers are connected to a
  backbone.
• Architectural many autonomous systems are
  connected to their own gateways and gateways are
  connected as peers.

5
Original Internet Architecture and Cores

• A small number of routers kept complete
  information about all possible destinations and a
  large set of routers only kept partial
  information.
• The routing table in a given router contains
  partial information about possible destinations.
• Routing that uses partial information allows
  sites autonomy in making local routing changes.

6
(No Transcript)
7
Core vs. Noncore

• Core routers are controlled by the Internet
  Network Operations Center (INOC).
• Noncore routers are controlled by individual
  groups.
• This architecture can introduce the possibility
  of inconsistencies that may make some
  destinations unreachable from some sources unless
  the chain of all default routers (core) reaches
  every router in a giant cycle as shown in next
  slide.

8
(No Transcript)
9
(No Transcript)
10
Core System is Impractical

• When the NSFNET became the major part of the
  Internet, the core architecture became
  impractical for the following reasons
• The Internet outgrew a single, centrally managed
  long-haul backbone.
• Not every site could have a core router connected
  to the backbone.
• Because core routers all interacted to ensure
  consistent routing information, the core
  architecture did not scale to arbitrary size.
• The peer-to-peer architecture is formed.

11
(No Transcript)
12
Routing Becomes Complicated

• For example, how can a datagram be routed from
  host 3 to host 2?
• Which path should be taken?
• How can routing be optimized?
• How can loops be eliminated?

13
(No Transcript)
14
Summary of Core System Architecture

• A core routing architecture assumes a centralized
  set of routers which serves as the repository of
  information about all possible destinations in an
  internet.
• Core systems work best for internets that have a
  single, centrally managed backbone.
• Expanding the topology to multiple backbones
  makes routing complex attempting to partition
  the core architecture so that all routers use
  default routers introduces potential routing
  loops.

15
Automatic Propagation of Routing Information
The Internet is not static!
16
Distance Vector (Bellman-Ford) Routing
17
(No Transcript)
18
(No Transcript)
19
Gateway-to-Gateway Protocol (GGP)

• Sometimes known as exterior routing
• protocols.
• It is a true distance-vector protocol.
• It measures distance in router hops.

20
Autonomous Systems

• Although it is desirable for routers to exchange
  routing information, it is impractical for all
  routers on an arbitrarily large internet to
  participate in a single routing update protocol.
• The number of routers that participate in a
  single routing protocol must be limited.

21
Autonomous Systems

• This idea works fine. However, it implies that
  some routers will be outside the group.
• If a router outside of an AS uses a member of
  the group as the default route, routing will be
  suboptimal.
• R1 and R2 are in one AS, while R3 is not.
• If R3 sends datagrams via R1 for sending
  datagrams to R2, it is not optimal.

22
(No Transcript)
23
Hidden Networks
24
Architectural ApproachAutonomous Systems (AS)

• Group of routers
• Exchange information
• Common routing protocol
• Set of routers and networks managed by single
  organization - an autonomous system
• The Internet is organized into a collection of
  Ass, each of which is normally administered by a
  single entity. A corporation or university campus
  often defines an AS. The NSF backbone forms an AS.

25
(No Transcript)
26
Architectural ApproachAutonomous Systems (AS)

• Each Autonomous system can select its own routing
  protocol to communicate between the routers in
  that AS. This is called an interior gateway
  protocol (IGP) or intradomain routing protocol.
• Separate routing protocols called exterior
  gateway protocol (EGS) or interdomain routing
  protocol are used between the routers in
  different autonomous systems.

27
Interior Routing Protocols

• Routing Information Protocol (RIP) a distance
  vector (Bellman-Ford)
• Open Shortest Path First Protocol (OSPF) a link
  state algorithm (Dijkstras algorithm)

28
Exterior Routing Protocol

• Border Gateway Protocol (BGP)

29
Application of IRP and ERP
30
Border Gateway Protocol (BGP)

• Inter-autonomous system communication
• Coordination among multiple BGP gateways
• Propagation of reachability information
• Next-hop paradigm
• Policy support
• Reliable transport
• Incremental updates
• Support for classless addressing
• Route aggregation
• Authentication

31
Border Gateway Protocol (BGP)

• For use with TCP/IP internets
• Preferred EGP of the Internet
• Messages types sent over TCP connections
• Open
• Update advertise or withdraw routes
• Keep alive actively test peer connectivity
• Notification response to an incorrect message
• Procedures
• Neighbor acquisition
• Neighbor reachability
• Network reachability

32
(No Transcript)
33
(No Transcript)
34
BGP Messages
35
(No Transcript)
36
BGP Procedure

• Open TCP connection
• Send Open message
• Includes proposed hold time
• Receiver selects minimum of its hold time and
  that sent
• Max time between Keep alive and/or update
  messages

37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Other Message Types

• Keep Alive
• To tell other routers that this router is still
  here
• Update
• Info about single routes through internet
• List of routes being withdrawn
• Includes path info
• Origin (IGP or EGP)
• AS_Path (list of AS traversed)
• Next_hop (IP address of boarder router)
• Multi_Exit_Disc (Info about routers internal to
  AS)
• Local_pref (Inform other routers within AS)
• Atomic_Aggregate, Aggregator (Uses address tree
  structure to reduce amount of info needed)

43
Uses of AS_Path and Next_Hop

• AS_Path
• Enables routing policy
• Avoid a particular AS
• Security
• Performance
• Quality
• Number of AS crossed
• Next_Hop
• Only a few routers implement BGP
• Responsible for informing outside routers of
  routes to other networks in AS

44
(No Transcript)
45
The Key Restriction of EGP

• An exterior gateway protocol does not communicate
  or interpret distance metrices, even if metrics
  are available.

46
The Routing Arbiter System

• For an internet to operate correctly, routing
  information must be globally consistent.
• Individual protocols such as BGP does not
  guarantee global consistency.
• The RA system consists of a replicated
  authenticated database of reachability
  information.Each ISP designates one of the
  routers near a Network Access Point (NAP) to be a
  BGP border router.
• The designated router maintains a connection to
  the route server over which it uses BGP. BGP
  notification messages are exchanged.

47
BGP Routing Information Exchange

• Within AS, router builds topology picture using
  IGP
• Router issues Update message to other routers
  outside AS using BGP
• These routers exchange info with other routers in
  other AS
• Routers must then decide best routes

48
Notification Message

• Message header error
• Authentication and syntax
• Open message error
• Syntax and option not recognized
• Unacceptable hold time
• Update message error
• Syntax and validity errors
• Hold time expired
• Connection is closed
• Finite state machine error
• Cease
• Used to close a connection when there is no error

49
