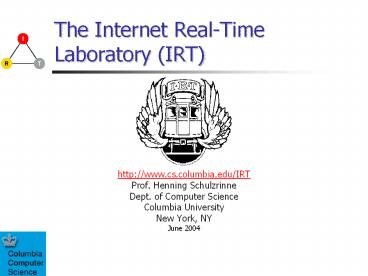

The Internet Real-Time Laboratory (IRT)

1
The Internet Real-Time Laboratory (IRT)

• http//www.cs.columbia.edu/IRT
• Prof. Henning Schulzrinne
• Dept. of Computer Science
• Columbia University
• New York, NY
• June 2004

2
Networking research at Columbia University

• Columbia Networking Research Center
• spans Electrical Engineering Computer Science
  Department
• 15 faculty one of the largest networking
  research groups in the US
• about 40 PhD students
• spanning optical networks and wireless channels
  to operating systems, security and applications
• theory (performance analysis) to systems
  (software, protocols)

Keren Bergman Andrew Campbell Ed Coffman Predrag
Jelenkovic Angelos Keromytis Aurel Lazar Nick
Maxemchuk Vishal Misra Jason Nieh Dan
Rubenstein Henning Schulzrinne Xiaodong
Wang Yechiam Yemini
3
Laboratory overview

• Dept. of Computer Science 33 faculty
• IRT lab
• 1 post-doc
• 12 PhD students
• includes part-time students working at IBM,
  Lucent, Telcordia
• 2 MS GRAs
• visitors (Ericsson, Fujitsu, Mitsubishi, Nokia,
  U. Coimbra, U. Rome, NTT, )
• China, Finland, Greece, India, Japan, Portugal,
  Spain, Sweden, US, Taiwan
• 15 MS and undergraduate project students

4
Laboratory support

• Equipment grants and student support

5
Overall IRT lab goals

• Reliable, flexible and programmable communication
  infrastructure for Internet-based collaboration
  applications
• Systematic evaluation by analysis and simulation
• Demonstrate capability via prototypes
• Contribute protocols to standardization
• Convert prototypes into products and open-source
  software
• Train students at all levels in current Internet
  research and engineering

6
IRT research topics

• Internet telephony and multimedia
• CINEMA VoIP/multimedia and collaboration system
• QoS measurements
• network application reliability
• APIs for SIP IM and presence systems
• ubiquitous computing using SIP
• emergency services (911)
• SIP security
• non-PKI-based assertions
• service creation languages
• CPL
• LESS

• Mobile and wireless systems
• 802.11 handoff acceleration
• 802.11 VoIP performance improvements
• personal, service and session mobility
• Peer-to-peer messaging ? 7DS
• Service and event discovery (GloServ)
• Generic signaling protocols (GIMPS) for QoS,
  NAT/FW,
• Autonomic computing
• service discovery ? mSLP
• automated server pooling ? DotSlash

7
Graduated PhD students

• Internet telephony services, GSM interoperation
  (J. Lennox)
• QoS and reliability measurements (W. Jiang)
• Federated CDNs (L. Amini)
• Pricing for QoS, LDAP performance (X. Wang)
• Multicast QoS fairness signaling (P. Mendes)
• Internet telephony topics (J. Rosenberg)
• Mobile peer-to-peer systems (M. Papadopouli)
• Scalable resource reservation (P. Pan)

8
Multimedia systems problems

• Old problems and approaches
• efficient codecs
• ubiquitous reachability
• audio/video synchronization
• network-layer mobility
• quality-of-service
• APIs and middleware

• New problems
• controlled reachability
• spam
• cell phone ringing in lecture
• service availability
• information privacy
• service personal mobility
• service creation by non-experts

9
CINEMA components
Cisco 7960
MySQL
rtspd
sipconf
user database
LDAP server
plug'n'sip
RTSP
conferencing
media
server
server
(MCU)
wireless
sipd
802.11b
RTSP
proxy/redirect server
unified
messaging
server
Pingtel
sipum
Cisco
Nortel
2600
Meridian
VoiceXML
PBX
server
T1
T1
SIP
sipvxml
PhoneJack interface
sipc
SIP-H.323
converter
sip-h323
10
PSTN interworking
11
SIP emergency calling
GPS
INVITE sipssos_at_
48 49' N 2 29' E
outbound proxy server
DHCP
48 49' N 2 29' E ? Paris fire department
12
SIP for ubiquitous computing

• Focus on inter-domain, scalable systems
• Components
• context-aware communications
• context-aware service and event discovery
• location-based services
• global-scale event notification
• service creation by end users
• terminal, personal, session and service mobility

13
Context-aware communication

• context the interrelated conditions in which
  something exists or occurs
• anything known about the participants in the
  (potential) communication relationship
• both at caller and callee

time CPL
capabilities caller preferences
location location-based call routing location events
activity/availability rich presence
sensor data (mood, bio) not yet, but similar in many aspects to location data
14
RPIDS rich presence data

• Basic IETF presence (CPIM) only gives you
• contact information (SIP, tel URI)
• priority
• open or closed
• Extend to much richer context information

watcher
everything
PA
PUA
watcher
"vague"
PUBLISH
watcher
NOTIFY
CPL
INVITE
15
Session mobility

• Walk into office, switch from cell phone to desk
  phone
• call transfer problem ? SIP REFER
• related problem split session across end devices
• e.g., wall display desk phone PC for
  collaborative application
• assume devices (or stand-ins) are SIP-enabled
• third-party call control

16
Service mobility user-adaptive device
configuration
all devices that are in the building RFC 3082?
SLP
802.11 signal strength ? location
device controller
REGISTER To 815cepsr Contact alice_at_cs
PA
HTTP
SUBSCRIBE to each room
tftp

1. discover room URI
2. REGISTER as contact for room URI

SIP
SUBSCRIBE to configuration for users currently in
rooms
room 815
17
How to find services?

• Two complementary developments
• smaller devices carried on user instead of
  stationary devices
• devices that can be time-shared
• large plasma displays
• projector
• hi-res cameras
• echo-canceling speaker systems
• wide-area network access
• Need to discover services in local environment
• SLP (Service Location Protocol) allows querying
  for services
• find all color displays with at least XGA
  resolution
• slp//example.com/SrvRqst?public?typeprinter
• SLP in multicast mode
• SLP in DA mode
• Need to discover services before getting to
  environment
• is there a camera in the meeting room?
• SLP extension find remote DA via DNS SRV

18
Service Location Protocol (SLP)

• extended to meshed SLP (mSLP) for reliability and
  scaling

SrvRqst
SA
UA
SA
SrvRply
SrvReg
DA
SrvReg
SrvRqst
DAAdvert
19
Location-based services

• Presence-based approach
• UA publishes location to presence agent (PA)
• becomes part of general user context
• other users (human and machines) subscribe to
  context
• call handling and direction
• location-based anycast (anybody in the room)
• location-based service directory
• Languages for location-based services
• building on experience with our XML-based service
  creation languages
• CPL for user-location services
• LESS for end system services

20
Location-based services in CINEMA

• Initial proof-of-concept implementation
• Integrate devices
• lava lamp via X10 controller ? set personalized
  light mood setting
• Pingtel phone ? add outgoing line to phone and
  register user
• painful needs to be done via HTTP POST request
• stereo ? change to audio CD track based on user
• Sense user presence and identity
• passive infrared (PIR) occupancy sensor
• magnetic swipe card
• ibutton
• BlueTooth equipped PDA
• IRRF badge (in progress)
• RFID (in progress)
• biometrics (future)

21
Location-based IM presence
22
Service creation

• Promise of faster service creation
• traditionally, only vendors (and sometimes
  carriers)
• learn from web models

programmer, carrier end user
network servers SIP servlets, sip-cgi CPL
end system VoiceXML VoiceXML (voice), LESS
23
Service creation environment for CPL and LESS
24
Ad-hoc wireless infrastructure
25
./ Rescue service for web servers experiencing
15 minutes of fame
Extend Apache mod_dots, dotsd, DNS, mSLP
State Transition
