EECE 573: Parallel Programming Using Clusters

1

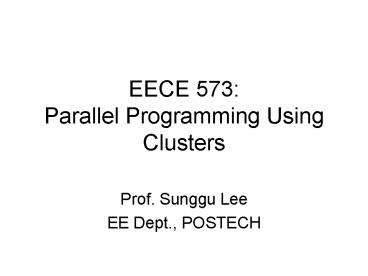

EECE 573Parallel Programming Using Clusters

• Prof. Sunggu Lee
• EE Dept., POSTECH

2
Course Introduction

• Objective to learn about PC clusters and
  parallel programming using PC clusters
• Grading 30 projects, 30 midterm, 30 final,
  10 class participation
• Home Page www.postech.ac.kr/class/ee770n
• Contact slee_at_postech.ac.kr,Office 2-415 Phone
  279-2236
• Ref. Some slides based on/extracted from
  www.csse.monash.edu.au/rajkumar/cluster/index.htm
  l

3
Course Syllabus I

• Introduction (12 weeks)
• Parallel Programming Models and Paradigms
• Parallel Programming Languages and Environments
• Basic Parallel Programming (45 weeks)
• Distributed Memory Parallel Programming
• Using UNIX Utilities
• MPI Programming
• PVM Programming
• Shared Memory Parallel Programming
• Active Objects
• Tuple Space Programming
• Debugging Parallelized Code

4
Course Syllabus II

• Parallel Programming Applications (45 weeks)
• Parallel Simulation
• Hardware System Simulation
• Parallel Genetic Algorithms
• Advanced Topics (23 weeks)
• High Availability (HA) Techniques
• Load Balancing
• Using Middleware
• Grid Computing
• Review

5
Ch. 1 Parallel Programming Models and Paradigms

• Parallel Computing Architectures
• Vector Parallel Computer
• Cray, IBM S390, NEC SX-6, etc.
• Traditional Parallel Architectures
• SMP (Symmetric Multiprocessor)
• Compaq 4-way server, etc.
• CC-NUMA (Cache Coherent Non-Uniform Memory
  Access)
• MPP (Massively Parallel Computer)
• Cray T3E, Intel Paragon, etc.
• Cluster
• Grid

6
Scalable Parallel Computer Architectures I Buyya
1999

• MPP
• A large parallel processing system with a
  shared-nothing architecture
• Consist of several hundred nodes with a
  high-speed interconnection network/switch
• Each node consists of a main memory one or more
  processors
• Runs a separate copy of the OS
• SMP
• 2-64 processors today
• Shared-everything architecture
• All processors share all the global resources
  available
• Single copy of the OS runs on these systems

7
Scalable Parallel Computer Architectures II
Buyya 1999

• CC-NUMA
• a scalable multiprocessor system having a
  cache-coherent nonuniform memory access
  architecture
• every processor has a global view of all of the
  memory
• Distributed systems
• considered conventional networks of independent
  computers
• have multiple system images as each node runs its
  own OS
• the individual machines could be combinations of
  MPPs, SMPs, clusters, individual computers
• Cluster
• a collection of workstations of PCs that are
  interconnected by a high-speed network
• works as an integrated collection of resources
• has a single system image (SSI) spanning all its
  nodes

8
Key Characteristics of ScalableParallel
Computers Buyya 1999
9
Cluster Computer and itsArchitecture Buyya 1999

• A cluster is a type of parallel or distributed
  processing system, which consists of a collection
  of interconnec-ted stand-alone computers
  cooperatively workingtogether as a single,
  integrated computing resource
• One node within a cluster
• a single or multiprocessor system with memory,
  I/O facilities, OS
• Generally 2 or more computers (nodes) connected
  together in a single cabinet, or physically
  separated connected via a LAN
• appears as a single system to users and
  applications
• provides a cost-effective way to gain features
  and benefits

10
Cluster ComputerArchitecture Buyya 1999
11
Prominent Components of Cluster Computers (I)
Buyya 1999

• Computing Node
• PC
• Workstation
• SMP (Symmetric Multiprocessor)
• MPP or Cluster ? Grid

12
Prominent Components of Cluster Computers (II)
Buyya 1999

• State-of-the-art Operating Systems
• Linux (Beowulf)
• Microsoft NT (Illinois HPVM)
• SUN Solaris (Berkeley NOW)
• IBM AIX (IBM SP2)
• HP UX (Illinois - PANDA)
• Mach (Microkernel based OS) (CMU)
• Cluster Operating Systems (Solaris MC, SCO
  Unixware, MOSIX (academic project)
• OS gluing layers (Berkeley Glunix)

13
Prominent Components of Cluster Computers (III)
Buyya 1999

• High Performance Networks/Switches
• Ethernet (10Mbps),
• Fast Ethernet (100Mbps),
• Gigabit Ethernet (1Gbps)
• 10G Ethernet (10Gbps)
• SCI (Dolphin - MPI- 12micro-sec latency)
• ATM (mostly used in WANs)
• Myrinet (1.2Gbps), Myrinet2000 (2.0Gbps)
• Digital (DEC, now Compaq) Memory Channel
• FDDI

14
Parallel Programming Environ-ments and Tools
Buyya 1999

• - Threads (PCs, SMPs, NOW..)
• POSIX Threads
• Java Threads
• MPI (Message Passing Interface an IEEE standard)
• Linux, NT, on many Supercomputers
• PVM (Parallel Virtual Machine)
• Software DSM (Distributed Shared Memory)
• can use sockets, shmem, etc. UNIX utilities
• Compilers
• C/C/Java
• Parallel programming with C (MIT Press book)
• RAD (rapid application development tools)
• GUI based tools for PP modeling
• Debuggers
• Performance Analysis Tools
• Visualization Tools

15
Code Parallelization

• Strategies for Developing Parallel Code
• Automatic Parallelization ? difficult
• Depends on use of parallelizing compiler
• Parallel Libraries
• Most commonly used method
• Can use normal Fortran, C, or C
• Use Dedicated Parallel Programming Language
• CC, Concurrent C, etc.

16
Code Granularity

• Refer to Table 1.1 (p. 11)
• Fine grain parallelism
• One instance of a loop or instruction block
• Threads (lightweight processes with shared
  memory)
• Medium grain parallelism
• A function within a program
• Thread or process
• Large grain parallelism
• Heavyweight process
• A single complete separately executable program

17
Parallel Programming Paradigms (Methods) I

• Task-Farming (or Master/Slave)
• Master process decomposes problem into small
  tasks (jobs, threads, processes)
• Master distributes tasks to slave processes (like
  workers on a farm)
• Slave processes concurrently execute tasks
• Master collects results from slaves
• Repeat above procedure if necessary
• Refer to Fig. 1.4 (p. 20)

18
Parallel Programming Paradigms (Methods) II

• Data Parallelism
• Large data space is partitioned
• Each partitioned data space is assigned to a
  separate process
• Each process executes on its assigned data
  partition
• Inter-process communication occurs in a mostly
  lock-step adjacent-node manner
• If necessary, all completed results can be
  collected into the final data set
• Refer to Fig. 1.5 (p. 21)

19
Parallel Programming Paradigms (Methods) III

• Pipelining
• Based on a functional decomposition of the
  problem to be solved
• Each process executes one of the functions
• Each process corresponds to one stage of a
  pipeline used to solve the problem
• All stages of pipeline (processes) can be
  executed in parallel
• Each stage of pipeline should require
  approximately equal amount of work
• Refer to Fig. 1.6 (p. 22)

20
Parallel Programming Paradigms (Methods) IV

• Divide and Conquer (Fig. 1.7, p. 22)
• Main problem is divided into gt 2 subproblems
• Each subproblem is solved by a separate process
  (in parallel with others)
• Subproblem can be a smaller instance of main
  problem ? recursive method
• Can sometimes be solved using the task-farming
  (master/slave) method

21
Parallel Programming Paradigms (Methods) V

• Speculative Parallelism
• System attempts lookahead execution with
  several possible execution paths
• If execution path is incorrect, its result is
  thrown away
• Separate processes execute candidate solution
  paths in parallel (concurrently)
• Useful in simulation or calculation problems
• Hybrid methods also possible

22
Programming Skeletons or Templates

• Skeleton or Template
• A piece of generic code which can be used for
  many different problems
• Just change or add a few small sections
• Like a form which can be filled in
• Base code is typically incomplete
• Requires parameters to be specified
• Aids in reusability and portability
