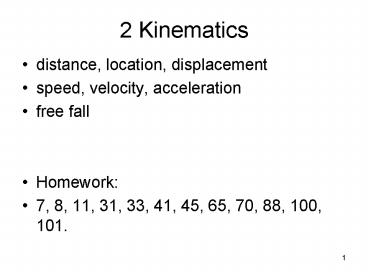

2 Kinematics

1
2 Kinematics

• distance, location, displacement
• speed, velocity, acceleration
• free fall
• Homework
• 7, 8, 11, 31, 33, 41, 45, 65, 70, 88, 100, 101.

2
Applications

• Destination times
• Design packing materials road barriers
• Airbag deployment speed
• Simulations (movies games)

3
Speed

• Speed rate of travel at a given moment of time
• Distance traveled total length of the curved
  path

4
Initial/Final Notation
Same rules apply for all variables
5
Delta Notation
called Displacement
6
Velocity (m/s)
When Dt is small, Dx/Dt is the instantaneous
velocity v.
7
Acceleration (m/s/s)
If Dt is small, Dv/Dt is called the instantaneous
acceleration and labeled a.
8
Ex. Car Acceleration
0
from 10m/s to 15m/s in a time of 2.0 seconds.
In this class we only use average acceleration
and often drop the avg notation from
acceleration.
9
Velocity Formula
10
Average Velocity with Uniform Acceleration

• Uniform Acceleration constant valued
  acceleration
• During uniform acceleration, average velocity is
  halfway between vo and v

11
Average Velocity Formula
12
Displacement Formula
13
V-squared Equation
14
Kinematic Equations with Constant Acceleration
0
15
Ex. Human Acceleration
In the 1988 Olympics, Carl Lewis reached the 20m
mark in 2.96s (Bolt 2.87s)
16
Ex V2 Equation
0
Approximate Stopping Accelerations in m/s/s Dry
Road 9 (anti-lock) 7 (skidding) Wet
Road 4 (anti-lock) 2 (skidding)
At 60mph 27m/s, what is the skid-to-stop
distance on a wet road?
17
Scalars Vectors

• Scalar size only
• e.g. speed, distance, time
• Vector magnitude and direction
• e.g. displacement, velocity, acceleration
• In one-dimension the direction is determined by
  the or sign.
• In two-dimensions, two numbers are required.

18
Motion Diagrams
0

• Are velocity-position diagrams
• More visual than a graph of x or v vs. time
• Arrow gives direction, length represents the
  speed (use a dot for zero speed)
• (net) force required to change velocity
• Example car speeding up to left

19
Free-Fall Acceleration

• a 9.8m/s/s in downward direction
• Ex. Speed of object dropped from rest after 1.0,
  2.0, 3.0 seconds
• v vo at
• v(1.0s) 0 (-9.8)(1.0) -9.8m/s
• v(2.0s) 0 (-9.8)(2.0) -19.6m/s
• v(3.0s) 0 (-9.8)(3.0) -29.4m/s
• /

20
Activities

• Moving Man phet animae
• Textbook type problems

21
Summary

• speed rate of travel
• average speed distance traveled/time.
• displacement change in position
• velocity rate position changes
• acceleration rate velocity changes
• kinematic equation set (p.46)
• free fall constant acceleration.
• graphs and slopes
