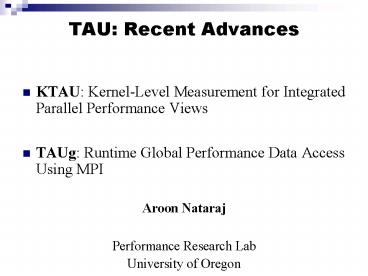

TAU Recent Advances

• KTAU Kernel-Level Measurement for Integrated
  Parallel Performance Views
• TAUg Runtime Global Performance Data Access
  Using MPI
• Aroon Nataraj
• Performance Research Lab
• University of Oregon

2
KTAU Outline

• Introduction
• Motivations
• Objectives
• Architecture / Implementation Choices
• Experimentation the performance views
• Perturbation Study
• ZeptoOS KTAU on Blue Gene / L
• Future work and directions
• Acknowledgements

3
Introduction ZeptoOS and TAU

• DOE OS/RTS for Extreme Scale Scientific
  Computation(Fastos)
• Conduct OS research to provide effective
  OS/Runtime for petascale systems
• ZeptoOS (under Fastos)
• Scalable components for petascale architectures
• Joint project Argonne National Lab and University
  of Oregon
• ANL Putting light-weight kernel (based on Linux)
  on BG/L and other platforms (XT3)
• University of Oregon
• Kernel performance monitoring, tuning
• KTAU
• Integration of TAU infrastructure in Linux Kernel
• Integration with ZeptoOS, installation on BG/L
• Port to 32-bit and 64-bit Linux platforms

4
KTAU Motivation

• Application Performance
• user-level execution performance
• OS-level operations performance
• Domains Time and Hardware Perf. Metrics
• PAPI (Performance Application Programming
  Interface)
• Exposes virtualized hardware counters
• TAU (Tuning and Analysis Utility)
• Measures a lot of the interesting user-level
  entities parallel application, MPI, libraries
• Time domain
• Uses PAPI to correlate counter information to
  source

5
KTAU Motivation

• As HPC systems continue to scale to larger
  processor counts
• Application performance more sensitive
• New OS factors become performance bottlenecks
  (E.g. Petrini03, Jones03, other works)
• Isolating these system-level issues as
  bottlenecks is non-trivial
• from Petrini03
• Comprehensive performance understanding
• Observation of all performance factors
• Relative contributions and interrelationship can
  we correlate?

6
KTAU Motivation continuedProgram - OS
Interactions

• Program OS Interactions - Direct vs. Indirect
  Entry Points
• Direct - Applications invoke the OS for certain
  services
• Syscalls (and internal OS routines called
  directly from syscalls)
• Indirect - OS takes actions without explicit
  invocation by application
• Preemptive Scheduling
• (HW) Interrupt handling
• OS-background activity (keeping track of time and
  timers, bottom-half handling, etc)
• Indirect interactions can occur at any OS entry
  (not just when entering through Syscalls)
• Direct Interactions easier to handle
• Synchronous with user-code and in process-context
• Indirect Interactions more difficult to handle
• Usually asynchronous and in interrupt-context
  Hard to measure and harder to correlate/integrate
  with app. Measurements
• But can argue Indirect interactions may be
  unrelated to task? Why measure?

7
KTAU Motivation continuedKernel-wide vs.
Process-centric

• Kernel-wide - Aggregate kernel activity of all
  active processes in system
• Understand overall OS behavior, identify and
  remove kernel hot spots.
• Cannot show what parts of app. spend time in OS
  and why
• Process-centric perspective - OS performance
  within context of a specific applications
  execution
• Virtualization and Mapping performance to process
• Interactions between programs, daemons, and
  system services
• Tune OS for specific workload or tune application
  to better conform to OS config.
• Expose real source of performance problems (in
  the OS or the application)

8
KTAU Motivation continuedExisting Approaches

• User-space Only measurement tools
• Many tools only work at user-level and cannot
  observe system-level performance influences
• Kernel-level Only measurement tools
• Most only provide the kernel-wide perspective
  lack proper mapping/virtualization
• Some provide process-centric views but cannot
  integrate OS and user-level measurements
• Combined or Integrated User/Kernel Measurement
  Tools
• A few powerful tools allow fine-grained
  measurement and correlation of kernel and
  user-level performance
• Typically these focus only on Direct OS
  interactions. Indirect interactions not merged.
• Using Combinations of above tools
• Without better integration, does not allow
  fine-grained correlation between OS and App.
• Many kernel tools do not explicitly recognize
  Parallel workloads (e.g. MPI ranks)
• Need an integrated approach to parallel perf.
  observation, analyses

9
KTAU High-Level Objectives

• Support low-overhead OS performance measurement
  at multiple levels of function and detail
• Provide both kernel-wide and process-centric
  perspectives of OS performance
• Merge user-level and kernel-level performance
  information across all program-OS interactions
• Provide online information and the ability to
  function without a daemon where possible
• Support both profiling and tracing for
  kernel-wide and process-centric views in parallel
  systems
• Leverage existing parallel performance analysis
  tools
• Support for observing, collecting and analyzing
  parallel data

10
KTAU Outline

• Introduction
• Motivations
• Objectives
• Architecture / Implementation Choices
• Experimentation the performance views
• Perturbation Study
• ZeptoOS KTAU on Blue Gene / L
• Future work and directions
• Acknowledgements

11
KTAU Architecture
12
KTAU Arch. / Impl. Choices

• Instrumentation
• Static Source instrumentation
• Macro Map-ID Map block of code and
  process-context to unique index (dense id-space)
  easy array lookup.
• Macro Start, Stop provide the mapping index and
  process-context is implicit
• Measurement
• Differentiate between local/self and
  inter-context access. HPC codes primarily use
  self.
• Store performance data in PCB (task_struct)
• Integrating Kernel/User Performance state
• Dont assume synchronous kernel-entry or
  process-context
• Have to use memory mapping between kernel and
  appl. State
• Pinning shared state in memory
• Kernel Call Groups program-OS interactions
  summary
• Analyses and Visualization Use TAU facilities

13
KTAU Controlled Experiments

• Controlled Experiments
• Exercise kernel in controlled fashion
• Check if KTAU produces the expected correct and
  meaningful views
• Test machines
• Neutron 4-CPU Intel P3 Xeon 550MHz, 1GB RAM,
  Linux 2.6.14.3(ktau)
• Neuronic 16-node 2-CPU Intel P4 Xeon 2.8GHz, 2GB
  RAM/node, Redhat Enterprise Linux 2.4(ktau)
• Benchmarks
• NPB LU application NPB
• Simulated computational fluid dynamics (CFD)
  application. A regular-sparse, block lower and
  upper triangular system solution.
• LMBENCH LMBENCH
• Suite of micro-benchmarks exercising Linux kernel
• A few others not shown (e.g. SKAMPI)

14
KTAU Controlled Examples continued
Profiling
15
KTAU Controlled Examples continuedTracing
Fine-grained Tracing Shows detail inside
interrupts and bottom halves
Using VAMPIR Trace Visualization VAMPIR
16
KTAU Larger-Scale Runs

• Run parallel benchmarks on larger-scale (128
  dual-cpu nodes)
• Identify (and remove) system-level performance
  issues
• Understand perturbation overheads introduced by
  KTAU
• NPB benchmark LU Application NPB
• Simulated computational fluid dynamics (CFD)
  application. A regular-sparse, block lower and
  upper triangular system solution.
• ASC benchmark Sweep3D Sweep3d
• Solves a 3-D, time-independent, neutron particle
  transport equation on an orthogonal mesh.
• Test machine Chiba-City Linux cluster (ANL)
• 128 dual-CPU Pentium III, 450MHz, 512MB RAM/node,
  Linux 2.6.14.2 (ktau) kernel, connected by
  Ethernet

17
KTAU Larger-Scale Runs

• By chance experienced problems on Chiba
• Initially ran NPB-LU and Sweep3D codes on 128x1
  configuration
• Then ran on 64x2 configuration
• Extreme performance hit (72 slower!) with the
  64x2 runs
• Used KTAU views to identify and solve issues
  iteratively
• Eventually brought performance gap to 13 for LU
  and 9 for Sweep.

18
KTAU Larger-scale Runs
User-level MPI_Recv
MPI_Recv OS Interactions
Two ranks - relatively very low MPI_Recv() time.
Two ranks - MPI_Recv() diff. from Mean in
OS-SCHED.
19
KTAU Larger-scale Runs
Voluntary Scheduling
Preemptive Scheduling
Note x-axis log scale
Two ranks have very low voluntary scheduling
durations.
(Same) Two ranks have very large preemptive
scheduling.
20
KTAU Larger-scale Runs
ccn10 Node-level View
Interrupt Activity
NPB LU processes PID4066, PID4068 active. No
other significant activity! Why the Pre-emption?
64x2 Pinned Interrupt Activity Bimodal across
MPI ranks.
21
KTAU Larger-scale Runs
Use Merged performance data to identify
imbalance.Why does purely compute bound region
have lots of I/O?
TCP within Compute Time
TCP within Compute Calls
100 More background OS-TCP activity in Compute
phase. More imbalance!
22
KTAU Larger-scale Runs
Cost / Call of OS-level TCP
OS-TCP in SMP Costlier

• IRQ-Balancing blindly distributes interrupts and
  bottom-halves.
• E.g. Handling TCP related BH in CPU-0 for
  LU-process on CPU-1
• Cache issues! COMSWARE

23
KTAU Perturbation Study

• Five different Configurations
• Base Vanilla kernel, un-instrumented benchmark
• Ktau-Off Kernel patched with Ktau and
  instrumentations compiled-in. But all
  instrumentations turned Off (boot-time control)
• Prof-All All kernel instrumentations turned On.
• Prof-Sched Only scheduler subssystems
  instrumentations turned on
• Prof-AllTAU ProfAll, but also with user-level
  Tau instrumentation enabled
• NPB LU application benchmark
• 16 nodes, 5 different configurations, Mean over 5
  runs each
• ASC Sweep3D
• 128 nodes, Base and Prof-AllTAU, Mean over 5
  runs each.
• Test machine Chiba-City ANL

24
KTAU Perturbation Study
Sweep3d on 128 Nodes
Base ProfAllTAU Elapsed Time 368.25
369.9 Avg Slow.
0.49
Complete Integrated Profiling Cost under 3 on
Avg. and as low as 1.58.
Disabled probe effect.
Single instrumentation very cheap. E.g.
Scheduling.
25
KTAU Outline

• Introduction
• Motivations
• Objectives
• Architecture / Implementation Choices
• Experimentation the performance views
• Perturbation Study
• ZeptoOS KTAU on Blue Gene / L
• Future work and directions
• Acknowledgements

26
ZeptoOS KTAU On Blue Gene / L (BG/L)

• I/O Node
• Open source modified Linux Kernel (2.4, 2.6) -
  ZeptoOS
• Control I/O Daemon (CIOD) handles I/O syscalls
  from Compute nodes in pset.
• Compute Node
• IBM proprietary (closed-source) light-weight
  kernel
• No scheduling or virtual memory support
• Forwards I/O syscalls to CIOD on I/O node
• KTAU on I/O Node
• Integrated into ZeptoOS config and build system.
• Require KTAU-D (daemon) as CIOD is closed-source.
• KTAU-D periodically monitors sys-wide or
  individual process
• Visualization of trace/profile of ZeptoOS, CIOD
  using Paraprof, Vampir/Jumpshot.

27
KTAU On BG/L
28
KTAU On Bg/L continuedEarly Experiences
CIOD Kernel Trace zoomed-in (running iotest
benchmark)
29
KTAU On Bg/L continuedEarly Experiences
30
KTAU On Bg/L continuedEarly Experiences
Correlating CIOD and RPC-IOD Activity
31
KTAU Future Work

• Dynamic measurement control - enable/disable
  events w/o recompilation or reboot
• Improve performance data sources that KTAU can
  access - E.g. PAPI
• Improve integration with TAUs user-space
  capabilities to provide even better correlation
  of user and kernel performance information
• full callpaths,
• phase-based profiling,
• merged user/kernel traces
• Integration of Tau, Ktau with Supermon (possibly
  MRNet?), TAUg (next)
• Porting efforts IA-64, PPC-64 and AMD Opteron
• ZeptoOS Planned characterization efforts
• BGL I/O node
• Dynamically adaptive kernels

32
TAUg Outline

• Overview
• Motivation
• Design
• Programming Interface
• Experimentation
• Overheads

33
TAUg Motivation

• While an application is running, there exists a
  virtual global performance state
• All events, profiled on all processes and threads
• Need runtime, application-level access to the
  state
• Load balancing
• CQoS Computational Quality of Service
• Other adaptive runtime behavior
• Need scalable solution
• Many large applications already use MPI

34
TAUg Overview

• TAU generates and provides access to the local
  performance state
• MPI provides scalable communication
  infrastructure to promote the local states to the
  global state
• TAUg (global) performance view
• Subset of events in the local performance state
• TAUg (global) performance communicator
• Subset of MPI processes in the application
• Querying the view provides selective access to
  the global performance state

35
TAUg Design
36
TAUg Programming Interface

• TAU_REGISTER_VIEW()
• Selects a subset of events
• TAU_REGISTER_COMMUNICATOR()
• Selects a subset of processes
• TAU_GET_VIEW()
• Input view ID, communicator ID, exchange type
  (all-to-all, one-to-all, all-to-one), source/sink
  process rank (ignored for all-to-all
  communication)
• Output vector of performance data
• Uses scalable MPI collectives to exchange data

37
TAUg experiments

• Simulation application
• Demonstrates functionality of TAUg in a simulated
  heterogeneous cluster to provide access to global
  performance view for load balancing
• ASC benchmark sPPM
• Solves a 3D gas dynamics problem on a uniform
  Cartesian mesh using a simplified version of the
  PPM (Piecewise Parabolic Method) code.
• ASC benchmark Sweep3D
• Solves a 3-D, time-independent, neutron particle
  transport equation on an orthogonal mesh.
• Test machines MCR, ALC (LLNL)

38
TAUg Overhead Simulation
Less than 0.1 overhead, one event, all
processes, 10 timesteps in 62.4 seconds for 128
CPUs, weak scaling
Load-balancing gave 28 speedup
39
TAUg Overhead sPPM
Less than 0.1 overhead, all events, all
processes, 20 timesteps in 120 seconds for 64
CPUs, weak scaling
40
TAUg Overhead Sweep3D
Less than 1.3 overhead, one event, all
processes, 200 timesteps in 250 seconds for 512
CPUs, strong scaling
41
Support Acknowledgements

• Department of Energys Office of Science
  (contract no. DE-FG02-05ER25663) and
• National Science Foundation (grant no. NSF CCF
  0444475)

42
References

• petrini03F. Petrini, D. J. Kerbyson, and S.
  Pakin, The case of the missing supercomputer
  performance Achieving optimal performance on the
  8,192 processors of asci q, in SC 03
• jones03 T. Jones and et al., Improving the
  scalability of parallel jobs by adding parallel
  awareness to the operating system, in SC 03
• PAPI S. Browne et al., A Portable Programming
  Interface for Performance Evaluation on Modern
  Processors. The International Journal of High
  Performance Computing Applications,
  14(3)189--204, Fall 2000.
• VAMPIR W. E. Nagel et. al., VAMPIR
  Visualization and analysis of MPI resources,
  Supercomputer, vol. 12, no. 1, pp. 6980, 1996.
• ZeptoOS ZeptoOS The small linux for big
  computers, http//www.mcs.anl.gov/zeptoos/
• NPB D.H. Bailey et. al., The nas parallel
  benchmarks, The International Journal of
  Supercomputer Applications, vol. 5, no. 3, pp.
  6373, Fall 1991.

43
References

• Sweep3d A. Hoise et. al., A general
  predictive performance model for wavefront
  algorithms on clusters of SMPs, in International
  Conference on Parallel Processing, 2000
• LMBENCH L. W. McVoy and C. Staelin, lmbench
  Portable tools for performance analysis, in
  USENIX Annual Technical Conference, 1996, pp.
  279294
• TAU TAU Tuning and Analysis Utilities,
  http//www.cs.uoregon.edu/research/paracomp/tau/
• KTAU-BGL A. Nataraj, A. Malony, A. Morris, and
  S. Shende, Early experiences with ktau on the
  ibm bg/l, in EuroPar06, European Conference on
  Parallel Processing, 2006.
• KTAU A. Nataraj et al., Kernel-Level
  Measurement for Integrated Parallel Performance
  Views the KTAU Project (under submission)

44
Team

• Aroon Nataraj, PhD Student KTAU
• Kevin Huck, PhD Student - TAUg
• Prof. Allen D Malony
• Dr. Sameer Shende, Senior Scientist
• Alan Morris, Senior Software Engineer
• Suravee Suthikulpanit , MS Student (Graduated) -
  KTAU
