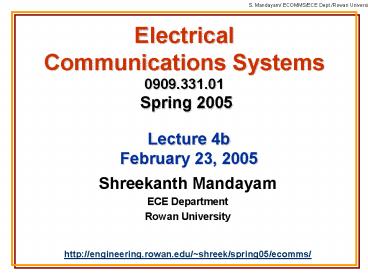

Electrical Communications Systems 0909'331'01 Spring 2005

1
Electrical Communications Systems0909.331.01
Spring 2005
Lecture 4bFebruary 23, 2005

• Shreekanth Mandayam
• ECE Department
• Rowan University
• http//engineering.rowan.edu/shreek/spring05/ecom
  ms/

2
Plan

• Amplitude Modulation
• AM Features
• AM Modifications
• DSB-SC

3
ECOMMS Topics
4
Recall AM Spectrum
Message Spectrum
AM Spectrum
5
Single Tone AM
m(t) Amcos(2pfmt)
c(t) Accos(2pfct)
s(t) Ac1 Amcos(2pfmt)cos(2pfct)
6
Spectrum of Single Tone AM
Instrument Demo
Matlab Demo
http//engineering.rowan.edu/shreek/spring03/ecom
ms/demos/am.m
7
Percentage Modulation
Amax Ac1Am
s(t)
Amin Ac1-Am
Ac
t
8
AM Bandwidth
Message Spectrum
AM Spectrum
9
AM Power Efficiency
10
AM Standards
See p. 308
11
AM Features

• AM system is very cheap to build and maintain
• AM is wasteful of power - max efficiency is 33
• AM is wasteful of bandwidth - twice the message
  bandwidth is required
• AM Modifications
• DSB-SC
• SSB
• VSB

12
DSB-SC Modulation
Message Spectrum
Matlab Demo
http//engineering.rowan.edu/shreek/spring05/ecom
ms/demos/dsbsc.m
f
DSB-SC Spectrum
S(f)
-fc-B -fc -fcB 0 fc-B fc
fcB
f
13
Summary
