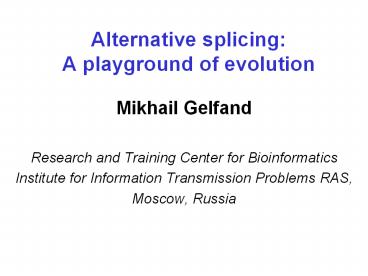

Alternative splicing A playground of evolution

• Mikhail Gelfand
• Research and Training Center for Bioinformatics
• Institute for Information Transmission Problems
  RAS,
• Moscow, Russia

2
of alternatively spliced human and mouse genes
by year of publication
Human (genome / random sample)
All genes
Human (individual chromosomes)
Only multiexon genes
Genes with high EST coverage
Mouse (genome / random sample)
3
Plan

• Evolution of alternative exon-intron structure
• mammals human, mouse, dog
• dipteran insects Drosophila melanogaster, D.
  pseudoobscura, Anopheles gambiae
• Evolutionary rate in constitutive and alternative
  regions
• human / mouse
• D. melanogaster / D. pseudoobscura
• human-chimpanzee / human SNPs
• Functional consequences of alternative splicing
  what does it do with proteins

4
Alternative exon-intron structure in fruit flies
and the malarial mosquito

• Same procedure (AS data from FlyBase)
• cassette exons, splicing sites
• also mutually exclusive exons, retained introns
• Follow the fate of D. melanogaster exons in the
  D. pseudoobscura and Anopheles genomes
• Technically more difficult
• incomplete genomes
• the quality of alignment with the Anopheles
  genome is lower
• frequent intron insertion/loss (4.7 introns per
  gene in Drosophila vs. 3.5 introns per gene in
  Anopheles)

5
Conservation of coding segments
constitutive segments alternative segments
D. melanogaster D. pseudoobscura 97 75-80
D. melanogaster Anopheles gambiae 77 45
6
Observations

• Alternative splicing is less conserved than
  constitutive one
• D.melanogaster - D.pseudoobscura
• retained introns are the least conserved (are all
  of them really functional?)
• mutually exclusive exons are as conserved as
  constitutive exons
• D.melanogaster Anopheles gambiae
• mutually exclusive exons are conserved exactly
  (no intron insertions would disrupt
  regulation?)
• cassette exons are the least conserved

7
The MacDonald-Kreitman test evidence for
positive selection in (minor isoform) alternative
regions

• Human and chimpanzee genome mismatches vs human
  SNPs
• Exons conserved in mouse and/or dog
• Genes with at least 60 ESTs (median number)
• Fishers exact test for significance

Pn/Ps (SNPs) Dn/Ds (genomes) diff. Signif.
Const. 0.72 0.62 0.10 0
Major 0.78 0.65 0.13 0.5
Minor 1.41 1.89 0.48 0.1

• Minor isoform alternative regions
• More non-synonymous SNPs Pn(alt_minor).12 gtgt
  Pn(const).06
• More non-synonym. mismatches Dn(alt_minor).91
  gtgt Dn(const).37
• Positive selection (as opposed to lower
  stabilizing selection) a 1 (Pa/Ps) /
  (Da/Ds) 25 positions
• Similar results for all highly covered genes or
  all conserved exons

8
Alternative splicing avoids disrupting domains
(and non-domain units)

• Data
• SwissProt
• PROFAM
• PROSITE
• Control
• fix the domain structure randomly place
  alternative regions

9
Positive selection towards domain shuffling (not
simply avoidance of disrupting domains by
occurring between domains )
10
Short (lt50 aa) alternative splicing events within
domains target protein functional sites
c)
FT
positions
affected
FT
positions
unaffected
Prosite
patterns
affected
Prosite
patterns
unaffected
Expected
Observed
11
An attempt of integration

• AS is often genome-specific
• alternative exons and sites are less conserved
  (more often lost or gained) than constitutive
  ones
• but still functional
• Even NMD-inducing isoforms are conserved in at
  least one lineage
• especially those supported by multiple ESTs
• AS regions show evidence for decreased negative
  (stabilizing) selection
• excess non-synonymous codon substitutions
• AS regions show evidence for positive
  (diversifying) selection
• excess non-synonymous SNPs
• AS tends to shuffle domains and target functional
  sites in proteins
• Thus AS may serve as a testing ground for new
  functions without sacrificing old ones

12
Acknowledgements Authors

• Discussions
• Vsevolod Makeev (GosNIIGenetika)
• Eugene Koonin (NCBI)
• Igor Rogozin (NCBI)
• Dmitry Petrov (Stanford)
• Dmitry Frishman (GSF, TUM)
• Shamil Sunyaev (Harvard University Medical
  School)
• Data
• King Jordan (NCBI)
• Support
• Howard Hughes Medical Institute
• INTAS
• Russian Academy of Sciences (program Molecular
  and Cellular Biology)
• Russian Fund of Basic Research

• Andrei Mironov (Moscow State University)
• Ramil Nurtdinov (Moscow State University)
  human/mouse/dog
• Dmitry Malko (GosNIIGenetika)
  drosophila/mosquito
• Ekaterina Ermakova (Moscow State University,
  IITP) Kn/Ks
• Vasily Ramensky (Institute of Molecular Biology)
  SNPs
• Irena Artamonova (GSF/MIPS) human/mouse,
  plots
• Alexei Neverov (GosNIIGenetika) functionality
  of isoforms
