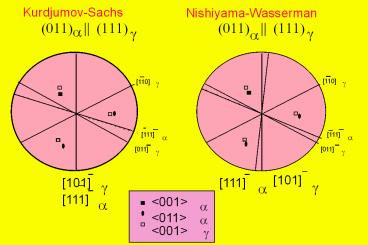

Kurdjumov-Sachs

1
Kurdjumov-Sachs
Nishiyama-Wasserman
?????????????????
?????????????????
?
?
?
?
110
110
?
?
111
111
?
?
011
011
?
?
101
101
111
?
?
?
111
lt001gt
?
?
lt011gt
?
lt001gt
?
2
Banded Ferrite-Pearlite Microstructures
Normal
Nb microalloyed
3
Empirical Equations
?y a b (C) c (Mn) d (Ni)
....
1223
4
?y a b (C) c (Mn) ?y a b (C) c
(Mn) d(C x Mn)
5
?y a b (C) c (Mn) ?y a b (C) c
(Mn) d(C x Mn) ?y sin (C)
tanh (Mn)
6
Impact Energy
Test temperature / C
7
Accelerated cooling
700
UTS
600
Strength / MPa
500
TWO STAGE
yield
400
SINGLE STAGE
-40
toughness
FATT / C
-80
0 200 400 600
Forced cooling stop T / F
Amano et al., 1988
8
Accelerated cooling
AUSTENITE
THERMOMECHANICAL PROCESSING
Ar3
rapid cooling (ferrite)
RAPID COOLING
T
F
less rapid cooling (bainite)
AIR
COOLING
T
F
AIR COOLING
TIME
9
Commercial
roller quench
NKK on-line
accelerated
Nippon Nagoya
cooling
Works, DQ
Air cool
-1
Average cooling rate (800-500 C) / C s
10
ULCB Steel
Hulka et al., 1988
11
ULCB Steel
Hulka et al., 1988
12
Accelerated cooled Control rolled
Segregated zone
Segregated zone
0.4
0.3
0.2
0.1
0
0 50 100 0
50 100
DISTANCE ACROSS PLATE MID-THICKNESS / µm
Tamehiro et al.
13
250
o
900
C (finish rolling temperature)
200
o
790
C
150
0 5 10 15
20 25 30
DISTANCE THROUGH PLATE THICKNESS / mm
Tamuki et al.
14
TENSILE STRENGTH
IMPACT ENERGY
YIELD STRENGTH
TRANSITION TEMPERATURE
CARBON / wt.
15
(No Transcript)
16
(No Transcript)
17
ACCELERATED
700
COOLED
600
CONTROL
ROLLED
500
0.30 0.40
CARBON EQUIVALENT
C Mn/6 (CrMoV)/5 (NiCu)/15 wt.
Tamehiro et al.
18
Ferrite - Pearlite
Acicular ferrite
Martensite
Yutori Ogawa
19
Pickering Irvine
20
Maximum fraction of bainite
xT0 - x
T0
V??
T
xT0 - x?
xT0 - x
?
xT0
x
Carbon
21
MARTENSITEApproximate habit plane indices

• Low-alloy stees, Fe-28Ni 1 1 1?
• Plate martensite in Fe-1.8C 2 9 5
• Fe-30Ni-0.3C 3 15 10
• Fe-8Cr-1C 2 5 2
• ? martensite in 18/8 stainless 1 1 1

22
V?
dV? ( 1 - ) dV?
e
V
23
V????V?
dV? ( 1 - ) dV?
e
V
V????V?
dV? ( 1 - ) dV?
e
V
24
(No Transcript)
25
(No Transcript)
26
Calculated creep rupture properties (Cole and
Bhadeshia)
27
Calculated
Measured (Welds)
5
o
2.25Cr1Mo, 10
h, 510
C
300
Weld Metal
250
200
150
100
50
0
0.00
0.03
0.06
0.09
0.12
Carbon / wt
Cole and Bhadeshia, 1998
28
Calculated
Measured (Welds)
5
o
2.25Cr1Mo, 10
h, 565
C
200
Weld Metal
150
100
50
0
0.00
0.03
0.06
0.09
0.12
Carbon / wt
Cole and Bhadeshia, 1998
29
Alloys proposed by Cambridge University,
manufactured at Nippon Steel
wt A B wt A B C 0.116 0.127 P 0.004 0.003
Si 0.014 0.012 S 0.0005 0.0005 Mn 0.47 0.48 Al
lt0.002 lt0.002 Ni 0.02 lt0.01 Ta lt0.001 lt0.001 Cr
8.96 8.66 Ti 0.003 0.004 Cu 0.004 0.003 B 0.
007 0.00064 Mo 0.71 0.30 N 0.0682 0.0705 V 0.22
0.21 O 0.0103 0.0089 Co 1.23 0.003 H 0.00008
lt0.00001 Nb 0.013 0.015 W 3.01
2.96
30
Temperature / C
31
Steel A
Temperature / C
Steel B
Temperature / C
32
Temperature / C
33
Carbide reactions steel A
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
34
Carbide reactions steel B
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
35
Precipitation reactions, 10CrMoW
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
36
Phase fractions, steel A
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
37
Phase fractions, steel B
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
38
Phase fractions, 10CrMoW
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
39
(No Transcript)
40
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
41
Brun, Robson, Narayan, MacKay Bhadeshia, 1998
42
2.25Cr1Mo 600 C
M3C
M2X
M23C6
Time / h
1000 h
43
3Cr1.5Mo 600 C
M3C
M23C6
100 h
Time / h
44
0.02500
NF616 600 C
M23C6
M
C
3
0.02000
0.01500
0.01000
Laves
M
X
0.00500
2
0.00000
1e-03
1e00
1e03
Time / h
1000 h
45
C Si Mn Nb wt Standard 0.11 0.21 1.24 M
icroalloyed 0.11 0.30 1.40 0.03
?ly ?uy ?uts Standard 285 320 480 Microa
lloyed 395 430 525
MPa
elongation CV / J, -20 C Standard 36 55-90
Microalloyed 32 100-190
