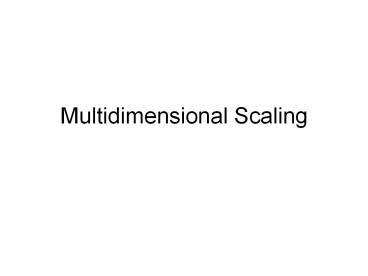

Multidimensional Scaling

1
Multidimensional Scaling
2
Agenda

• Multidimensional Scaling
• Goodness of fit measures
• Nosofsky, 1986

3
Proximities
pAmherst, Hadley
Amherst Belchertown Hadley Leverett Pelham Shutesbury Sunderland
Amherst 0 9.94 4.32 7.29 6.81 9.94 7.81
Belchertown 0 14.06 14.94 8.25 13.96 17.66
Hadley 0 11.02 10.93 14.49 9.5
Leverett 0 12.57 7.45 5.18
Pelham 0 5.71 16.16
Shutesbury 0 11.04
Sunderland 0
4
Configuration (in 2-D)
xi
5
Configuration (in 1-D)
6
Formal MDS Definition

• f pij?dij(X)
• MDS is a mapping from proximities to
  corresponding distances in MDS space.
• After a transformation f, the proximities are
  equal to distances in X.

Amherst Belchertown Hadley Leverett Pelham Shutesbury Sunderland
Amherst 0 9.94 4.32 7.29 6.81 9.94 7.81
Belchertown 0 14.06 14.94 8.25 13.96 17.66
Hadley 0 11.02 10.93 14.49 9.5
Leverett 0 12.57 7.45 5.18
Pelham 0 5.71 16.16
Shutesbury 0 11.04
Sunderland 0
7
Distances, dij
dAmherst, Hadley(X)
8
Distances, dij
9
Distances, dij
dAmherst, Hadley(X)4.32
10
Proximities and Distances
Proximities
Amherst Belchertown Hadley Leverett Pelham Shutesbury Sunderland
Amherst 0 9.94 4.32 7.29 6.81 9.94 7.81
Belchertown 0 14.06 14.94 8.25 13.96 17.66
Hadley 0 11.02 10.93 14.49 9.5
Leverett 0 12.57 7.45 5.18
Pelham 0 5.71 16.16
Shutesbury 0 11.04
Sunderland 0
Distances
Amherst Belchertown Hadley Leverett Pelham Shutesbury Sunderland
Amherst 0 10.0577 6.3325 7.4738 7.9313 7.8319 7.8328
Belchertown 0 12.0455 16.8332 6.7959 12.7215 17.6600
Hadley 0 12.0350 13.1492 14.1632 8.1892
Leverett 0 12.2097 7.3591 6.6429
Pelham 0 6.3360 15.4250
Shutesbury 0 12.7366
Sunderland 0
11
The Role of f

• f relates the proximities to the distances.
• f(pij)dij(X)

12
The Role of f

• f can be linear, exponential, etc.
• In psychological data, f is usually assumed any
  monotonic function.
• That is, if pijltpkl then dij(X)?dkl(X).
• Most psychological data is on an ordinal scale,
  e.g., rating scales.

13
Looking at Ordinal Relations
Proximities
Amherst Belchertown Hadley Leverett Pelham Shutesbury Sunderland
Amherst 0 9.94 4.32 7.29 6.81 9.94 7.81
Belchertown 0 14.06 14.94 8.25 13.96 17.66
Hadley 0 11.02 10.93 14.49 9.5
Leverett 0 12.57 7.45 5.18
Pelham 0 5.71 16.16
Shutesbury 0 11.04
Sunderland 0
Distances
Amherst Belchertown Hadley Leverett Pelham Shutesbury Sunderland
Amherst 0 10.0577 6.3325 7.4738 7.9313 7.8319 7.8328
Belchertown 0 12.0455 16.8332 6.7959 12.7215 17.6600
Hadley 0 12.0350 13.1492 14.1632 8.1892
Leverett 0 12.2097 7.3591 6.6429
Pelham 0 6.3360 15.4250
Shutesbury 0 12.7366
Sunderland 0
14
Stress

• It is not always possible to perfectly satisfy
  this mapping.
• Stress is a measure of how closely the model
  came.
• Stress is essentially the scaled sum of squared
  error between f(pij) and dij(X)

15
Stress
Correct Dimensionality
Stress
Dimensions
16
Distance Invariant Transformations

• Scaling (All X doubled in size (or flipped))
• Rotatation (X rotated 20 degrees left)
• Translation (X moved 2 to the right)

17
Configuration (in 2-D)
18
Rotated Configuration (in 2-D)
19
Uses of MDS

• Visually look for structure in data.
• Discover the dimensions that underlie data.
• Psychological model that explains similarity
  judgments in terms of distance in MDS space.

20
Simple Goodness of Fit Measures

• Sum-of-squared error (SSE)
• Chi-Square
• Proportion of variance accounted for (PVAF)
• R2
• Maximum likelihood (ML)

21
Sum of Squared Error
Data Prediction (Data-Prediction)2
7 5.03 3.88
8 6.97 1.06
1 2.12 1.25
8 8.91 0.83
6 6.97 0.94
SSE 7.97
22
Chi-Square
Data Prediction (Data-Prediction)2 (Data - Prediction)2/Prediction
7 5 4 0.80
8 7 1 0.14
1 2 1 0.50
8 9 1 0.11
6 7 1 0.14
Chi-Square 1.70
23
Proportion of Variance Accounted for
Data Mean Prediction Mean Prediction Mean Prediction Model Prediction Model Prediction Model Prediction
Mean Error Error2 Prediction Error Error2
7 6 1 1 5.03 1.97 3.88
8 6 2 4 6.97 1.03 1.06
1 6 -5 25 2.12 -1.12 1.25
8 6 2 4 8.91 -0.91 0.83
6 6 0 0 6.97 -0.97 0.94
SST 34 SSE 7.96
(SST-SSE)/SST (34-7.96)/34 .77
24
R2

• R2 is PVAF, but

Data Mean Prediction Mean Prediction Mean Prediction Model Prediction Model Prediction Model Prediction
Mean Error Error2 Prediction Error Error2
7 6 1 1 5.9 1.1 1.21
8 6 2 4 10.1 -2.1 4.41
1 6 -5 25 4 -3 9
8 6 2 4 5.9 2.1 4.41
6 6 0 0 1 5 25
SST 34 SSE 44.03
(SST-SSE)/SST (34-44.03)/34 -0.295
25
Maximum Likelihood

• Assume we are sampling from a population with
  probability f(Y ?).
• The Y is an observation and the ? are the model
  parameters.

?0
Y
N(-1.7 ?0)0.094
26
Maximum Likelihood

• With independent observations, Y1Yn, the joint
  probability of the sample observations is

?0
Y1
Y2
Y3
0.094 x 0.2661 x .3605 .0090
27
Maximum Likelihood

• Expressed as a function of the parameters, we
  have the likelihood function
• The goal is to maximize L with respect to the
  parameters, ?.

28
Maximum Likelihood
?0
Y1
Y2
Y3
0.094 x 0.2661 x .3605 .0090
(Assuming ?1)
?-1.0167
Y1
Y2
Y3
0.3159 x 0.3962 x .3398 .0425
29
Maximum Likelihood

• Preferred to other methods
• Has very nice mathematical properties.
• Easier to interpret.
• Well see specifics in a few weeks.
• Often harder (or impossible?) to calculate than
  other methods.
• Often presented as log likelihood, ln(ML).
• Easier to compute (sums, not products).
• Better numerical resolution.
• Sometimes equivalent to other methods.
• E.g., same as SSE when calculating mean of a
  distribution.
