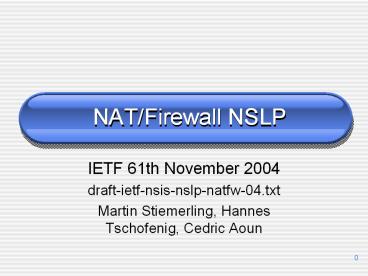

NAT/Firewall NSLP

1
NAT/Firewall NSLP

• IETF 61th November 2004
• draft-ietf-nsis-nslp-natfw-04.txt
• Martin Stiemerling, Hannes Tschofenig, Cedric Aoun

2
Changes in -04

• Editorial changes
• Query
• Removed user id
• Moved Section 3.4.x to 3.3.8 and 3.3.9
• Sections are about proxy mode operation

3
Proxy Mode 1/2

• Removed section on CREATE on previously pinned
  down path
• NR behind a NAT, NI not NSIS capable
• NR uses REA to create incoming data path
• CREATE runs on reverse path created by REA
• Excludes routing asymmetry
• Section 3.3.8 describes proxy mode

4
Proxy Mode 2/2

• DS Public Internet NAT Private
  address NR
• No NI
  space
•
  REACREATE
•
  lt-------------------------------
•
  RESPONSEError/Su
•
  ----------------------------- gt
•
  CREATE
•
  ------------------------------gt
•
  RESPONSEError/Su
•
  lt------------------------------
•

•


5
Notify

• NOTIFY implements asynchronous messages
• NOTIFY carries codes indicating reason
• Timeout
• Local error in middlebox
• Notify address can be set
• NOTIFY message is not sent up- or downstream
• Message is sent to notify address
• What direction NOTIFY messages should be sent
• Upstream or downstream
• Upstream and downstream
• Should there be switch for NI to decided which
  way?

6
Close Pinholes

• Current NSLP Default to Deny
• NATFW NSLP opens Firewall/NAT
• New Closing Firewall pinholes
• Accepts open by default
• Do people feel that closing Firewall pinholes is
  a useful functionality?
• Does this apply to NATs as well?

7
Open Issues

• Message extensibility
• Overview picture about NATFW elements
• Discussion about Firewall/NAT state transfer
• Requested for mobile hosts
• Host should be able to transfer state from one
  NATFW NSLP box to a new one
• Other open issues are in the NATFW NSLP issue
  tracker.
