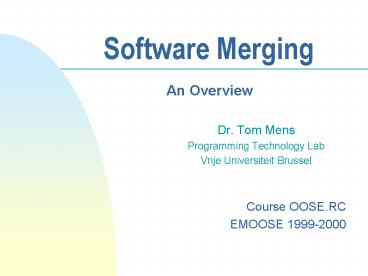

Software Merging

1
Software Merging

• An Overview
• Dr. Tom Mens
• Programming Technology Lab
• Vrije Universiteit Brussel
• Course OOSE.RC
• EMOOSE 1999-2000

2
Problem Statement

• Collaborative Software Development
• many different software developers working
  simultaneously on the same software
• parallel changes are made to the same code
• need to combine these changes
• Software merging
• automated tool support for combining parallel
  changes
• detect inconsistencies or unexpected interactions
  between parallel changes
• provide support for resolving these
  inconsistencies

3
Context

• Merge tools are usually part of a configuration
  management or version management system
• Definition
• Software configuration management (SCM) is the
  discipline of managing and controlling change in
  the evolution of software systems
• IEEE Standard 1042, 1987
• Examples
• Revision Control System Tichy 1985
• Concurrent Version System Berliner 1990
• Perforce www.perforce.com
• ClearCase Leblang 1994
• Adele Estublieral 1994

4
Version Terminology
5
SCM

• Traditionally, SCM was seen purely as a
  management discipline
• Bershoffal80
• Nowadays, it is also treated as a software
  development support discipline
• provides automated help to reduce complexity of
  making changes to large-scale software systems
• SCM is necessary in all phases of software
  life-cycle

6
SCM Concepts

• Configuration item
• a self-contained software artefact whose
  evolution needs to be tracked and controlled
• some items can be composite, consisting of other
  items
• Version
• identifies the state of a configuration item at a
  well-defined point in time
• each state has a unique version number
• variants are versions that are intended to
  coexist
• e.g., Mac/Windows/Unix variant of software
  application
• e.g., Light/Standard/Professional edition of
  software application
• a promotion is a version available to other
  developers
• promotions are stored in a workspace (or dynamic
  library)
• a release is a version available to clients or
  users
• releases are stored in a repository (or static
  library)

7
SCM Concepts ctd.

• Configuration
• a version of a composite configuration item,
  containing a consistent set of other
  configuration item versions
• Change request
• formal request for modifying a configuration item
• Baseline
• Formally reviewed and agreed on configuration
  item that can only be changed through a change
  request
• Branch
• concurrent development path requiring independent
  SCM
• different branches can be reconciled by merging
  their versions

See BrueggeDutoit2000.
8
Exercise 1

• SCM systems such as RCS and CVS use file names
  and their paths to identify configuration items.
• Explain why this feature prevents the
  configuration management of composite
  configuration items, even in the presence of
  labels.

9
SCM Activities

• Configuration item identification
• each item has unique version number
• Status accounting
• record status of individual components, work
  products and change requests
• Build management
• enable automatic rebuilding of system when new
  versions of components are created
• minimise amount of recompilation
• Process management
• implement change policy
• e.g. only syntactically correct code can be part
  of a version /builds should be made every week
  /relevant developers should be notified about
  new versions that have been created
• Promotion management

10
SCM Activities ctd.

• Release management
• creation of releases is decided at management
  level, based on marketing and quality control
  advice
• creation of releases includes
• updating user manual (documentation)
• ensuring there are no inconsistencies
• validate completeness and quality
• Change management
• ensure consistency with project goals during
  changes
• different steps
• request a change
• assess request against project goals
• may include cost analysis and impact analysis
• accept or reject request
• plan accepted change, prioritise, and assign to
  developer
• audit implemented change (quality control)

11
SCM Activities ctd.

• Branch management
• merging is needed to coordinate overlapping or
  interacting parallel changes
• detect and resolve conflicts between overlapping
  changes
• heuristics to minimise merge conflicts
• anticipate where overlapping changes can occur
• merge frequently to identify overlaps early
• communicate likely conflicts to relevant
  developers
• minimalise changes in main branch, and do
  important changes in separate development
  branches
• minimise number of branches
• Variant management
• variants are needed when
• software operates on different platforms
  (different OS or hardware)
• sofware is delivered in variants with different
  levels of functionality
• variants can be dealth with by
• Different teams for each variant --gt reduced
  complexity / increased redundancy
• Single project with variant-specific code

12
Roles in SCM

• Configuration manager
• identifies configuration items
• defines procedures for creating promotions and
  releases
• Change control board member
• approves or rejects change requests
• assesses the changes and plans accepted changes
• Developer
• implements change requests
• creates promotions
• resolve merge conflicts
• Auditor
• ensure quality of changes
• select and evaluate promotions for a release
• ensure consistency and completeness of a release

13
Storing subsequent versions

• Alternatives for storing subsequent versions of a
  software artefact
• storing all versions integrally
• using deltas, i.e., store differences only
• forward deltas record original version and apply
  deltas to produce newer versions
• e.g. SCCS Rochkind 1975
• backward deltas record latest version entirely
  and apply deltas to produce older versions
• e.g. RCS Tichy 1985

14
Exercise 2

• Most version control systems use backward deltas
  rather than forward deltas to store subsequent
  revisions of the same version.
• Explain why this is the case.

15
Kinds of Merging

1. 2-way vs 3-way merging
2. reuse versus evolution
3. textual, syntactic or semantic merging
4. state-based vs change-based

16
a) 2-way vs 3-way merging
17
b) reuse vs evolution

• merging is necessary
• when an object-oriented framework is being
  customised by a framework user, while it is also
  evolved by the framework developer
• Cf. reuse contracts
• When two parallel changes to the same software
  artifact need to be combined

18
c) textual, syntactic, semantic

• textual merging
• Considers sofware artefacts as pure text files
  (or, alternatively, binary files)
• syntactic merging
• Use more structured information of software
  artefacts (e.g. trees or graphs)
• semantic merging
• Use behavioural information about software
  artefacts

19
text-based merging

• Different levels of granularity
• Line-based merging takes lines as primitive
  building blocks
• E.g. Unix diff
• Using single characters as building blocks is too
  inefficient for primitive use
• More efficient (two-way) approaches for merging
  binary files
• E.g. bdiff Tichy84 and vdelta

20
Exercise 3

• CVS uses a simple line-based merge rule to
  identify merge conflicts there is a conflict if
  the same line was changed in both revisions. If
  no such line exists, no conflict is generated and
  the merge is performed automatically.
• a) Explain why this approach fails to detect
  certain types of conflicts. Provide an
  illustrative example of both a syntactic and a
  semantic conflict that goes undetected.
• b) Vice versa, try to find an example where the
  approach generates a conflict while there isnt
  one.

21
Exercise 3 Solution a.1
function F(a,b)
function F(a,b) x F(1,2)
add function call
add third argument
Syntactic conflict! Function called with wrong
number of arguments.
function F(a,b,c)
function F(a,b,c) x F(1,2)
22
Exercise 3 Solution a.2
circumference(r) 2?r area(r) ?rr

circumference(r) 2area(r)/r area(r)
?rr
Semantic conflict! Unexpected infinite recursion
after merge.
circumference(r) 2?r area(r)
circumference(r)r/2
circumference(r) 2area(r)/r area(r)
circumference(r)r/2
23
syntactic merging

• Based on parse trees
• essentially models is-part-of relation between
  software entities
• Examples
• Westfechtel1991
• domain-independent approach
• Asklund1994
• Cdiff Grass 1992
• for parse trees of C programs

24
syntactic merging

• Based on graphs
• More flexible than trees
• also models relations like invokes, calls,
  uses, accesses, defines, ...
• Examples
• Rhoal1998
• Reuse contracts
• Steyaertal96 essentially method calls
• Mens2000 domain-independent formalism

25
semantic merging

• Finding all possible semantic conflicts is an
  undecidable problem in general
• Conservative approaches provide a safe
  approximation
• No false negatives all semantic conflicts are
  detected
• E.g. Horwitzal89, Binkleyal95
• Lightweight approaches only consider part of the
  semantics
• Can give rise to false positives and false
  negatives
• Possible approaches
• using predicates pre/postconds, invariants,
  obligations, exceptions
• Hoare69, Perry87
• using algebraic specifications
• Larch Guttagal5
• ...

26
d) state-based vs change-based

• state-based merging
• only uses information in original version and its
  revisions
• change-based merging
• explicitly documents the changes that have been
  made to the versions
• extensional change-based versioning annotates the
  changes inside the version
• e.g. Asklund 1994
• intensional change-based versioning describes the
  changes separately from the versions, in terms of
  the operations or transformations that have been
  used.
• E.g. EPOS Gullaal 1991

27
Exercise 4

• Explain why intensional change-based merging is
  more general or more expressive than state-based
  merging.
• Also give an example of a conflict that can be
  detected with change-based merging, but not with
  state-based merging.

28
Exercise 4 Solution

• 1. changes can be separated from the versions to
  which they are applied.
• a) In this way, the same changes can be applied
  more than once, for example to parallel versions
  of the software under development.
• b) It also becomes very straightforward to
  implement a multiple undo/redo mechanism. For
  undo, perform the last applied operations in the
  opposite direction. For redo, simply reapply the
  operations.

29
Exercise 4 Solution ctd.

• 2. improves conflict detection and conflict
  resolution
• efficiently detect more conflicts (conflict table)

30
Two Definitions of Merging

• Two parallel modifications M1 and M2 of the same
  software artifact can be merged if
• They can be serialised in any order (M1M2 and
  M2M1), and both serialisations lead to the same
  result
• The can be serialised in at least one order
  (M1M2 or M2M1).

M1
M2
31
Exercise 5

• a) Give an example of a situation that can be
  merged by making use of definition 2, but not by
  means of definition 1.
• b) Give an example where the merge according to
  definition 2 leads to a counter-intuitive result.

32
Exercise 5 Solution (a)

• Can be merged according to def. 2. First apply
  AddEdge(e,a,b), then perform Rename(b,c).
• Cannot be merged according to def. 1. If we first
  apply Rename(b,c), we cannot apply AddEdge(e,a,b)
  anymore.

33
Exercise 5 Solution (b)

• ???

34
Other Merge Issues

1. Domain-independence
2. Scalability
3. Degree of formality
4. Level of granularity
5. Resolving conflicts
6. Minimising conflicts

35
1) domain-independence

• Most approaches are restricted to a particular
  programming language
• Cdiff restricted to C
• Rational Rose Visual Differencing restricted to
  UML
• Domain-independent approaches
• Westfechtel 1991, using parse trees
• Mens 1999, using graphs

36
2) Scalability

• Text-based merge tools are not scalable
• changes to multiple lines simultaneously lead to
  conflicts for each line involved
• For operation-based merging
• Define composite transformations in terms of more
  primitive ones
• Gives higher-level view of the evolution
• Ignore some basic conflicts when they appear as
  part of a composite transformation

37
3) Degree of formality

• Ad-hoc
• E.g. Line-based merge tools
• Lightweight approach
• Using conflict tables
• Feather 1989, Steyaertal96
• Using graph rewriting
• Mens 1999 confluency pushout property,
  parallel sequential independence
• Completely formal techniques
• Berzins 1994
• Denotational semantics and Browerian algebras
• Horwitzal89, Binkleyal95
• program dependence graphs and program slicing

38
4) Level of granularity

• text-based merge tools
• line-based
• block-based
• character-based

39
5) Resolving Conflicts

• Use default conflict resolution strategies
• Cf. Asklund1994

40
6) Minimising Conflicts

• Small changes can have large impact
• A simple change can give rise to conflicts
  throughout the entire code
• Exercise 6 Try to find a number of different
  ways in which one might consider to reduce the
  number of detected conflicts to a managable
  number.

41
Exercise 6 Solution

• Using information hiding techniques to localise
  effect of changes
• Ignore temporary inconsistencies that are part of
  a large evolution step
• Use fine-grained revision control, where changes
  are as small as possible
• Keep parallel developers aware of each others
  changes
• Only perform local merges
• Intraprocedural merging JacksonLadd94

42
Useful Algorithms

• Redundancy removal
• Reduces number of detected conflicts
• reduces spaces, increases speed, increases
  understandability
• Normalisation
• Canonical form
• Reconstruction
• Reconstruct transformation given base version and
  revised version only

43
Classify existing approaches
Considered approach ... ... Reuse contracts Mens 2000
2-way /3-way 3-way
text / syntactic / semantic Syntactic uses typed graphs Light semantics
state / change change-based uses RC operations
Domain (in) dependence independent of considered domain
44
Assignment

• Classify a number of approaches according to the
  given criteria and answer the following questions
• Is the approach 2-way or 3-way?
• Is the approach textual, syntactic or semantic?
• Be as precise as possible Is it line-based?
  Which kind of syntactic or semantic software
  artefacts does it address? Which kind of
  semantics? (Conservative/light)
• Is the approach state-based or change-based?
• If change-based, is it extensional or
  intentional?
• If intentional, which operations or
  transformations are available? Is it scalable to
  composite transformations?
• Is the approach domain-independent or
  domain-specific?
• If domain-specific, can the technique be
  generalised to more domain-independent artefacts?
  Wy (not)?
• Does the approach have a formal foundation?
• Which? What are the benefits of this?
• How are conflicts detected?
• Are there any typical or special features of the
  approach?

45
Example reuse contract approach

• 3-way
• syntactic approach specialisation interfaces in
  Steyaertal96, collaboration diagrams in
  Lucas97, graphs in Mens99
• Light semantics ...
• Change-based merging
• Primitive transformations are Extension,
  Refinement, Cancellation, Coarsening
• Composite transformations can be defined
• Steyaertal96 and Lucas97 are domain-specific
• Make use of a conflict table
• class inheritance hierarchies and collaborating
  classes, respectively
• Mens99 presents domain-independent formalism
  based on graph rewriting
• Gives a formal characterisation of merge
  conflicts
• Special featureOriginally designed for reuse
  versus evolution conflicts

46
Assignment ctd.

• Discuss 3 approaches from the following list
• Feather 1989
• Unix diff diff3 utility, Emacs emerge tool,
  bdiff, vdelta, Suns filemerge tool Adams et al.
  1986
• Westfechtel 1991, Asklund 1994, Cdiff Grass
  1992
• Rational Rose Visual Differencing tool
• SCCS Rochkind 1975, DSEE Leblang et al. 1984,
  RCS Tichy 1985
• Commercial configuration management tools
  ClearCase Leblang et al. 1988, Leblang 1994,
  Adele Estublier et al. 1994
• Horwitz et al. 1989, Binkley et al. 1995,
  Semantic Diff Jackson et al. 1994, Berzins
  1994
• Lie et al. 1989, Lippe et al. 1992

47
References

• Adams et al. 1986 E. Adams, W. Gramlich, S.
  Muchnick, S. Tirfing. SunPro Engineering a
  practical program development environment. Proc.
  Int. Workshop on Advanced Programming
  Environments. LNCS 244 86-96, Springer-Verlag,
  1986
• Asklund 1994 U. Asklund. Identifying conflicts
  during structural merge. Proc. Nordic Workshop on
  Programming Environment Research 94, pp.
  231-242, Lund University, 1994
• Berliner 1990 B. Berliner. CVS II
  parallelizing software development. Proc. USENIX
  Conf., pp. 22-26, 1990
• Bersoff et al. 1980 E. H. Bersoff, V. D.
  Henderson, S. G. Siegel. Software configuration
  management an investment in product integrity.
  Prentice Hall, 1980.
• Berzins 1994 V. Berzins. Software merge
  semantics of combining changes to programs. ACM
  Transactions on Programming Languages and
  Systems, 16(6) 1875-1903, ACM Press, 1994
• Binkley et al. 1995 D. Binkley, S. Horwitz, T.
  Reps. Program integration for languages with
  procedure calls. ACM Transactions on Software
  Engineering and Methodology, 4(1) 3-35, ACM
  Press, 1995
• Estublier et al. 1994 J. Estublier, R.
  Casallas. The Adele configuration manager. In
  Configuration management trends in software.
  John Wiley Sons, 1994
• Feather 1989 M. Feather. Detecting interference
  when merging specification evolutions. ???, pp.
  169-176, ACM Press, 1989
• Grass 1992 J. E. Grass. Cdiff A syntax
  directed Diff for C programs. Proc. USENIX C
  Conf., pp. 181-193, 1992

48
References ctd.

• Gulla et al. 1991 B. Gulla, E.-A. Karlsson, D.
  Yeh. Change-oriented version descriptions in
  EPOS. Software Engineering Journal 6(6) 378-386,
  1991.
• Horwitz et al. 1989 S. Horwitz, J. Prins, T.
  Reps. Integrating non-interfering versions of
  programs. ACM Transaction on Programming
  Languages and Systems, 11(3) 345-387, ACM Press,
  1989
• Jackson et al. 1994 D. Jackson, D. A. Ladd.
  Semantic Diff A tool for summarizing the effects
  of modifications. Int. Conf. On Software
  Maintenance. IEEE Press, 1994
• Leblang et al. 1984 D. Leblang, R. Chase.
  Computer-aided software engineering in a
  distributed workstation environment.
  SIGPLAN/SIGSOFT Software Engineering Symposium on
  Practical Software Development Environments. ACM
  SIGPLAN Notices pp. 104-112, ACM Press, 1984
• Leblang et al. 1988 D. Leblang, R. Chase, H.
  Spilke. Increasing productivity with a parallel
  configuration manager. Proc. Int. Workshop on
  Software Version and Configuration Control, pp.
  21-38, Teubner-Verlag, 1988
• Leblang 1994 D. Leblang. The CM challenge
  configuration management that works. In
  Configuration management trends in software.
  John Wiley Sons, 1994
• Lie et al. 1989 A. Lie, R. Conradi, T.
  Didriksen, E.-A. Karlsson. Change-oriented
  versioning in a software engineering database.
  Proc. 2nd Int. Workshop on Software Configuration
  Management, ACM SIGSOFT Software Engineering
  Notes, 17 56-65, ACM Press, October 1989

49
References ctd.

• Lippe et al. 1992 E. Lippe, N. van Oosterom.
  Operation-based merging. Proc. 5th ACM SIGSOFT
  Symposium on Software Development Environments.
  ACM SIGSOFT Software Engineering Notes, 17(5)
  78-87, ACM Press, 1992
• Mens 1999 T. Mens. A Formal Foundation for
  Object-Oriented Software Evolution. PhD
  Dissertation, Vrije Universiteit Brussel,
  Belgium, September 1999
• Mens 2000 T. Mens. Conditional graph rewriting
  as a domain-independent formalism for software
  evolution, Proc. Int. Agtive 99 Conference,
  LNCS, Springer-Verlag, 2000
• Rho et al. 1998 J. Rho, C. Wu. An efficient
  version model of software diagrams. Proc. 5th
  Asia-Pacific Conf. Software Engineering, pp.
  236-243, 1998
• Rochkind 1975 M. Rochkind. The source code
  control system. IEEE Transactions on Software
  Engineering, 1(4) 364-370, IEEE Press, December
  1975
• Tichy 1985 W. Tichy. RCS a system for version
  control. Software Practice and Experience, 15(7)
  637-654, 1985
• Westfechtel 1991 B. Westfechtel.
  Structure-oriented merging of revisions of
  software documents. Proc. 3rd Int. Workshop on
  Software Configuration Management, pp. 68-79, ACM
  Press, 1991
