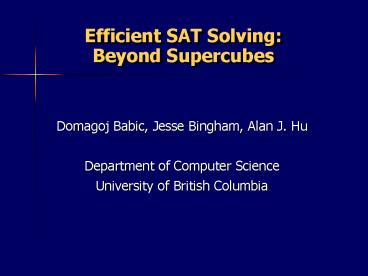

Efficient SAT Solving: Beyond Supercubes

1
Efficient SAT SolvingBeyond Supercubes

• Domagoj Babic, Jesse Bingham, Alan J. Hu
• Department of Computer Science
• University of British Columbia

2
Outline

• Motivation and Background
• Moving Beyond Supercubing
• Naïve Algorithm
• Standard Approach
• Supercubing
• B-Cubing
• Approximating B-Cubing
• Experimental Results

3
Motivation

• SAT has become dominant Boolean reasoning engine
  for EDA applications. Therefore, we need
  efficient SAT solvers.
• SAT is NP-complete, so unlikely that one approach
  will always work well. Therefore, we should
  explore a variety of different, but efficient
  approaches.
• Supercubing Goldberg, Prasad, Brayton 2002 is a
  fresh theoretical insight. We have been working
  on making supercubing-style SAT solvers
  performance-competitive with state-of-the-art
  standard solvers.

4
Background

• SAT Boolean Satisfiability
• Given a formula in CNF (product of sums), find a
  satisfying assignment, or determine that none
  exists.

Negative Literal
Positive Literal
Clause
5
Naïve Algorithm

• Try assigning values to variables one-by-one.
• (Propagate unit clauses.)
• Backtrack when a conflict is found.
• Visualize as a search tree.

6
Naïve Algorithm
a
7
Naïve Algorithm
a
b
8
Naïve Algorithm
a
b
c
9
Naïve Algorithm
d
10
Naïve Algorithm
d
e
f
11
Naïve Algorithm
d
e
f
x implied. Conflict!
12
Naïve Algorithm
d
e
f
x implied. Conflict!
x implied. Conflict!
13
Standard Algorithm

• Breakthrough for SAT solving, pioneered by
  leading SAT solvers (e.g., GRASP Marques-Silva
  and Sakallah, 99, CHAFF Moskewicz et al.,
  00, etc.)
• Analyze conflict which decisions really
  mattered?
• Backtrack non-chronologically.
• Learn a new clause to prevent same conflict from
  reoccurring.

14
Standard Algorithm
d
e
f
15
Standard Algorithm
d
e
f
16
Supercubing

• Fresh theoretical insight to SAT-solvingGoldberg
  , Prasad, Brayton, 02
• Demonstrated reduction in number of
  decisions,but did not achieve speedup over
  standard solvers.
• When exploring one subtree under literal x, if
  all conflicts involving x also contain literal y,
  then we can immediately assign literal y after
  flipping x.

17
Supercubing
a
b
c
18
Supercubing
a
b
c
d
Pruned
19
Why Supercubing Works

• Complement of conflict clause is a cube.
• Cubes for part of search tree collectively
  certify that that part is unsatisfiable.
• Supercube is a coarse overapproximation of
  remaining search space not covered by conflict
  cubes.

20
B-Cubing

• Generalization of Supercubing
• Ideally, remember all information derived from
  conflicts, not just an over-approximated cube.
• In practice, we must prune the informationkeep
  more than just a cube, but not too much.
• Must be implemented efficiently. The savings
  from exploiting the information must outweigh the
  overhead of maintaining it.

21
B-Cubing (Beyond Cubes)
a
b
c
d
e
f
f
Pruned
Pruned
22
B-Cubing Theory
x
Conflict cubes that involve x. Conflict cubes
that dont involve x.
Any over-approximation is safe!
(Doing this recursively is tricky!)
23
Approximating B-Cubing

• Any over-approximation of ideal B-cubing
  information is correct.
• Supercube is smallest over-approximate cube.
• We introduce Boolean Constraint Trees to
  summarize a set of conflict cubes
• Basically a decision tree
• Heuristics to maximize search-space pruning
• Different variable order allowed on different
  paths

f
d
e
!f
24
Experimental Results

• B-Cubing obviously will reduce number of
  decisions, but is the overhead excessive?
• We have implemented B-cubing in an experimental
  solver.
• Integration with learning is tricky. See Babic,
  Hu, ASPDAC05 for combining supercubing with
  learning.
• Run on an extensive array of benchmarks.
• Compared against ZChaff II, one of the leading
  solvers using the standard approach.

25
PicoJava BMC
26
IBM BMC
27
CMU BMC
28
FPGA Routing SAT
29
FPGA Routing UnSAT
30
Integer Factorization
31
Constraint Satisfaction
32
IBM FV Benchmark Library
33
Conclusion and Future Work

• Generalized supercubing-style solvers beyond
  cubes.
• Preliminary implementation competitive with
  top-notch standard solver.
• Sometimes much better/worse.
• Important to have alternative solvers.
• Enormous range of possibilities
• Supercubing coarse approx., easier, little
  memory
• JeruSAT Nadel, 02 all cubes within window
• B-Cubing general framework, BCTs provide good
  balance between accuracy and speed?
• Good engineering and implementation
