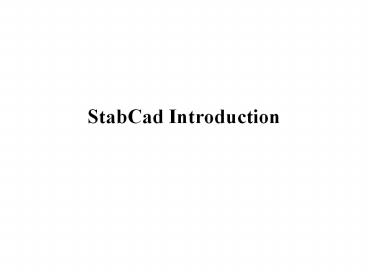

StabCad Introduction

1
StabCad Introduction
2

• StabCad has a ship stability package providing an
  interface to model the hull, simulate various
  (intact and damaged) conditions of floatation on
  it.
• Hydrostatic Curves
• Cross Curves of Stability and Curve of Static
  Stability
• Floodable length, permissible length Factor of
  subdivision
• Many more

3

• Learn how to use StabCad
• Read help Manual
• Practicing
• Examples
• Input file ( key to the HW)
• Design Courses and Future Work

4
Input File

• STABOPT - Stability options
• JOINT - Define the joint
  coordinates
• DRAFT - Define the vessel drafts
• CROSS - For the cross curves of stability
• INTACT - For the intact stability
• HULL - Hull definition by offset method
• HULLPAR - Particulars of the hull

5

• STAT - Station definition
• OFFS - Offsets
• ENDHULL - The end of hull definitions
• For an example in using the offset method
• in StabCad refer to the example file STABEX2.
