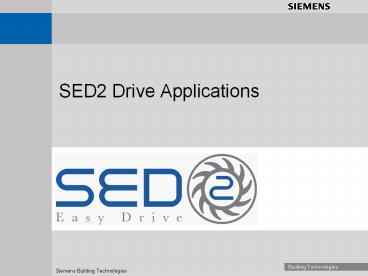

SED2 Drive Applications

1
SED2 Drive Applications
2
Simple Applications
INPUTS
OUTPUTS
0-10 V
Relay 1-gt Fault
On
FaultReset
Relay 2-gt Run
ACTION
3
Standard I/O
0-10 V 2-10 V 0-20 mA 4-20 mA Programmablefuncti
ons
0-10 V 2-10 V 0-20 mA 4-20 mA Ni 1000
SED2
2 x analog outputs
2 x analog inputs
Insulated Programmablefunctions PNP or NPN
(sink/source)
Form C contacts Programmablefunctions 30VDC,
5A 240VAC, 2A
2 x digital outputs
6 x digital inputs
P1 N2 USS LonWorks (opt.) Modbus (opt.)
RS-485
1 x motor PTC
4
Application - Air Temperature Control, Cooling

• Function Description
• Exhaust fan
• Air flow monitoring (External, only alarm)
• -Room temperature control, cooling
• Sensor Ni 1000
• -Set point 25C
• -Thermostat for switch on/off

Digital Input
Digital Input
Analog Input
5
Solution PID Controller Direct Sensor Connection

• Ni 1000 Temperature Sensor
• Drive Based PID w/ Hibernation Mode

Ni 1000Sensor
6
Ni 1000 I/O
SED2
Ni 1000
Analog input
1 Safety Input
Digital input
7
Application - Water Pressure Control

• Function Description
• Constant pressure (P)
• Pump Logic Controller
• (BG Buster package)
• P1, P2 and P3 on-off with motor
• starters

8
Solution Built-In Pump Cascading

• This function allows for control of up to two
  additional, cascaded pumps. With the two relay
  output contacts, the SED2 performs the cascading
  logic without additional controllers or I/O
  cards.
• -No separate controller required
• -Energy savings with SED2

Pressure demand
Cascade
9
Pump Staging I/O
SED2
0-10 volt Pressure Transmitter
2 x analog input
1 On Command 1 safety input
2nd stage pump 3rd stage pump
6 x digital input
2 x digital output
10
Application Temp. Control Belt Monitoring

• Function Description
• Exhaust fan
• Air flow monitoring (External, only alarm)
• -Room temperature control, cooling
• Sensor Ni 1000
• -Set point 25C
• -Thermostat for switch on/off
• Belt monitoring

11
Solution V-Belt Monitoring

• The SED2 ensures reliable V-belt monitoring
  without the expense of an external sensor. Both
  speed and torque are compared to a user-defined
  tolerance band. If the parameters do not match,
  the drive trips in the event of V-belt failure.
• Also, the SED2 is able to monitor a pulse
  sequence from the sensor detecting rotation of
  the fan shaft.

12
Application Temp. Control Duct Pressure
Control

• Function Description
• Exhaust fan Like air temperature control
  example
• -Air flow monitoring (External, only alarm)
• -Static pressure control
• 0-10v, 1-4inch wg
• -Set point 2.5 inch
• -Thermostat for switch on/off

13
Solution Duct Pressure Control

• 0 10 Volt standard output signal
• 1 Accuracy over full scale
• Available in uni-directional ½, 1, 2 and 5
  wc
• Available in bi-directional ¼ wc.

14
Static Pressure Control I/O
SED2
0-10 volt Pressure transmitter
2 x analog input
1 On Command 1 Safety Static Pressure Switch
6 x digital input
15
Bundled Package
The SED2 is equipped with TEC application
2722 Which includes 99 subpoints for monitoring
and control (See Attached Document for TEC
Schedule)
16
Control Board
17
Control Terminals
Can also be configured as NI1000 inputs.
18
Mounting Installation Considerations

• Type of environment
• - What is the location like? Does it fall
  within the drives operating ranges for
  altitude temperature
• Type of power
• - Line and load reactors reduce voltage. If
  voltage is already low, using them could have
  an effect on performance.
• - Does the power system supply at least 1
  impedance?
• Type of motor
• - Is it VFD rated?
• - Distance from the drive?
• - HP of the motors?
• - Age of the motor?

19
Enclosure Ratings - Drive Drive W/Bypass

• IP 20
• No NEMA equivalent, needs to be mounted in
  another enclosure
• Generally used in US for OEM applications
• Our standard unit as it comes from the factory
• IP 21
• NEMA 1, protects operator from electrical hazard
  and protects the equipment from falling material
• Our standard unit when fitted with gland plate
  and dust cover
• IP 54
• No direct US equivalent, but exceeds NEMA 12
• NEMA 3R
• Water tight, limited need in drive applications

20
Mounting Installation Considerations

• Line Reactor Installation
• Not recommended to reduce Harmonics
• Can be ordered with or without an enclosure
• Installed to protect the drive from
• Power spikes or sags caused from transfer to
  generator
• Poor heavy switch load on the same load center

21
Mounting Installation Considerations

• Load Reactor Installation
• Long wire leads from drive to motor
• As wire length from drive to motor increases, the
  voltage spike increases
• Can be ordered with or without an enclosure
• Installed to protect the motor from
• Spikes caused from the drive switching
  frequencies or IGBT

22
Mounting Installation Considerations

• Line and Load Reactor Installation
• Always use Siemens Building Technologies
  specified reactor
• For retro-fit applications
• REMOVE AND REPLACE EXISTING REACTORS WITH SBT
  SPECIFIED REACTORS

23
Siemens SED2 VFD Advantages

• Low harmonics design
• Small enclosure size
• Many standard features
• Reduces operating cost
• Low power losses/high efficiency
• Minimal effect on customer power
• Wide power range from ½ to 125 HP
