NSI Registry Engineering

1

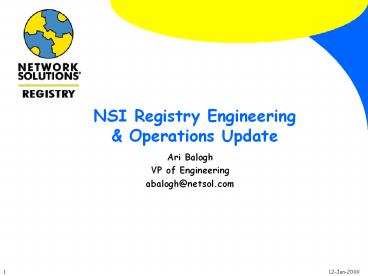

NSI Registry Engineering Operations Update

• Ari Balogh
• VP of Engineering
• abalogh_at_netsol.com

2
High-Level Architecture
3
Registrar Growth
4
Average Daily Transactions
In millions, compared to Original Plan and New
Projections (peak of 27.5M)
5
Total Transactions Summary
In millions
19
145
38
33
38
88
49
6
Availability Performance

• Service Level Agreement (SLA) allowances
• 8 hours total outage per month, 4 hours unplanned
• 3 seconds average for check domain (excluding
  worst 5)
• 5 seconds average for add domain (excluding worst
  5)
• January observed performance
• 3.5 hours planned outage to implement governance
  issues, no unplanned
• 600 ms per check domain, 2.5 seconds per add
• February observed performance
• No planned or unplanned outages
• 700 ms per check domain, 2.6 seconds per add

7
Availability Performance

• March observed performance
• Two 2 hour planned outages, 1.25 hour unplanned
  outage
• 60 ms per check domain, 300 ms per add
• April observed performance
• 2.5 hours planned outage, no unplanned
• 78.5 ms per check domain, 319.5 ms per add
• May observed performance
• 2 hours planned outage, no unplanned
• 34.7 ms per check domain, 257.2 ms per add

8
A Root Performance - UDP Packets/Second
5 Minute Average
30 Minute Average
9
A Root Performance - Drops Overflows
Drops - 5 Minute Average
Overflows - 5 Minute Average
10
J gTLD Performance - UDP Packets/Second
5 Minute Average
30 Minute Average
11
M gTLD Performance - UDP Packets/Second
5 Minute Average
30 Minute Average
12
The Infrastructure Problem

• SLA that incurs 500K/day outage and performance
  penalties
• Single shared database experiencing 30 - 90 per
  month OLTP growth
• Heavyweight stored procedures
• Sustained 50-70 utilization with peaks to 100
  and no more easy software fixes
• Increasing extract duration for zones, Whois,
  registrar extracts, 5 - 14 hours
• Immature or end-of-life HA options for E4500
• Sun, Veritas, EMC version and support issues

13
DB Server Evaluation

• Evaluated top Unix machines
• Sun E10000, HP V2500, IBM S7A/S80
• Narrowed to E10000 and S7A/S80
• Conducted three month live test of S7A/S80
• Ported gateway and application servers to IBM
  Java environment
• Created RRP path configuration
• Demonstrated performance and availability
  (HA/CMP)
• Investigated impacts of E10K
• Different administrative model
• EMC integration issues

14
Definitive Results

• Excellent Java and C code portability
• S80 clear performance leader, benchmarks and
  real-world
• Approximately 3 times the throughput per CPU vs.
  E10K
• Noticeably improved Java performance (!)
• Robust HA implementation
• Complete 64-bit environment
• Native file system and volume management
  excellent EMC integration
• Impressive and thorough support
• Demonstrated appreciation for multi-vendor,
  mission critical computing

15
Scaling DNS

• Domain name resolutions on A Root
• 4Q99 - 220M per day
• 1Q00 - 430M per day
• 2Q00 - 650M per day
• 4Q00 - 1.5B per day, more?
• Need 64-bit machines to scale past 4GB/23M domain
  name wall
• Developing bind extensions for high performance
  gTLD

16
64-bit DNS Evaluation

• Engaged Unix vendors to aid with in-house
  evaluation of 64-bit mid-range Unix servers
• HP N4000, IBM H70, Sun E3500
• E3500 eliminated early -- scale and 64-bit issues
• H70 within 15 of N4000, upcoming upgrade
  substantially faster
• Chose M80 as new root/gTLD platform
• Using E4500s as alternate platform and
  placeholder for UltraSparcIII generation

17
The Dot Problem
Resolutions per day. A Root meltdown?
18
Dot Diagnosis and Fix

• Too much load for existing E450
• Qualified and put into production the
  evaluation H70
• Greater than 60 increased throughput
• Jump from 220M resolutions per day to over 400M
• Qualified and put into production an S80 as
  placeholder for upcoming M80 deployment
• Greater than factor of three improvement over
  previous E450
• Tweaked TCP keepalive defaults and bind select
  loop
• Filtered dynamic updates

19
The New Dot
A Root resolutions per day with H70
20
Packet Drops
Percent packets dropped, day of H70 deployment
Deployed 11 a.m.
Current time (9 a.m. day after)
21
Upcoming access -www.dnsentral.net
