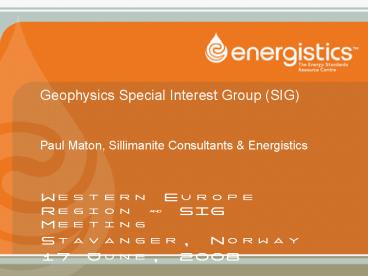

Geophysics Special Interest Group SIG Paul Maton, Sillimanite Consultants

1
Geophysics Special Interest Group (SIG)Paul
Maton, Sillimanite Consultants Energistics

• Western Europe Region SIG Meeting
• Stavanger, Norway
• 17 June, 2008

2
Presentation Outline

• Background to Geophysics SIG
• Business Case
• Some Visions
• Current Approach and Plan
• Conclusions

3
Geophysical Standards Background
All branches of Geophysics involve iterative
processes, - requiring communication within and
between them
DataAcquisition
Planning Design
InformationManagement
DataProcessing
Interpretation Modelling
Standards for Content and Formatare needed for
effective communications
4
Geophysical Digital Data Standards Timeline
Years
Outputs from
1990 - 1999
2000-2009
2010-2019
1960 - 1969
1970 - 1979
1980 - 1989
Note SEG has published over 50 standards. Only
the more used data standards areshown here. See
http//seg.org/publications/tech-stand/ for the
full list.
SeismicInterpretation
SEG-Rode
SeismicProcessing
SEG-Y
SEG-Y r1
SEG-SPS
SEG-SPS r2.1
SEG-D r3
SEG-D r2
SeismicAcquisition
SEG-D r2.1
SEG-D
SEG-D r1
SEG-C
SEG-A,-B,-C
EPSG Geodetic Parameter Set
UKOOA-P2/94
Location Data
UKOOA-P2/91
UKOOA-P1/84
UKOOA-P1/90
SEG-P1,2,3 (1983)
5
Indian Background to Geophysics SIG

• 1998 2004
• ONGCs EPINET Data Management Project
• Lessons learned getting 50 years of EP data
  under management
• It is not just about getting data into databases
• Data are worth little without supporting data,
  integrity, and quality assurance
• 2005 ONGC presented
• case for standards across Geophysical API
  activities cycle
• The lack of standards and best practices can
  impede the use of geophysical techniques,
  thereby reducing the value of those techniques to
  the organisation.
• Vision of multi-regional, global EP standards
  body
• Reiterated in 2006, and refined in 2007

6
Objectives of the Geophysics SIG

• As a representative of the community of creators
  and users of geophysical data and information
• To identify needs and requirements for open
  standards and improved work practices
• To collaboratively deliver, promote and deploy
  the standards and work practices across the life
  cycle of geophysical information

7
Drivers for Geophysical Standards

• Increasing number of uses of Geophysics
• More Exploration in mature and immature regions
• Applications in Field Development
• Applications in Smart Fields
• Optimising use of current techniques
• Enabling use of new techniques and technologies,
  in both seismic and information domains
• Increasing Data Volumes to be managed
• Various proprietary solutions already
  proliferating

All of which aim to get the job done faster,
better, with reduced cost, risk and uncertainty.
8
Initial Situation

• A list of gt60 Opportunities (areas for
  Improvement) from ONGC and other Indian EP
  Players
• These are from across the API (Acquisition,
  Processing, Interpretation) life cycle of
  geophysical data
• They probably satisfy the 8020 rule 80 of the
  higher value opportunities are already identified
• Companies joining in the future must be able to
  supplement the opportunity list if they add value
• Some of these opportunities are being used to
• Evolve and test our assessment process
• Promote and sell participation globally, beyond
  India

9
Visions

• It is possible to envisage a spectrum of targets
• From vocabularies for (SEG-format) Header or
  Trailers,
• To loose coupled work-flow integration, possibly
  web-based
• Our guiding lights must include
• Providing real Business Value to users and
  customers of Geophysics
• Establishing and adhering to relevant criteria on
  which to base our selections
• Providing specifications that can evolve to
  accommodate interoperability and technological
  change over at least one decade
• Plan to produce, pilot and test a few initial
  proposals

10
Assessment Criteria

• Impact indicators
• Number of API processesaffected
• Inaccuracy, uncertainty, risk,
• Loss of time
• Scale hours, days, weeks
• Value range 1 8 or 10
• Loss of data and/or metadata
• Quantity of impaired data
• Tasks needing Effort
• Specifying standard or improved work practice
• Implementing standard etc
• Deploying and promoting standard etc

Hi
ImpactorValue
Low
Hi
Effort
Low
11
Assessment Summary - 1
12
Assessment Summary - 2
13
Additional Approaches

• Collaboration with other Geophysical Standards
  Setting Organisations
• We will maintain awareness of and leverage
  existing and concurrent efforts by SEG, OGP,
  CSEG, OGC and others
• Focus on data transfer by XML messages loosely
  coupled via interfaces with existing applications
• We are aware of the perceived threat to existing
  software assets
• This approach is proving successful in
  near-real-time drilling (WITSML) and production
  optimisation (PRODML)
• Oilfield applications from Weatherford,
  Schlumberger, Kongsberg etc. are interoperating
  with Process Control apps from Invensys, OSISoft,
  AspenTech etc.

14
Deliverables

• Data exchange standards
• Usages conformant with SEG specifications
• Vocabularies of equipment items and
  configurations, version control, process history,
  etc left for User specification in SEG-D Revision
  3
• Data types not covered by SEG e.g. Velocity
• Work practice specifications
• Documented descriptions of improved work
  practices, in natural language and possibly an IT
  (UML or other?) model form
• At high and medium level, enabling adaptation as
  appropriate
• E.g. accommodate different practices for shooting
  new data c.f. acquiring spec data, or via trades
  or mergers

15
Geophysics SIG 2008 2009 Outline Plan
2008
2007
Years
2009
Q1
Q4
Q4
Q2
Q3
Activity
Indian Membership
Assess Opportunities
Seismic Headers Team
Velocity Exchange Team
Produce Proposal
International Membership
Review, revise plan
Execute revised plan
16
Geophysics SIG Road Map for 2008

• Assessment Work Group report and proposal is
  accepted by Energistics
• Proposes work on usage of SEG-D revision 3 to
  improve integration of seismic and positioning
  data in 2H2008
• Pause Seismic Headers and Velocity draft
  specifications
• Fit-for-use Indian SEG-Y header definition
  Velocity exchange format
• Expand participation internationally
• Oil companies, Seismic Co.s, Regulatory Agencies
• Work in full awareness of SEG Technical Standards
  Committee
• Set up SEG-D3 Usage Work Group
• Define objectives and use cases
• Obtain resources, produce and test pilot
  implementation(s)
• Promote, deploy and show benefit from improved
  work practices and standards
• Plan 2009 activities

17
Road Map for 2009 and beyond

• Continue approaches and activities as determined
  by business needs and support
• Review opportunity list and plan periodically
• Select 2 or 3 Opportunities for development,
  piloting and deployment each year

18
Conclusions

• The assessment indicates that significant
  opportunities exist in many organisations to
  reduce cycle-time to making business decisions
  based on geophysical information
• Active SIG membership is now being promoted to
  international EP and Service companies
• We have a good list of opportunities for
  improvements, many leveraging SEG standards
• Requirements for Velocity data and ONGC usage of
  SEG-Y headers are to be completed in June 2008
• SEG is being kept aware of these activities

19
Further Information _at_ Energistics web site

• Geophysics SIG pages
• www.Energistics.org gt Communities gt Geophysics
  SIG
• Public pages open to all
• Private pages open to Geophysics SIG members and
  Energistics sustaining members
• Events pages
• www.Energistics.org gt Events
• 2007 Events
• Geophysics SIG Assessment Workgroup meetings in
  Mumbai, 28 and 29 November
• 2008 Events
• Energistics S. Asia Regional meeting, SPG
  conference, and Geophysics SIG meetings, all in
  Hyderabad, 13 -16 January

20
Thank YouQuestions, please?

• Contact
• Paul Maton, Principal Consultant, Energistics
• 44 1932 828794
• Paul.Maton_at_Energistics.org
