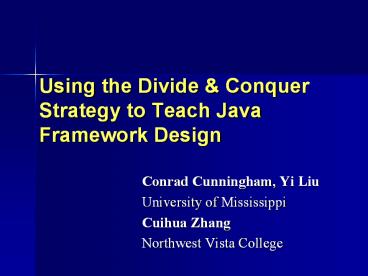

Using the Divide Conquer Strategy to Teach Java
Framework Design

• Conrad Cunningham, Yi Liu
• University of Mississippi
• Cuihua Zhang
• Northwest Vista College

2
Purpose

• Use a familiar topic such as divide and conquer
  to introduce students to more alien-sounding
  concepts
• Program families
• Frameworks
• Design patterns

3
Program Family

• Set of programs
• sharing many common properties
• worthwhile to study (and design) as a group
• David Parnas
• If you are developing a family of programs, you
  must do that consciously, or you will incur
  unnecessary long-term costs.

4
Framework

• Generic application allowing creation of specific
  members of family
• In OOP, framework described by
• set of abstract classes
• way that instances of those classes collaborate
• Family members
• share same abstract classes
• differ in implementations of concrete classes

5
Design Pattern

• Well-established solutions to recurring
  program design problems

6
Framework Design

• Identify common aspects (frozen spots)
• represent by set of ABSTRACT classes that
  collaborate in some structure
• implement common behaviors by concrete template
  methods in base class
• Identify variable aspects (hot spots)
• represent by abstract hook methods in base class
• realize by concrete methods in an application of
  the family

7
Framework Construction Principles

• Unification
• use inheritance to implement hotspot subsystem
• Separation
• use delegation to implement hotspot subsystem

8
Template Method Pattern

• Unification principle

9
Strategy Pattern

• Separation principle

10
Divide Conquer Approach

• Divide original problem into subproblems of same
  type
• Solve each subproblem independently
• Combine subproblem solutions into solution for
  original problem

11
Well-Known Examples

• Mergesort
• Quicksort
• Heapify
• Binary search
• Fast matrix multiplication
• Fast Fourier Transform (FFT)

12
Example Mergesort
1 12 10 6
1 12
10 6
12
10
6
1
6 10
1 12
1 6 10 12
13
Divide Conquer Pseudocode

• function solve(p)
• if isSimple(p)
• return simplySolve(p)
• else
• Problem sp decompose(p)
• for (i 0 iltsp.length i i 1)
• soli solve(spi)
• return combine (sol)

14
Divide Conquer Functions

• template method
• solve()
• hook methods
• isSimple()
• simplySolve()
• decompose()
• combine()

15
Framework Template Method Pattern
16
Template Method Class

• abstract public class DivConqTemplate
• final public Solution solve(Problem p) //
  takes Problem description
• Problem pp // and returns Solution
  description
• if (isSimple(p)) return simplySolve(p)
• else pp decompose(p)
• Solution ss new Solutionpp.length
• for(int i0 i lt pp.length i)
• ssi solve(ppi)
• return combine(p,ss)
• abstract protected boolean isSimple (Problem p)
• abstract protected Solution simplySolve (Problem
  p)
• abstract protected Problem decompose (Problem
  p)
• abstract protected Solution combine (Problem p,
  Solution ss)

17
Framework Application Quicksort

• Divide and conquer task sort a sequence in place
• Mapping problem into divide and conquer framework
• decompose partition into two segments about a
  pivot value (rearranges values in array)
• recursively sort each segment until just one
  element (isSimple and simplySolve)
• combine values already in needed location
• Describing the problem and solution
• identify sequence of values
• identify beginning and ending elements of segment

18
Problem and Solution Description

• Simplifying assumption sort integer arrays
• Problem description for sort
• overall array
• beginning and ending indices of segment
• Solution description for sort
• same as Problem description
• except array values rearranged in place
• QuickSortDesc object to represent both

19
QuickSortDesc Class

• public class QuickSortDesc implements
  Problem,Solution
• public QuickSortDesc(int arr, int first, int
  last)
• this.arr arr
• this.first first this.last last
• public int getFirst () return first
• public int getLast () return last
• private int arr
• private int first, last

20
Quicksort Subclass (1 of 3)

• public class QuickSort extends DivConqTemplate
• protected boolean isSimple (Problem p)
• return ( ((QuickSortDesc)p).getFirst()
• gt ((QuickSortDesc)p).getLast() )
• protected Solution simplySolve (Problem p)
• return (Solution) p

21
Quicksort Subclass (2 of 3)

• protected Problem decompose (Problem p)
• int first ((QuickSortDesc)p).getFirst()
• int last ((QuickSortDesc)p).getLast()

• int a ((QuickSortDesc)p).getArr ()
• int x afirst // pivot value
• int sp first
• for (int i first 1 i lt last i)
• if (ai lt x) swap (a, sp,
  i)
• swap (a, first, sp)
• Problem ps new QuickSortDesc2
• ps0 new QuickSortDesc(a,first,sp-1)
• ps1 new QuickSortDesc(a,sp1,last)
• return ps

22
Quicksort Subclass (3 of 3)

• protected Solution combine (Problem p,
  Solution ss)
• return (Solution) p
• private void swap (int a, int first, int
  last)
• int temp afirst
• afirst alast
• alast temp

23
To Build a Framework

• Represent common aspects as abstract classes and
  concrete template methods
• Represent variable aspects as abstract hook
  methods and concrete hook methods in hot spot
  subsystems
• Organize using unification or separation principle

24
To Use a Framework

• Implement concrete hook methods
• Plug subsystems into hot spots

25
Educational Observations

• Students should learn to design program families
• Students should be explicitly taught appropriate
  design and programming techniques
• Frameworks are understandable by students
  familiar with OOP
• Divide and Conquer algorithmic strategy provides
  a familiar, understandable environment for
  learning
• Other exercises are needed to teach students to
  identify and design appropriate hot spots

26
Summary

• Targeted at Java programming or software design
  courses
• Provides a simple example to teach computing
  students design and use of frameworks
• Aimed at improving students abilities to
  construct and use abstractions in design of
  program families

27
Acknowledgements

• Acxiom Corporation grant
• Acxiom Laboratory for Software Architecture and
  Component Engineering (ALSACE)
• Students in ENGR 660 in Fall 2003
