Reminder

1

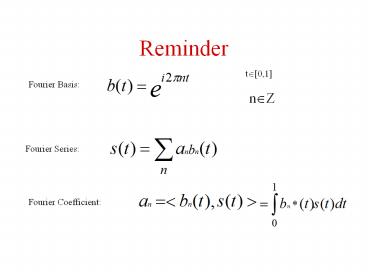

Reminder
t?0,1
Fourier Basis
n?Z
Fourier Series
Fourier Coefficient
2
Example - Sinc
rect(t)
3
Sinc - Pictures
4
Discrete Fourier Transform
Fourier Transform ( notations f(x) s(x/N),
F(u) ? auNk )
Inverse Fourier Transform
5
Fourier of Delta
6
2D Discrete Fourier
Fourier Transform
Inverse Fourier Transform
7
Display Fourier Spectrum as Picture
1. Compute
2. Scale to full range
3. Move (0,0) to center of image (Shift by N/2)
Example for range 0..10
Original f 0 1 2 4 100 Scaled to
10 0 0 0 0 10 Log (1f) 0 0.69 1.01 1.61 4.62 Sca
led to 10 0 1 2 4 10
8
Fourier Displays
9
Decomposition
10
Decomposition (II)

• 1-D Fourier is sufficient to do 2-D Fourier
• Do 1-D Fourier on each column. On result
• Do 1-D Fourier on each row
• (Multiply by N?)
• 1-D Fourier Transform is enough to do Fourier for
  ANY dimension

11
Decomposition Example
12
Translation
13
Periodicity Symmetry
(Only for real images)
14
Rotation
15
Linearity
16
Derivatives I
Inverse Fourier Transform
17
Derivatives II

• To compute the x derivative of f (up to a
  constant)
• Computer the Fourier Transform F
• Multiply each Fourier coefficient F(u,v) by u
• Compute the Inverse Fourier Transform
• To compute the y derivative of f (up to a
  constant)
• Computer the Fourier Transform F
• Multiply each Fourier coefficient F(u,v) by v
• Compute the Inverse Fourier Transform

18
Convolution Theorem
Convolution by Fourier
Complexity of Convolution O(N logN)
19
Filtering in the Frequency Domain
Filtered Picture
Filtered Fourier
Fourier
Filter
Low-Pass Filtering
20
Low Pass Frequency Image

• (0 0 1 1 0 0) ? Sinc
• (0 0 1 1 0 0) (0 0 1 1 0 0 ) (0 1 2 1 0 0) ?
  Sinc2
• (0 1 4 6 4 1 0) (0 0 1 1 0 0 ) 4 ? Sinc4
• Fourier (Gaussian) ? Gaussian

21
Continuous Sampling
