Foundations of Software Design

1

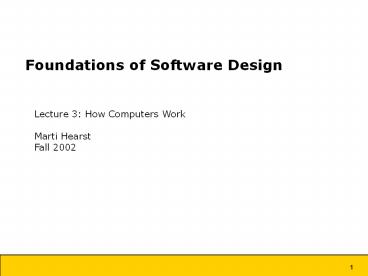

Foundations of Software Design
Lecture 3 How Computers Work Marti Hearst Fall
2002
2
Today

• Review/Revisit some things from last time
• XOR and masking
• What is inside a logic gate
• Decoders
• Circuits for addition / ALUs
• Circuits for memory
• Latches / Flip-Flops
• DRAM (Dynamic Random Access Memory)
• The CPU
• Its architecture
• Interaction with machine code

3
XOR Revisited

• TRUE only if just one of its inputs is TRUE
• Another version of masking
• We can use it to show which object moved and
  where it moved from.

Image from http//whatis.techtarget.com/definition
/0,,sid9_gci213512,00.htmlxor
4
XOR for Image Manipulation

• First, threshold the images
• All pixels are either 0 (black) or 1 (white)
• Then, XOR the images together
• Compare position (0,0) in first image to (0,0) in
  second
• Compare position (10,3) in the first to (10,3) in
  the second
• The truth table tells you what to do
• White shows which item(s) moved, and to where

Images from http//www.dai.ed.ac.uk/HIPR2/xor.htm
5
Results of the XOR

• What does it mean for a pixel to end up black?
• What does it mean for a pixel to end up white?
• What has to happen to create a new white pixel?

Called a bitwise operation Where have we seen
this?
Images from http//www.dai.ed.ac.uk/HIPR2/xor.htm
6
What is inside a logic gate?

• Circuit for a logic switch
• Open means logical 1 (connects output to power)
• Closed means logical 0 (connects output to ground)

Power supply
Resistor
Output signal
Transistor
Ground
http//www.play-hookey.com/digital/experiments/log
ic_indicators.html
7
What is inside a logic gate?

• Circuit for an LED indicator

Power supply
Resistors
LED (diode)
Input signal
Transistor
Ground
http//www.play-hookey.com/digital/experiments/log
ic_indicators.html
8
What is inside a logic gate?

• Good source online
• http//www.play-hookey.com/digital/experiments/
• http//www.play-hookey.com/semiconductors/

9
Circuit Board for Half-Adder
http//www.seas.upenn.edu/ee111/half-adder/Half-a
dder.html
10
n-bit DecoderTakes as input n inputs turns on
1 (and only 1) of outputs
A
B
W
X
Y
Z
Notice where the invertors are. They look like
the inputs of a truth table.
Righthand image from http//courses.cs.vt.edu/cso
nline/MachineArchitecture/Lessons/Circuits/index.h
tml
11
Circuits for Binary AdditionHalf Adder
Images from http//www.play-hookey.com/digital/add
er.html
12
Circuits for Binary AdditionFull Adder
Images from http//www.play-hookey.com/digital/add
er.html
13
Circuits for Binary AdditionFull Adder, 4 bit
output carry

• Can link up an arbitrary number of input bits
• Can modify this easily to do subtraction
• Can also modify to do multiplication
• How?
• Usually division is done with a special floating
  point chip

Images from http//www.play-hookey.com/digital/add
er.html
14
Arithmetic Logic Unit (ALU)Add, Subtract, and
Logic Operations
http//www.seas.upenn.edu/ee201/lab/LabALU/ALU.ht
ml
15
Circuit for using an ALU to control decimal LEDs
http//www.seas.upenn.edu/ee201/lab/LabALU/ALU.ht
ml
16
Flip-Flops

• Also called a latch
• Used to remember values
• Keep the same value until the input signals a
  change
• Example
• Circuit with two inputs
• Setting input A to 1 means set output to 1
• Setting input B to 1 means set output to 0

Input A
output
Input B
17
Simple Flip-Flop The Problem

• If both inputs change simultaneously, the final
  state of the latch cannot be determined ahead of
  time. This is called
• A Race Condition the result depends on which
  input got changed first.
• Nondeterministic Not being able to predict what
  will happen with certainty.
• Nondeterminism is very, very bad from the
  perspective of computer science (most of the
  time).

18
Clocked D Latch
Solves the problem Clock line allows the
system to control when to read the inputs. BUT
only allows for one input.
Image from http//www.play-hookey.com/digital/
19
The clock

• CPS (cycles per second)
• The measure of how frequently an alternating
  current changes direction.
• This term has been replaced by the term hertz
  (Hz).
• gigahertz (GHz)
• A unit of frequency denoting 109 Hz.

20
Memory

• We represent data as 0s and 1s (bits)
• 8 bits in a byte
• 2 to 4 bytes in a word
• Words represented schematically as rows in memory
• Each word has
• High order bit (most significant bit)
• Low order bit (least significant bit)
• We also represent locations as 0s and 1s
• These locations are called addresses
• Nice picture in the textbook

21
RAM(Random Access Memory)

• One set of wires activates the appropriate
  location
• Another set of wires
• reads the data value from that location or
• writes the data value to that location
• RAM is arranged as a grid
• Each column is a word (or some number of bytes)
• First activate the correct column
• Then either
• Read the words values into the row output, or
• Write the rows values into the word
• Read get the value (dont change it)
• Write set the value (change it)

22
How DRAM Works
This example memory holds 8 bytes. Say we want to
change the contents of memory address number
0101 (which is the fifth one from the right)
First, activate the column that corresponds to
this address Converting 0101 to 00010000 requires
circuitry (not shown)
Image adapted from http//www.howstuffworks.com/ra
m.htm
23
How DRAM Works
Saw we want to set this memory addres to contain
the value 01001011 When two activated lines
cross, the cell at the intersection gets turned
on.
0 1 0 0 1 0 1 1
Image adapted from http//www.howstuffworks.com/ra
m.htm
24
How DRAM Works
Now weve set the value. Reading moves the data
the other direction, onto the row (a special
control wire, not shown, tells the circuit
whether to read or write).
Image adapted from http//www.howstuffworks.com/ra
m.htm
25
The CPU
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
26
Instructions and Their Representation
How many instructions can this setup support?
What is the largest memory address?
111111 1 2 4 8 16 32 63
1000000 64, so subtract 1
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
27
Instructions and Their Representation
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
28
The CPU
Bus bundles of wires connecting
things. Instruction Register holds
instructions. Program Counter points to the
current memory location of the executing
program. Decoder uses the 3-bit opcode to
control the MUX and the ALU and the memory
buses. MUX multiplexer chose 1 out of N
ALU adds, subtracts two numbers Accumulator
stores ALUs output RAM stores the code
(instructions) and the data.
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
29
Machine code to add two numbers that are stored
in memory (locations 13 and 14) and then store
the result into memory (location 15).
The Program Counter starts at memory location 0.
Image adapted from http//courses.cs.vt.edu/cson
line/MachineArchitecture/Lessons/
30
The Program Counter starts at memory location
0. (Notice the instructions and the data are
both stored in the RAM.) This instruction moves
along the bus into the instruction register. The
decoder checks the number bit to see how to
handle the opcode.
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
31
If the opcode number bit 0, we want the operand
to be used as a memory address. So the decoder
switches the MUX to connect the operand to the
RAM. If the bit were 1, the MUX would connect
the operand to the ALU. The green wires do the
addressing of the RAM. The blue wires do the
reading to and writing from the RAM.
Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
32
The Decoder tells the ALU this is a LOAD
instruction. The memory location 13 is
activated, and its value placed on the blue bus.
This goes through the multiplexer into the ALU.
It also trickles down into the Accumulator (Load
is implemented as an ADD value to 0). The last
step (always, except for a jump) is for the
Program Counter to get incremented. Now it
points to memory location 1.

Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
33
Instruction ADD 14 Similar to Load 13, except
the ALU is given the ADD operation. The contents
of the Accumulator becomes the lefthand operand,
and the contents of memory becomes the righthand
operand. Results of the AND end up in the
Accumulator. The Program Counter increments.

Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
34
Instruction STORE 15 Memory address 15 is
activated via the green bus. The contents of the
Accumlator are written to RAM using the blue
bus. The Program Counter increments. The next
instruction is HALT.

Images from http//courses.cs.vt.edu/csonline/Mac
hineArchitecture/Lessons/
35
CPU Performance

• CPU cycles are not the whole story
• The number of INSTRUCTIONS per second play a big
  role.
• Each operation on the computer requires some
  instructions
• e.g., about 6 instructions required for the loop
  part of a simple for-loop.
• Each instruction takes some number of cycles to
  execute.
• So a CPU with an instruction set and circuit
  design that requires fewer cycles to get
  operations done might have better performance
  than a CPU with a faster clock but more
  complicated circuitry.
