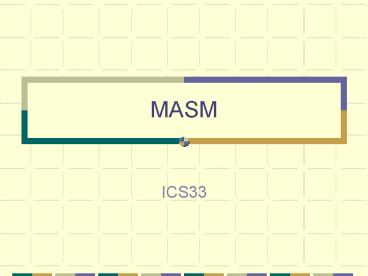

MASM

1
MASM

• ICS33

2
MASM

• Assembly language is architecture dependent. That
  means that from one system to the next there is a
  different assembly language. We will be doing
  intel based assembly language. That includes
  athlons and cyrix chips if you were wondering.

3
VARIABLES

• Variables are a little different than in other
  languages. In assembly language the computer
  doesn't care if it is a number, character, or
  string. It only cares about the size of the
  variable. The sizes include db, dw, and dd which
  stand for define byte, word, and double. A byte
  is 8 bits and can hold a number up to 256, a word
  is 16 bits and can hold a number up to about
  32000, a double is 32 bits and can hold a number
  up to about 65000. To create a variable the
  format is name size value. Here are some
  examples.

4
Variables

• number dw 267
• aLetter db 'F'
• aString db "Hello World"
• noValue db ?
• The last one is uninitialized.

5
Basic Commands

• mov
• The command you will probably use the most is
  mov. It basically moves the source into the
  destination. The syntax is as follows mov
  dest,source. There are a few rules you must
  follow. For instance the destination can not be
  an immediate value. Also you can not move a
  variable into another variable. One thing to note
  is that the source is not affected by the mov
  operation. It is more of a copy than a move.

6
Basic Commands

• Arithmetic Commands
• The add command will add the source to the
  destination. The syntax is add dest,source. The
  sub command has the same syntax but it subtracts
  the source from the destination. Both of these
  commands follow the same rules about having the
  destination and source being variables. The inc
  and dec will increment and decrement respectively
  the operand given. The mul command takes only one
  operand and it multiplies it by whatever is in
  eax,ax,or al depending on the size of the
  operand.

7
Basic Command

• The operand can not be an immediate value. The
  answer is put in ax. The div operation also takes
  just one operand which it divides into ax and
  puts the answer into al and the remainder into
  ah.

8
Basic Commands

• Shift
• The shl and shr operations will move the bits of
  the first operand to the number of times in the
  second operand. One cool use of this is for
  multiplication and division. The shl and shr are
  much faster than the mul and div operations. The
  shl function will multiply the first operand by
  2second operand. The shr is the same but it
  divides.

9
Loops and Conditions

• Loops
• Loops are pretty easy in assembly language. The
  first thing you want to do is to move into cx the
  number of times you want to loop. Then you create
  a label which can be called anything followed by
  a colon. Then you put all your code. When you
  want to loop, put loop then the name of the label
  you made without the colon. Here is an example.

10
Loops

• mov cx,9
• nameLabel2
• inc si
• inc di
• loop nameLabel2
• This code will increment si and di nine times.

11
Conditional Loops

• Before you do any conditions you need to do a cmp
  operation. It compares the first to the second
  operand then sets some flags that you can use to
  determine the relation between the two. Then you
  can use operations like je, jne, jle, jg. They
  are short for jump equal, not equal, less than or
  equal, and greater than. If the condition is true
  it will jump to the operand you supplied. Here is
  an example.

12
Conditional Loops

• mov cx,9
• nameLabel2
• cmp si,di
• je anotherLabel
• inc si
• dec di
• loop nameLabel2
• anotherLabel

13
Conditional Loops

• Here is an example of an if then else statement.
• cmp bx,9
• je label1
• mov ax,5
• jmp endLabel
• label1
• mov ax,4
• endLabel

14

• One thing that is different is that is backwards.
  The else part is first then the then part comes
  next.

15
While Loop

• A while loop is done like this.
• label1
• cmp bx,4
• je label2
• inc bx
• loop label1
• label2
• This while loop will continue until bx is equal
  to 4.

16
Nested Loops

• This would be a good time to learn how to use the
  stack. Here is an example of a nested loop.

17
Nested Loops

• mov cx,5
• nameLabel
• push cx
• mov cx,9
• nameLabel2
• mov ax,0
• mov ax,si
• mov di,ax
• inc si
• inc di
• loop nameLabel2
• add di,23
• pop cx
• loop nameLabel

18
Nested Loops

• As you can see we have two loops. The problem is
  that both of these loops use cx as their counter.
  To remedy this when we enter the loop we push the
  value of cx onto the stack and then when the
  inner loop is done we pop the top of the stack
  into cx.

19
Arrays

• Here are some examples of different kinds of
  arrays.
• someStrings db "hello world","hello 2 ","hello 3
  ",0
• The first variable is an array of strings. One
  thing you should do is make all the strings the
  same length. It makes it a lot easier to use
  them.

20
Arrays

• someNumbers dw 10 dup(?)
• The second variable uses the dup command to make
  ten empty locations which you can set later on.
  You can put a number in those parentheses and it
  will put that number in each location.

21
Arrays

• moreNumbers dw 2,1,2,5,5,6,3,2
• The third variable is just an array of numbers.
  Each number needs to separated by a comma.

22
Arrays

• someChars db 'adsf',0
• The last variable is an array of characters.

23
Arrays

• To use these arrays you must load the offset of
  one of them into a register. Here is an example.
• mov si,offset someStrings
• Once the offset is in the register you can access
  the values like this.
• mov ax,si
• That will put whatever is in the first position
  of si which would be the letter h not the whole
  string because a string is an array itself. To
  get to the next character do this.
• inc si

24
Procedures and Macros

• Procedures and macros are very similar to
  functions in c. They can be used to make
  repetitive tasks easier.

25
Procedures

• Procedures
• Do you remember the main proc that is in every
  program, well that is a procedure. A procedure
  can be created by giving it a name then putting
  proc after it. Put your code there. Then end it
  with a ret, then the name you chose then endp.
  You should put all this outside of the main
  procedure.

26
Procedures

• Procedures
• To use this procedure you use the call command
  and then the name of the procedure. Here is an
  example
• .code
• main proc
• mov ax,_at_data
• mov ds,ax
• call myProc
• mov ax,4c00h
• int 21h
• main endp
• myProc proc
• inc bx
• ret
• myProc endp

27
Procedures

• This is how it works. When the procedure is
  called it goes down to the location of the
  procedure. It does it stuff then ret is called
  and it returns to where it was in main.

28
MACRO

• A macro is very similar syntactically but it's
  inner workings is different. First it can be
  passed a parameter. Second instead of the program
  going to where the macro is located it pastes a
  copy of it into the program wherever it is
  called. For this reason it is not a good idea to
  use a macro in a loop. Here is an example of a
  macro.

29
MACRO

• .code
• main proc
• mov ax,_at_data
• mov ds,ax
• aMacro 100
• mov ax,4c00h
• int 21h
• main endp
• aMacro macro theParameter
• mov ax,theParameter
• endm

30
MACRO

• This macro is passed the value 100 and the macro
  puts that into ax.
